Pentax IPFC-Serie Betriebsanleitung Seite 7

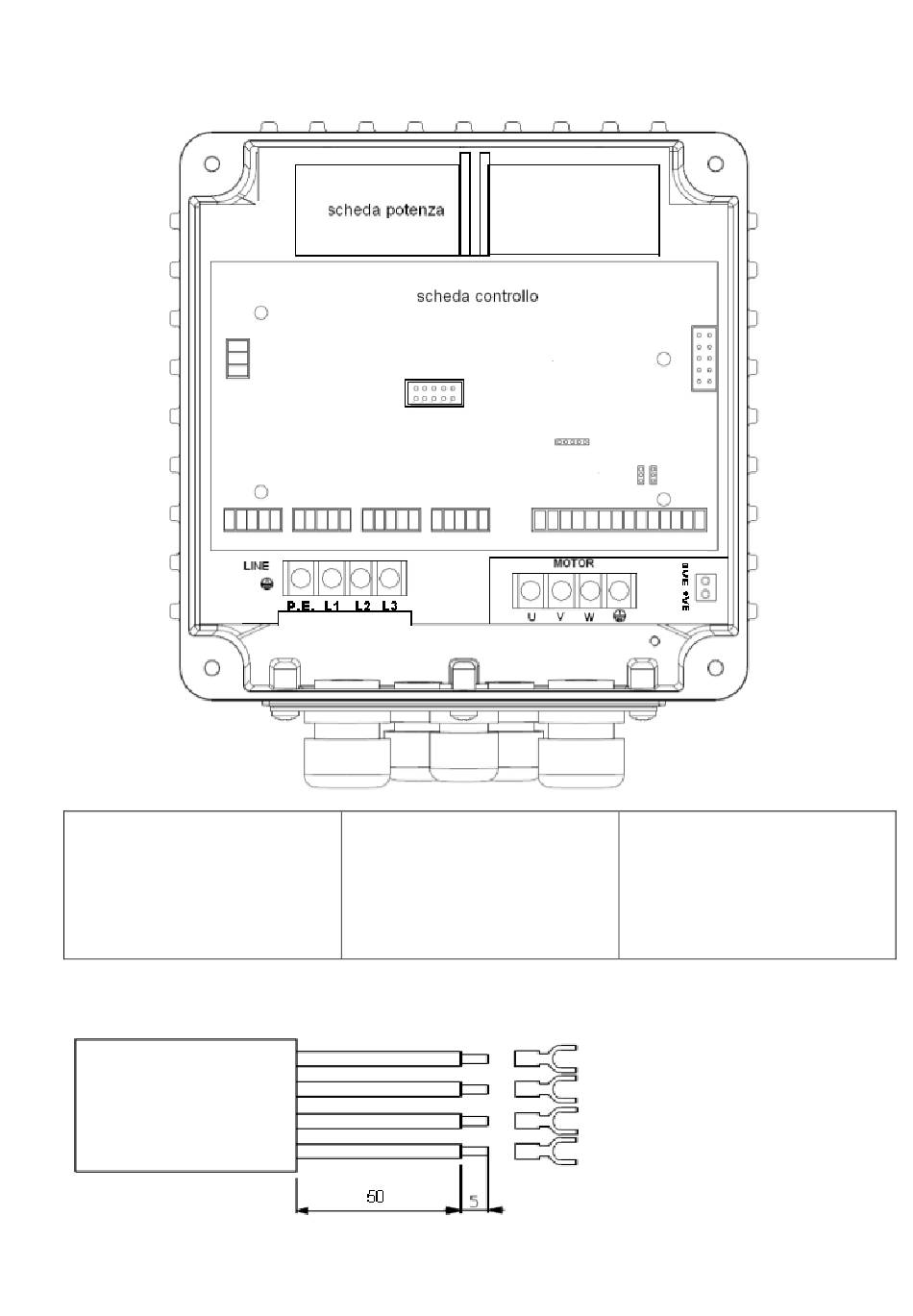

Power board IPFC 306,309
Power supply:
LINE: GND , L1, L2, L3,
It is recommended to use cable
lugs.
Cable stripping recommended for line input and output to the motor.
Motor output:
MOTOR: U, V, W, GND
It is recommended to use cable
lugs.
12 V dc auxiliary fan (wall
mounting kit) :
0VE, + VE
WARNING: respect the polarity.
