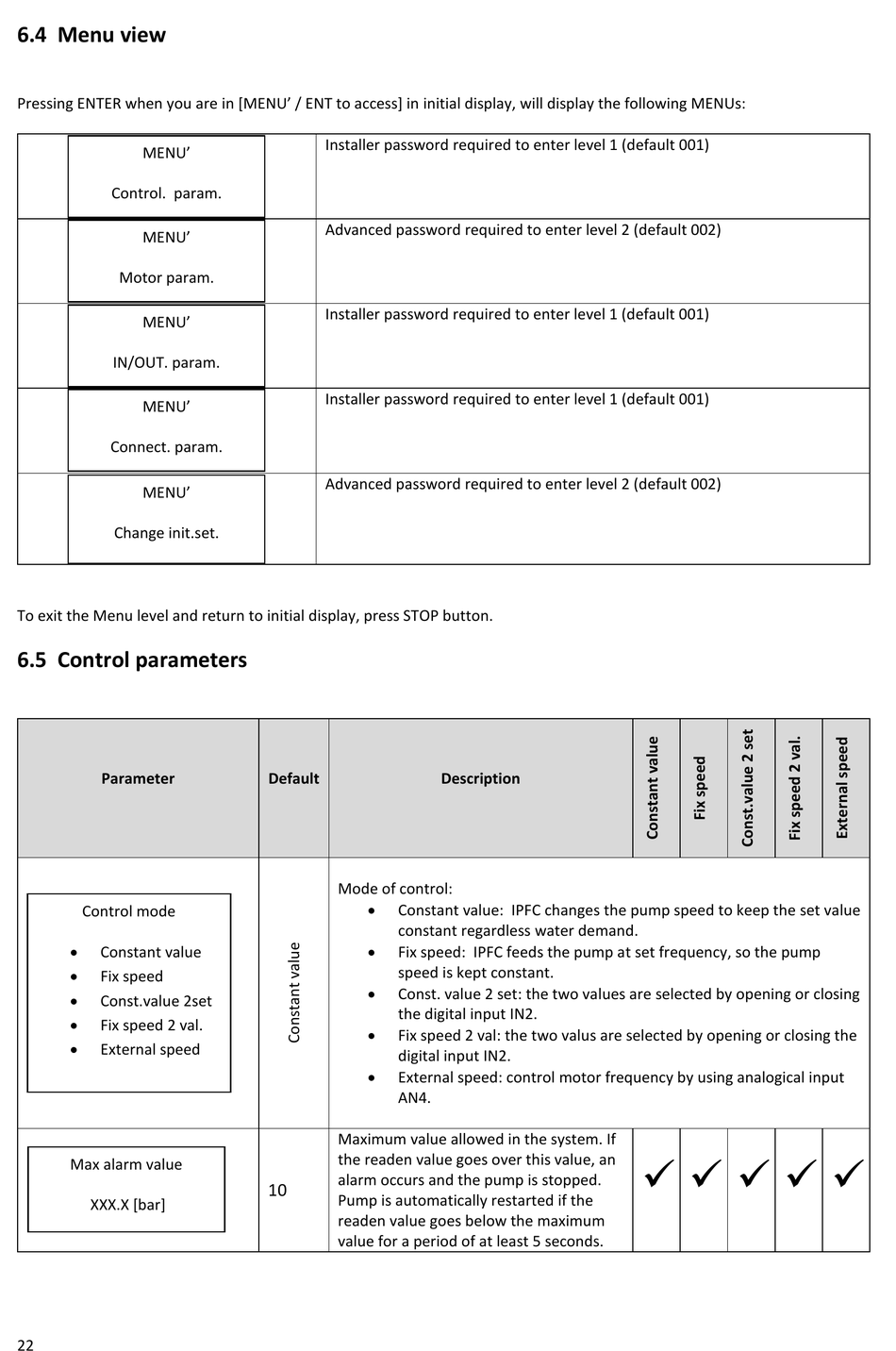

6.4 Menu view

Pressing ENTER when you are in [MENU' / ENT to access] in initial display, will display the following MENUs:
MENU'
Control. param.
MENU'
Motor param.
MENU'
IN/OUT. param.
MENU'
Connect. param.
MENU'
Change init.set.
To exit the Menu level and return to initial display, press STOP button.

6.5 Control parameters

Parameter
Control mode

Constant value

Fix speed

Const.value 2set

Fix speed 2 val.

External speed
Max alarm value
XXX.X [bar]
22
Installer password required to enter level 1 (default 001)
Advanced password required to enter level 2 (default 002)
Installer password required to enter level 1 (default 001)
Installer password required to enter level 1 (default 001)
Advanced password required to enter level 2 (default 002)
Default Description
Mode of control:

Constant value: IPFC changes the pump speed to keep the set value
constant regardless water demand.

Fix speed: IPFC feeds the pump at set frequency, so the pump
speed is kept constant.

Const. value 2 set: the two values are selected by opening or closing
the digital input IN2.

Fix speed 2 val: the two valus are selected by opening or closing the
digital input IN2.

External speed: control motor frequency by using analogical input
AN4.
Maximum value allowed in the system. If
the readen value goes over this value, an
alarm occurs and the pump is stopped.
10
Pump is automatically restarted if the
readen value goes below the maximum
value for a period of at least 5 seconds.
    
