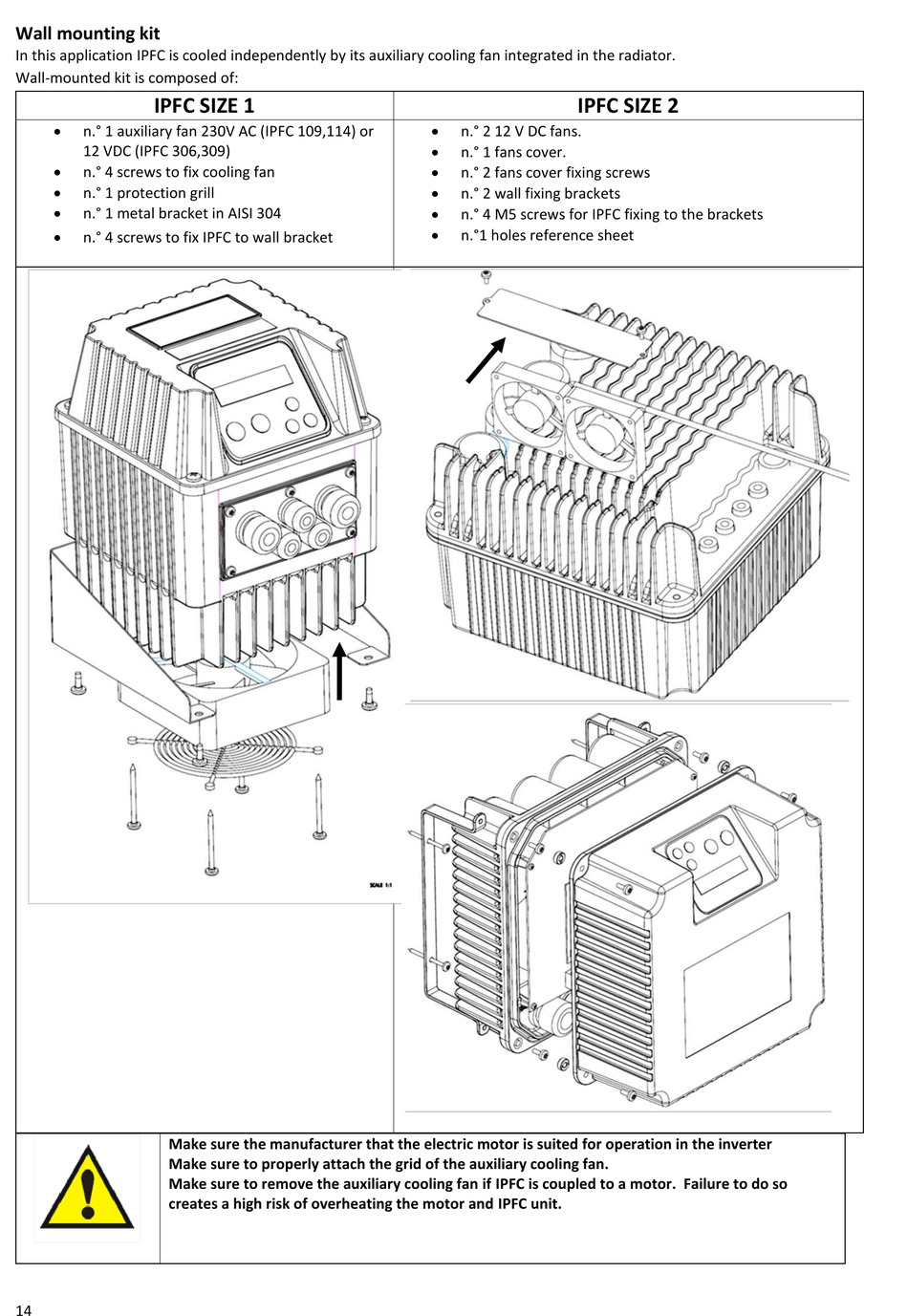

Wall mounting kit
In this application IPFC is cooled independently by its auxiliary cooling fan integrated in the radiator.
Wall-mounted kit is composed of:
IPFC SIZE 1

n.° 1 auxiliary fan 230V AC (IPFC 109,114) or
12 VDC (IPFC 306,309)

n.° 4 screws to fix cooling fan

n.° 1 protection grill

n.° 1 metal bracket in AISI 304

n.° 4 screws to fix IPFC to wall bracket
Make sure the manufacturer that the electric motor is suited for operation in the inverter
Make sure to properly attach the grid of the auxiliary cooling fan.
Make sure to remove the auxiliary cooling fan if IPFC is coupled to a motor. Failure to do so
creates a high risk of overheating the motor and IPFC unit.
14
IPFC SIZE 2

n.° 2 12 V DC fans.

n.° 1 fans cover.

n.° 2 fans cover fixing screws

n.° 2 wall fixing brackets

n.° 4 M5 screws for IPFC fixing to the brackets

n.°1 holes reference sheet
