Auto-Empty Dock
A12
A12-1—Filter Cover
A12-2—Rear HEPA Filter
A12-3—Front Filter
A12-4— Base
A12-5— Dock
A12-6—Status Indicator Light
• Steady white: Standby.
• Flashing white : Emptying.
• Steady red: Malfunction.
• Light off: Charging, not powered
on, or malfunction for more than
10 minutes.
A12-7—Dock Location Beacon
A12-8—Charging Contacts
A12-9—Suction Inlet
A12-10—Electrode Brushes
Dustbin
A13
A13-1—Dustbin Handle
A13-2—Air Outlet
A13-3—Cyclone Separator
A13-4—Dustbin Opener
A13-5—Dustbin Opening
Power Cable Storage
A14
A14-1—Power Cable Storage Slot
A14-2—Cable Outlet
A14-3—Power Port
Note: Power cable can be pulled out at both sides.

Installation

B
Important Information
008

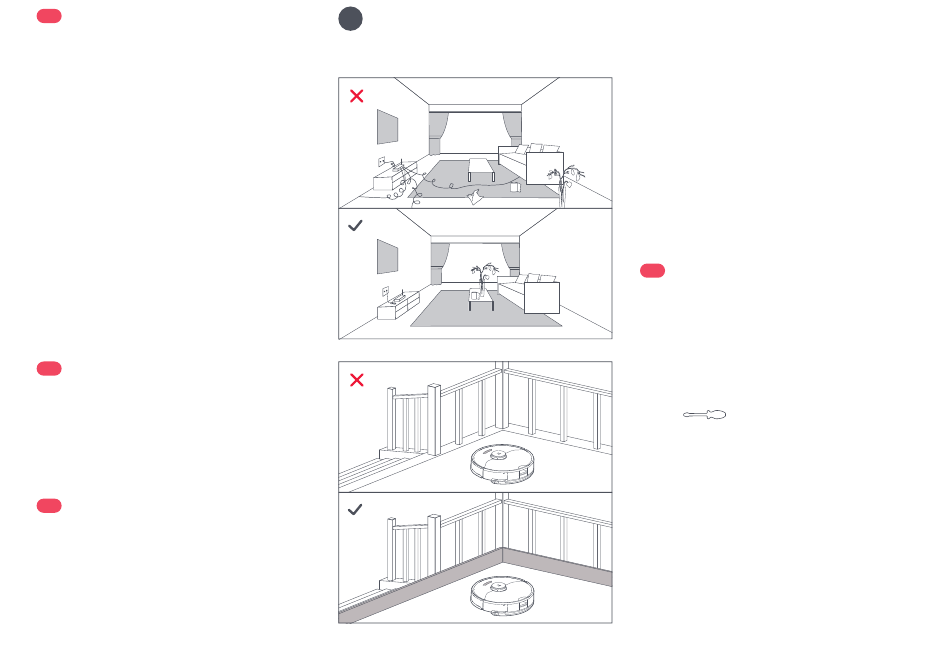

1. Tidy cables and loose items from the
ground and move any unstable, fragile,
precious, or dangerous items to prevent
personal injury or property damage due
to items becoming tangled in, struck by,
or knocked over by the robot.
2. When using the robot in a raised area,
always use a secure physical barrier to
prevent accidental falls that may result in
personal injury or property damage.
Note: When using the robot for the first time, follow it
throughout its whole cleaning route and watch for potential
problems. The robot will be able to clean by itself in future uses.
Position the charging dock
B1
B1-1— Take the screwdriver from its storage
bin at the bottom of the base.
B1-2— Place dock upside down on a soft,
flat surface (carpet/towel/ cloth) and
attach the base by screwing in five
screws in the areas marked with a
, as shown.
B1-3— Connect the power cable to the
dock, and keep excess cable inside
the storage slot.
B1-4— Place the dock on a hard and flat
floor (wood/tile/concrete etc.). Keep
at least 0.5 m (1.6 ft) of clearance on
either side, 1.5 m (5 ft) in front, and
1 m (3 ft) above. Check the location
has good WiFi then turn on.
