Safety Precautions; Product Description - Konig Electronic SEC-TRANS60 Anleitung

Size:
Max. resolution:
SD card:
Video frame rate:
Recording frame rate:
Video resolution:
Video format:
USB:
Menu language:
Video output level:
Audio output level:
Audio/video output connector:
Range:
Operating temperature:
Voltage:
Dimensions:
Weight:

Safety precautions:

• Do not open the camera or monitor in the event of a malfunction. These products should only be opened by a qualified
engineer.
• Do not submerge the camera in liquid.
• Do not expose the monitor to water or humidity.
• Do not expose the monitor or camera to high temperatures (see technical specifications).
• Do not install the system close to strong magnetic fields, such as a speaker. This may affect the quality.

Product description:

Camera:
7" TFT/LCD
800 RGB (H)* 480 (V) pixels
up to 32 GB (not included)
25 fps (max.) 10 fps (4x cameras)
25 fps per channel
CIF/VGA
AVI
2.0
English, German, French and Dutch
1 Vp-p/75 Ohm
2Vrms@600ohm mono
2.5mm jack (2.5mm cable to 3 x RCA included)
Indoor ±50 m, open area ±150 m (depending on local conditions)
0°C to +40°C
5 V DC/650 mA
214x157x26 mm
488 g

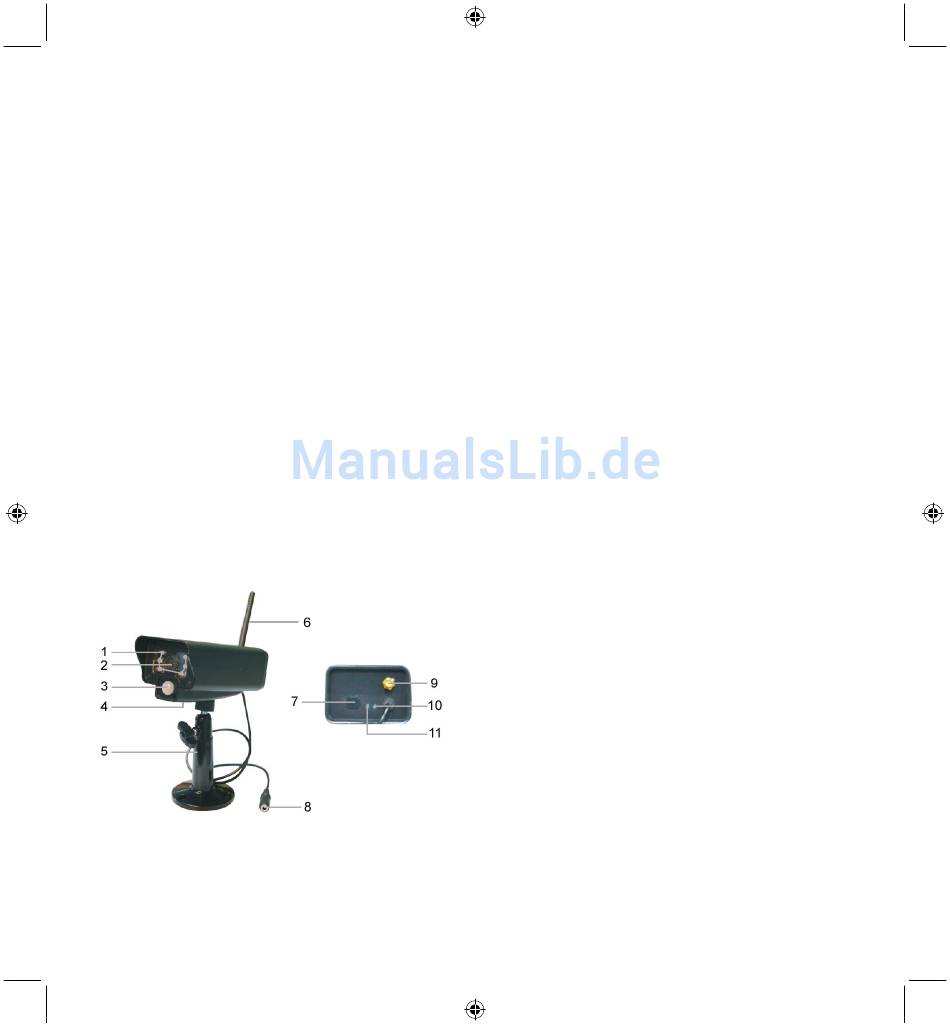

1. Infrared LEDs
2. Lens
3. PIR infrared sensor
4. Microphone
5. Bracket
6. Antenna
7. Pair Button
8. Power Input
9. Antenna Socket
10. Link Indicator
11. Power Indicator
3
