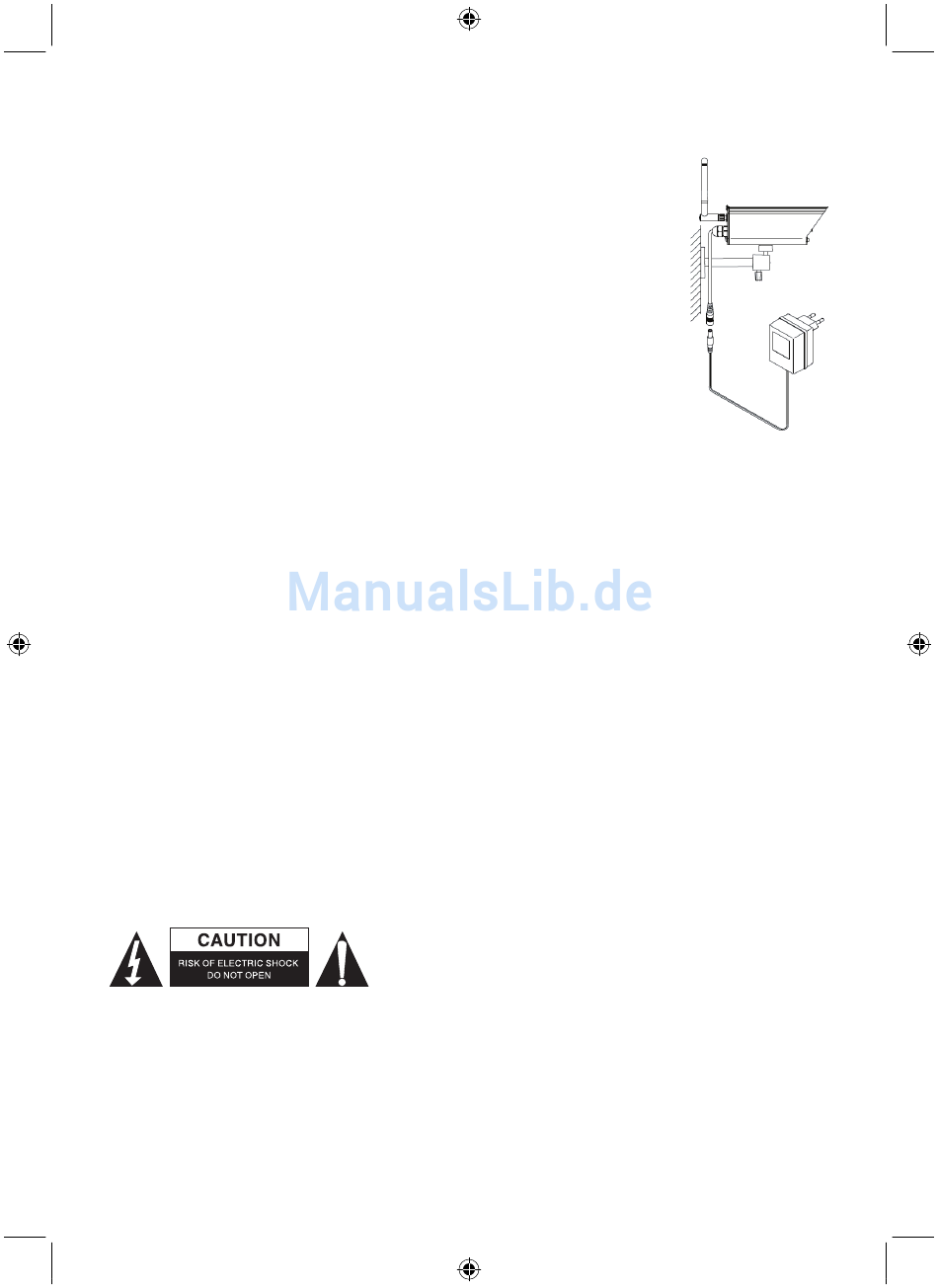

Installing the camera:

1. The camera can be mounted to a wall. Fix the antenna to the antenna
connector. Monitor reception should be tested before mounting the camera.
If interference or other problems occur, select another channel or different
location to mount the camera.
2. Connect the 9V/400mA, AC/DC adapter to the DC power plug and a 230V
wall outlet. The camera is switched on automatically.

Installing the receiver:

1. Connect the receiver's AV OUTPUT with the AV cable to the input of a
monitor or TV
2. Fix the antenna to the antenna connector
3. Connect the plug of the 7.5V/300mA, AC/DC adapter to the DC power input
and a 230V wall outlet
4. Select the desired channel on both the camera and the receiver. For
optimum performance, it could be necessary to point the transmitter and
receiver to each other in an imaginary straight line. A few centimeters could
already be enough to improve the sound and picture quality. If the reception is perfect, no
adjustments are necessary.
5. Turn on the TV or monitor to watch the images of the camera.
Option: connect a recording device for recording images to the REC output

Specifications:

Camera:
• Operating frequency:
• Image chip:
• Channels:
• Antenna:
• Power:
• Dimensions:
• Weight:
Receiver:
• Operating frequency:
• Channels:
• Output:
• Antenna:
• Power:
• Dimensions:
• Weight:

Safety precautions:

Maintenance:
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modifications of the product or damage
caused due to incorrect use of this product.
5.8 GHz
1/4" CMOS
4 with PLL frequency synthesizer
Omni directional
9V DC/400 mA
90x63x65 mm
230 g
5.8 GHz
4 with PLL frequency synthesizer
2x 3.5mm
Omni directional
7.5V DC/300 mA
90x74x20 mm
110 g
To reduce risk of electric shock, this product should ONLY be
opened by an authorized technician when service is required.
Disconnect the product from mains and other equipment if a
problem should occur. Do not expose the product to water or
moisture.
