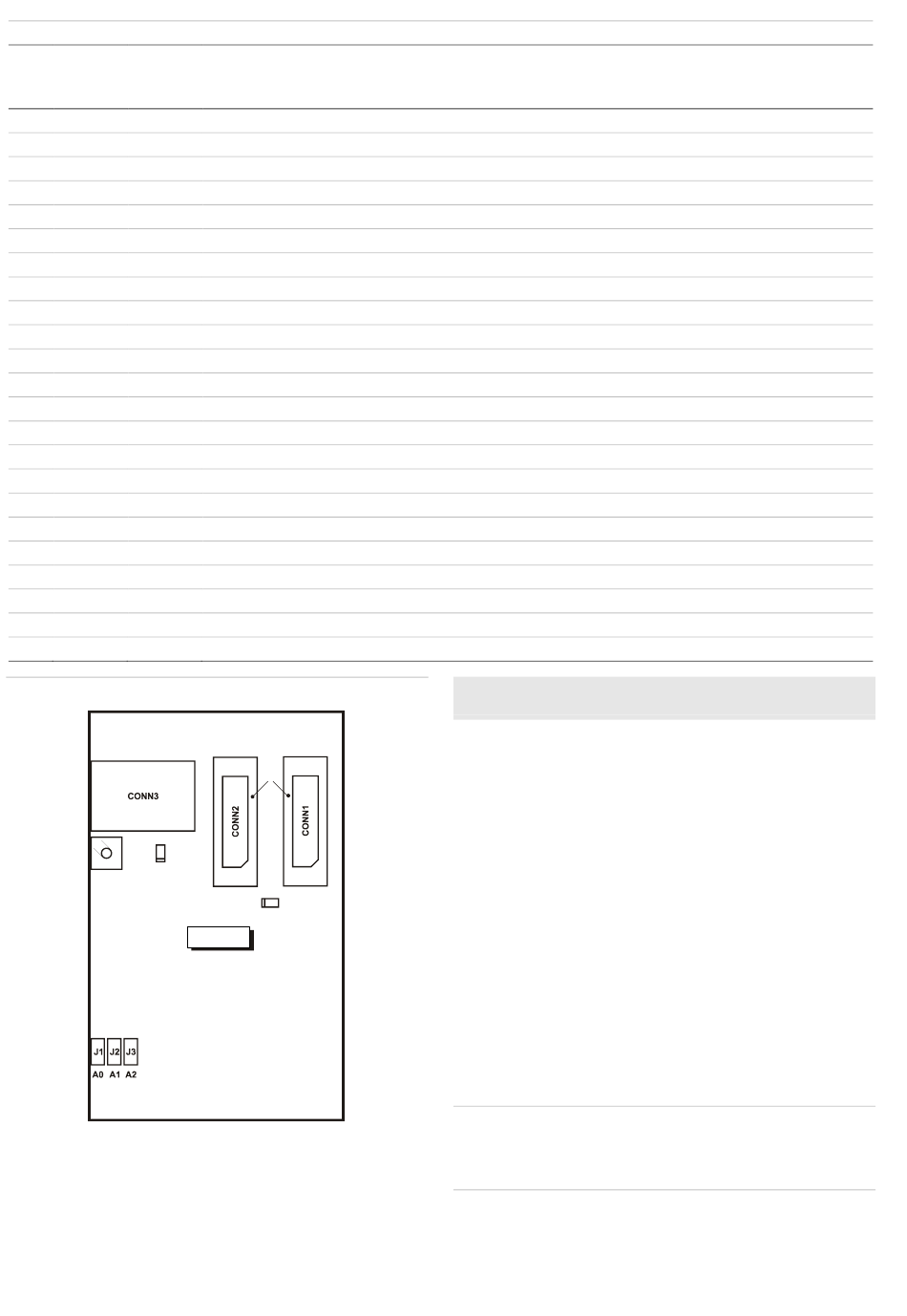

5
M# M#
ATS7200 ATS7200
1 2
—
LM
—
AM
RC 1
RC 2
RC 3
RC 4
RC 5
RC 6
RC 7
RC 8
RC 9
RC 10
RC 11
RC 12
RC 13
RC 14
RC 15
RC 16
RC 17
RC 18
RC 19
RC 20
RC 21
6
(1)
(3)
(4)
(6)
2 / 32
RM
(2)
(5)
ATS7200E
EN: Installation Sheet
Description
ATS7200E enables event reporting by playing back recorded
messages to 1, 2, 3 or 4 different reporting sites (Central
Stations). Voice reporting takes place via the built-in dialler of
the control panel (PSTN) or via the optional ISDN module.
Single and multiple voice module messages
A maximum of 2 voice reporting modules can be installed.
There are 8 messages per module; the leader message, the
address message and 6 alarm messages. If a second module
is installed, all 8 messages for the second module will be alarm
messages (see Table 2 on page 3).

Mounting location

The ATS7200E must be mounted inside ATS panel housing.
WARNING: Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.
P/N 466-2983 (ML) • REV A • ISS 06AUG18
