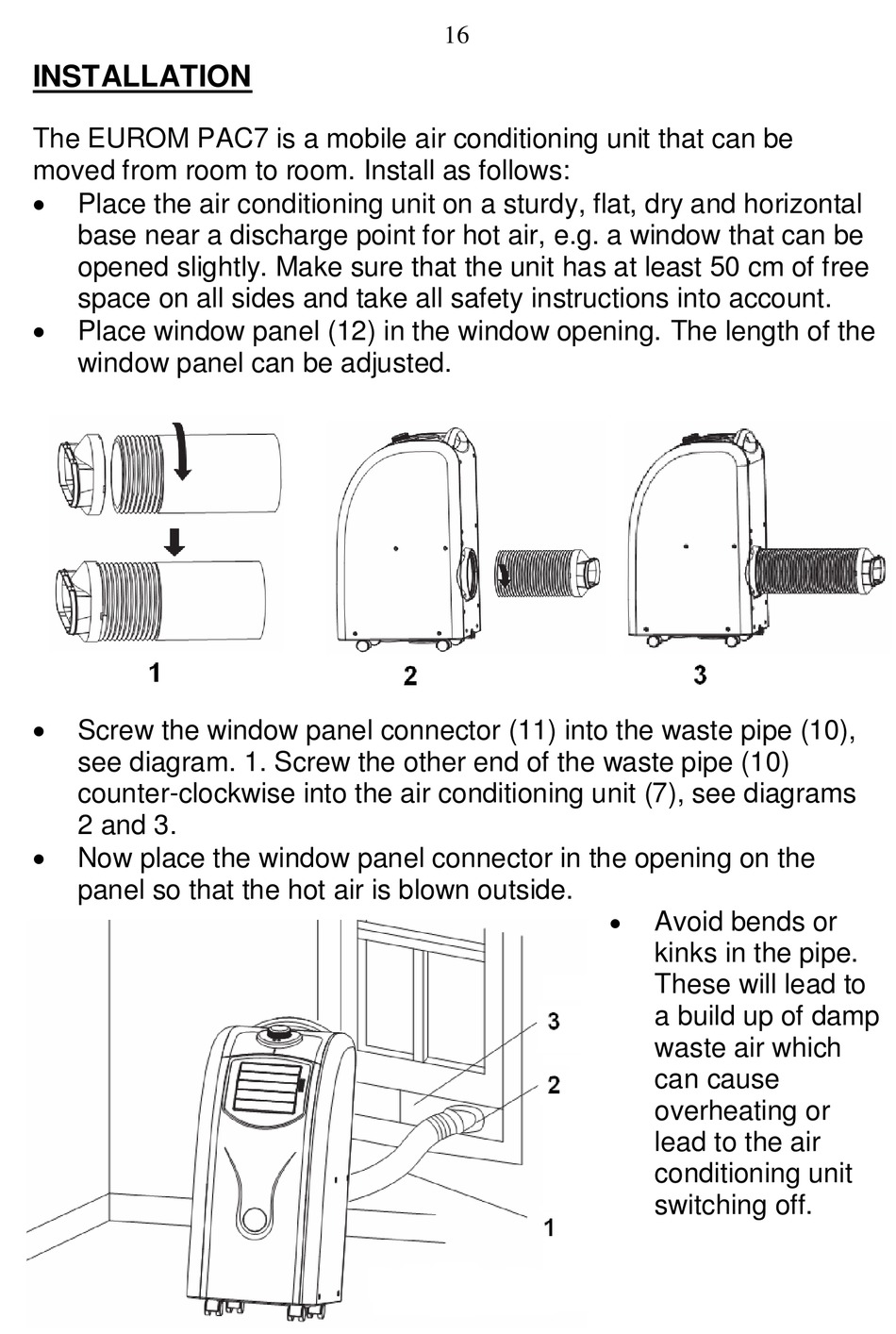

INSTALLATION

The EUROM PAC7 is a mobile air conditioning unit that can be
moved from room to room. Install as follows:

Place the air conditioning unit on a sturdy, flat, dry and horizontal
base near a discharge point for hot air, e.g. a window that can be
opened slightly. Make sure that the unit has at least 50 cm of free
space on all sides and take all safety instructions into account.

Place window panel (12) in the window opening. The length of the
window panel can be adjusted.

Screw the window panel connector (11) into the waste pipe (10),
see diagram. 1. Screw the other end of the waste pipe (10)
counter-clockwise into the air conditioning unit (7), see diagrams
2 and 3.

Now place the window panel connector in the opening on the
panel so that the hot air is blown outside.
16

Avoid bends or
kinks in the pipe.
These will lead to
a build up of damp
waste air which
can cause
overheating or
lead to the air
conditioning unit
switching off.
