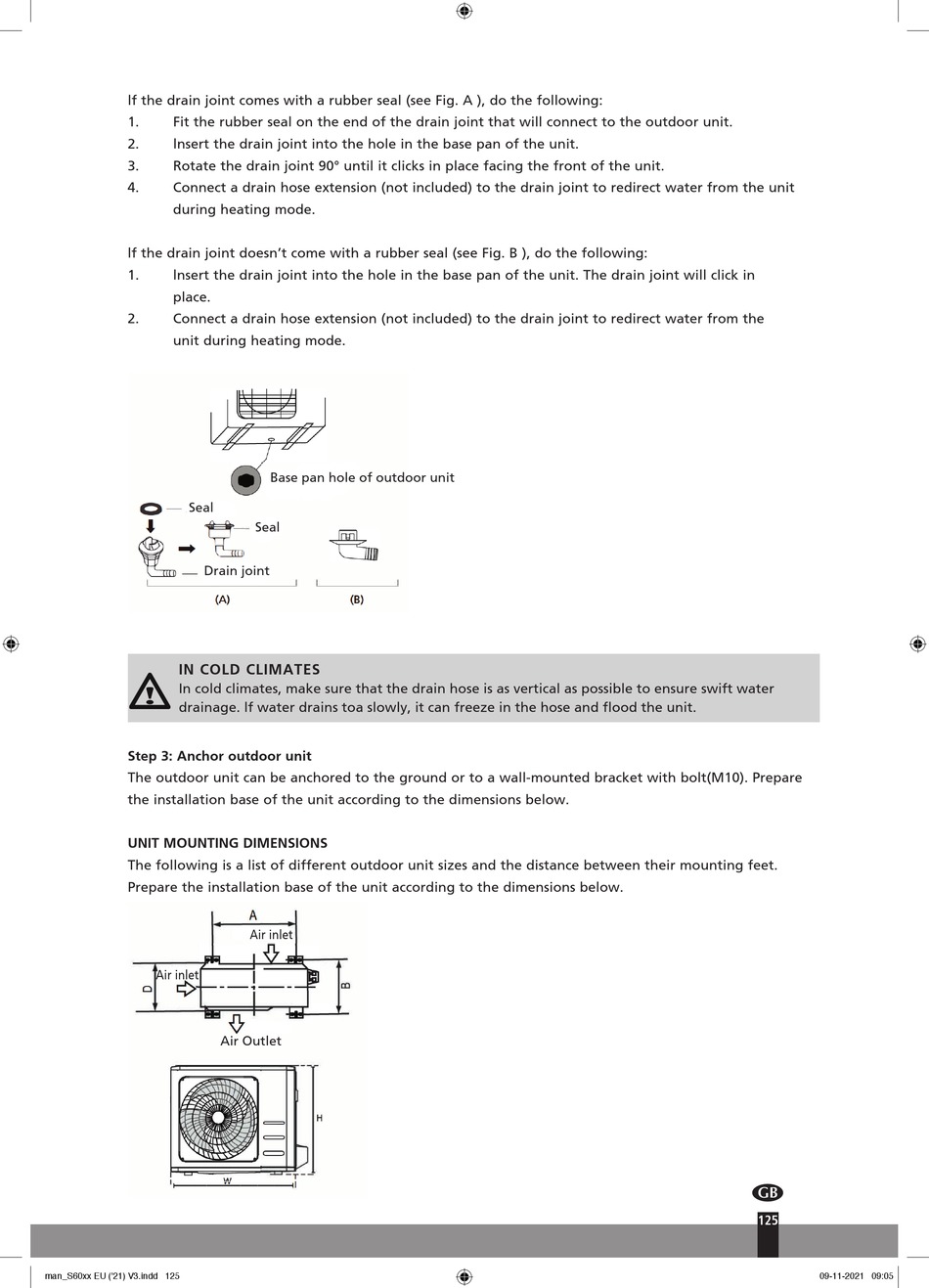

lf the drain joint comes with a rubber seal (see Fig. A ), do the following:
1. Fit the rubber seal on the end of the drain joint that will connect to the outdoor unit.
2. lnsert the drain joint into the hole in the base pan of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the front of the unit.
4. Connect a drain hose extension (not included) to the drain joint to redirect water from the unit
during heating mode.
lf the drain joint doesn't come with a rubber seal (see Fig. B ), do the following:
1. lnsert the drain joint into the hole in the base pan of the unit. The drain joint will click in
place.
2. Connect a drain hose extension (not included) to the drain joint to redirect water from the
unit during heating mode.
Seal
Drain joint

IN COLD CLIMATES

In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water
drainage. lf water drains toa slowly, it can freeze in the hose and flood the unit.
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the ground or to a wall-mounted bracket with bolt(M10). Prepare
the installation base of the unit according to the dimensions below.
UNIT MOUNTING DIMENSIONS
The following is a list of different outdoor unit sizes and the distance between their mounting feet.
Prepare the installation base of the unit according to the dimensions below.
Air inlet
Air Outlet
man_S60xx EU ('21) V3.indd 125 man_S60xx EU ('21) V3.indd 125
Base pan hole of outdoor unit
Seal
Air inlet
4
125
