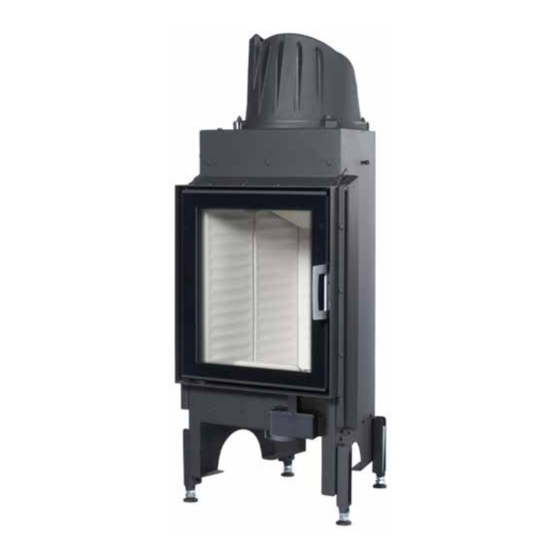

– … kleine Heizleistung 4. Verbrennungsluftklappe Fig. 3: Türverschluss - Klapptür Entriegeln: Verschluss nach außen drücken. Türrahmen wird entriegelt. Tür kann ausgeschwenkt werden. Verriegeln: Bei geöffneter Türstellung (Öffnungswinkel > 20°) Klappgriff loslassen. Türrahmen schließt von selbst und das Gerät ist betriebsbereit. www.austroflamm.com deutsch...
Holzaufgabemenge pro Stunde darf dabei jedoch nicht überschritten werden. • Die beim ersten Feuern auftretenden Gerüche entstehen durch das Ausdampfen von Blechfetten und Bindemitteln der Lackierung. Diese Dämpfe sind zwar unangenehm aber völlig ungiftig. Wir empfehlen Ihnen daher, beim ersten Feuern den Raum gut zu belüften. www.austroflamm.com deutsch...
Die zweite Auflage sollte ca. 45 Minuten nach der ersten aufgegeben werden. Weitere Holzaufgaben sind dann meist nicht mehr nötig. Möchten Sie die Anlage trotzdem weiter betreiben, müssen die Aufgabeintervalle verlängert und die Aufgabemenge reduziert werden (um 0,5 – 1 kg). www.austroflamm.com deutsch...
Heizgase werden über die Nachheizfläche geführt. Dies darf nur bei geschlossener Feuerraumtür erfolgen. 2.10 Betriebsweise Wir möchten an dieser Stelle gesondert darauf hinweisen, dass die Austroflamm-Kamineinsätze nur mit geschlossenen Türen zu betreiben sind. Bei geschlossener Betriebsweise wird der beste Wirkungsgrad und damit einhergehend die optimale Brennstoffausnutzung erreicht.
Arbeiten sollten durch den Ersteller der Anlage oder einen entsprechenden Fachbetrieb erledigt werden. Es empfiehlt sich hierfür der Abschluss eines Wartungsvertrages. • Der Schornstein muss ebenfalls regelmäßig durch den zuständigen Bezirksschornsteinfegermeister gereinigt werden. Über die notwendigen Intervalle gibt dieser Auskunft. www.austroflamm.com deutsch...
Funktion nicht mehr gegeben ist. Nur intakte Dichtungen gewährleisten die einwandfreie Funktion Ihres Kaminofens. 5 Platzierung der Typenschilder Typenschild Typenschild Bei allen anderen Geräten finden Sie das Bei 63x40x42K finden Sie das Typenschild hinter Typenschild unter Einlagestein/Gussrost der Keramottrückwand, auf der Scharnierseite. /Aschekasten im Feuerraum. www.austroflamm.com deutsch...
Ist der Schornsteinzug zu hoch? ... die Keramikgläser sehr rasch verrußen? • Ein allmähliches Verrußen der Scheiben nach 8 bis 10 Stunden Feuern ist normal. • Wurde trockenes, naturbelassenes Holz verwendet? • Wurde der Kamineinsatz auf Betriebstemperatur gebracht? www.austroflamm.com deutsch...
Feuerstätte nicht verändert werden darf. Bei jeglicher baulichen Änderung als auch bei nicht bestimmungsgemäßer Verwendung erlischt jeglicher Garantieanspruch! Für Ihren Austroflamm-Kamineinsatz garantieren wir für die einwandfreie Funktion des Korpus 6 Jahre, für alle weiteren Bauteile aus Stahl und Guss 2 Jahre ab dem Erstverkaufsdatum. Stahl- und Gussteile, die während der Garantiezeit Material- und/oder Verarbeitungsmängel aufweisen, werden gegen Neuteile ersetzt.
Seite 15
KAMINEINSÄTZE / KLAPP NOTIZEN / NOTES: www.austroflamm.com...
Seite 16
7 Procedure in the Event of Defects ............7 8 What to Do if ...? ..................7 9 Technical Information ................8 Model overview – fireplace inserts ................8 Technical Data ......................10 10 Warranty and Guarantee ............... 10 www.austroflamm.com english...
Press the catch outwards. The doorframe is unlocked. The door can be swung out. To lock: With door in open position (opening angle > 20°) release the hinged handle. Doorframe closes automatically and the device is ready for operation. www.austroflamm.com english...
The odours occurring when the fire is lit for the first time are caused by the evaporation of metal grease and paint binding agents. These vapours are unpleasant but completely non-toxic. We therefore recommend that you ventilate the room well when you light the fire for the first time. www.austroflamm.com english...
45 minutes after the first. In most cases, it is not necessary to add any more wood. If you still wish to continue operating the unit, the feeding intervals must be extended and the feeding quantity reduced (by 0.5 - 1 kg). www.austroflamm.com...
2.10 Operating mode We would like to point out here that the Austroflamm fireplace inserts may only be operated with closed doors. Greatest efficiency, and thus optimum fuel utilisation, is achieved when the doors are closed.
It is recommended that a maintenance contract be concluded to cover these services. • The chimney must also be cleaned regularly by the district chimney sweep. He will provide information on how frequently this should be scheduled. www.austroflamm.com english...
For all other appliances, you will find the type plate On 63x40x42K, you will find the type plate behind under the insert brick/cast iron grate /ash pan in the the Keramott rear panel, on the hinge side. firebox. www.austroflamm.com english...
... the ceramic glazing becomes sooty very quickly? • Gradual sooting of the panes after 8 to 10 hours of heating is normal. • Was dry, natural wood used? • Was the fireplace insert brought to operating temperature? www.austroflamm.com english...
We guarantee flawless operation of the body of your Austroflamm fireplace insert for 6 years. All other steel and cast iron components are guaranteed for 2 years from the date of first sale. Steel and cast iron parts that show material and/or processing defects during the warranty period will be replaced with new parts.
Seite 28
7 Procedura da seguire in caso di difetti ............. 7 8 Cosa fare se ....................7 9 Informazioni tecniche ................8 Panoramica dei modelli – monoblocchi ................ 8 Dati tecnici ......................... 10 10 Garanzia legale e commerciale ............... 10 www.austroflamm.com italiano...
Sbloccare: Premere la maniglia verso l‘esterno. L‘antina si sblocca e può essere aperta verso l‘esterno. Bloccare: Quando l’antina è aperta (angolo di apertura > 20°) rilasciare l‘impugnatura. L‘anta chiude autonomamente e il caminetto è pronto per il funzionamento. www.austroflamm.com italiano...
Durante la prima combustione, possono sprigionarsi odori derivati dall’evaporazione delle sostanze grasse contenute all’interno delle componenti in acciaio e dai collanti della verniciatura. Questi odori possono risultare sgradevoli, ma sono assolutamente innocui. È auspicabile aerare bene il locale quando si accende il monoblocco per la prima volta. www.austroflamm.com italiano...
La seconda carica dovrebbe essere eseguita ca. 45 minuti dopo la prima. Generalmente non sono necessari ulteriori carichi di legna. Se si desidera comunque continuare ad utilizzare il caminetto, occorrerà prolungare gli intervalli di alimentazione e ridurre le quantità di legna (di 0,5 – 1 kg). www.austroflamm.com italiano...
Ciò consente di ottenere il massimo rendimento e quindi di sfruttare in maniera ottimale il combustibile. Non tenere l’antina aperta durante il funzionamento degli monoblocchi Austroflamm -> pericolo di incendio! Non tenere l’antina aperta durante il funzionamento degli monoblocchi Austroflamm -> pericolo di incendio! www.austroflamm.com...
A questo riguardo si consiglia di stipulare un contratto di manutenzione. • Anche la canna fumaria dovrà essere pulita a intervalli regolari da uno spazzacamino abilitato. Quest’ultimo provvederà a comunicare gli intervalli di manutenzione e pulizia necessari. www.austroflamm.com italiano...
In tutti gli altri modelli la targhetta identificativa è collocata sotto l’elemento frontale in refrattario / Nel modello 63x40x42K la targhetta identificativa è griglia in ghisa / cassetto ceneri all’interno della collocata dietro la parete posteriore in keramott. camera di combustione. www.austroflamm.com italiano...
... i vetri ceramici si coprono molto velocemente di fuliggine? • Dopo 8-10 ore di riscaldamento, è normale che i vetri ceramici si coprano gradualmente di fuliggine. • È stata utilizzata legna secca e allo stato naturale? • Il monoblocco è stato portato a temperatura di esercizio? www.austroflamm.com italiano...
**) in ottemperanza con le normative tecniche vigenti in fase di studio I dispositivi Austroflamm contrassegnati con “idoneo secondo le regole tecniche” sono adatti per il funzionamento in impianti chiusi (ipocausto). ***) sul bocchettone del dispositivo con potenza termica nominale...
Seite 39
MONOBLOCCHI A LEGNA / A BATTENTE NOTIZEN / NOTES: www.austroflamm.com...
Seite 40
Conduite à tenir en cas d’incendie de cheminée ............7 7 Que faire en cas de problème ..............7 8 Que faire si ... ? ..................7 9 Informations techniques ................8 Vue d'ensemble des modèles de foyers............... 8 Données techniques ....................10 10 Garantie ....................10 www.austroflamm.com français...
Vous pouvez ouvrir la porte. Verrouiller : lorsque la porte est ouverte (angle d'ouverture > 20°), relâcher la poignée. Le cadre de la porte se referme alors automatiquement et l'appareil est opérationnel. www.austroflamm.com français...
Les odeurs perçues lors du premier feu proviennent de la combustion des vapeurs émanant des graisses sur la tôle et des liants de la peinture. Ces vapeurs sont certes désagréables mais ne sont absolument pas nocives. Nous vous recommandons de bien aérer la pièce pendant la première utilisation. www.austroflamm.com français...
Le second chargement doit s'effectuer environ 45 minutes après le premier. En principe, aucun chargement supplémentaire n'est plus nécessaire. Si vous souhaitez cependant continuer à entretenir le feu, espacez les chargements et réduisez la quantité de bois (d'env. 0,5 à 1 kg). www.austroflamm.com français...
2.10 Mode d'utilisation Nous tenons à souligner ici que les foyers Austroflamm ne doivent être utilisés qu'avec la porte fermée. Une utilisation porte fermée permet d'atteindre l'efficacité maximum de votre foyer et donc une valorisation optimale du combustible.
À cet effet, il est recommandé de conclure un contrat de maintenance. • Le conduit de cheminée doit également être ramoné régulièrement par un ramoneur local agréé. Celui-ci sera en mesure d'indiquer les intervalles de ramonage à respecter. www.austroflamm.com français...
Pour tous les autres appareils, la plaque La plaque signalétique du 63x40x42K se trouve sur signalétique se trouve dans le foyer, sous la plaque la paroi arrière, derrière la plaque en Keramott côté centrale / la grille en fonte / le cendrier. charnière. www.austroflamm.com français...
Il est normal que de la suie se dépose progressivement sur la vitre au bout de 8 à 10 heures de fonctionnement. • Le bois que vous avez utilisé est-il naturel et bien sec ? • Le foyer a-t-il été amené à température ? www.austroflamm.com français...
Hauteur du cadre de la porte [mm] Forme de la porte plane plane Largeur [mm] Profondeur [mm] Hauteur [mm] 1125-1325 1305-1505 Poids [kg] Puissance de chauffage nominale 10 kW 10 kW selon EN 180 180 Buse de sortie des fumées [mm] www.austroflamm.com français...
Seite 49
Largeur (bâti encastré) [mm] Hauteur du cadre de la porte [mm] Forme de la porte en angle 90° Largeur [mm] Profondeur [mm] Hauteur [mm] 1137-1337 Poids [kg] Puissance de chauffage nominale 8 kW selon EN 150 Buse de sortie des fumées [mm] www.austroflamm.com...
Hypokauste **) cf. Réglementations régionales et nationales. certification en cours les appareils Austroflamm portant la mention « conforme selon les règles de l'art » sont adaptés à une utilisation dans des installations en circuit fermé (hypocauste). ***) sur la buse de l'appareil, à puissance de chauffage nominale 10 Garantie L'installation et la mise en service par une entreprise spécialisée, au même titre que le respect des...
Seite 51
Im Garantiefall herausschneiden und Ihrem AUSTROFLAMM-Fachhändler vorlegen / In the event of claims to the guarantee, separate here and present this proof of purchase to your certified AUSTROFLAMM dealer / In caso di richiesta di garanzia, ritagliar e la cartolina e presentarla al rivenditore AUSTROFLAMM / En cas de recours à...
