Page EN-16 Operation
The (10) "Convenient zone" drawer in the
freezer can be removed to create more space
in the lower large drawer (9) in the freezer.
You will achieve the most efficient use of en-
ergy for your appliance if you combine the
drawers, glass shelves and door shelves as
shown in the figure on page EN-11.
1. To remove the glass shelf with bottle
rack (15) or the top glass shelf (16), lift
them slightly at the front and then pull them
out of the guide rail.
2. Place the glass shelves back into the de-
sired positions.

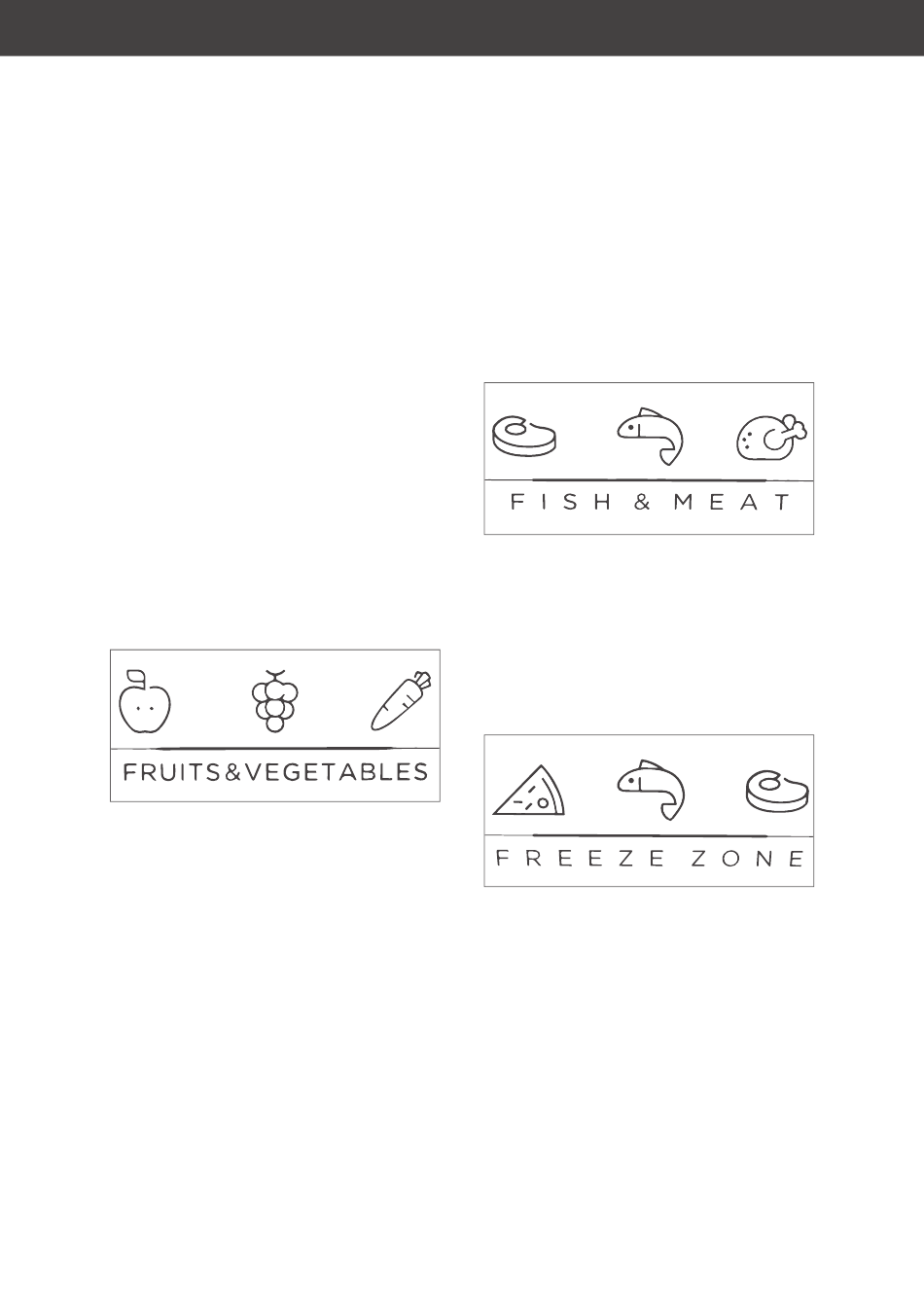

Pictograms

The following pictograms are displayed on
the fruit/vegetable drawer (13):
This means that you can store fresh fruit and
fresh vegetables in the fruit/vegetable draw-
er (13) (see "Chilling food" on page EN-17).
The following pictograms are displayed on
the fish/meat drawer (11):
This means that fresh meat, game, poultry or
raw fish can be stored in the fish/meat draw-
er (11) and are to be consumed as soon as
possible (see "Chilling food" on page EN-17).
The following pictograms are displayed on
the freezer drawers (8) and (9):
This means that you can store frozen goods
and food in the freezer drawers (8) and (9)
(see "Definitions" on page EN-3).
