AXIS Q6032/Q6034/Q6035 Installation Guide
Hard ceiling mount
1. Prepare the ceiling for installation of the mounting plate, use the supplied drill template to
position the holes. Make sure to use drill bits, screws and plugs that are appropriate for the
material.
2. Install the mounting plate. The arrow on the mounting plate will align with the logotype on the
camera.
3. Loosen the 3 camera base lid screws and remove the camera base lid, see illustration on page 7.
4. Secure the camera using the supplied safety wire.
5. Route and connect the network cable and the multi-connector cable, if applicable, to the
network camera. Be careful not to damage the cables when connecting them. Make sure the
foam gasket holes are aligned with the cable tracks and, if applicable, remove the cut-out piece
for the multi-connector cable from the foam gasket.
6. Put the camera base lid back in its original position and fasten the screws.
7. Slide the unit holders on the network camera into the slots on the mounting plate and rotate
the camera unit.
8. Install the High PoE Midspan 1-Port, see
13.
9. Check that the indicator LEDs on the midspan indicate the correct conditions, see the table on
page 24 for further details.
Install AXIS T8123 High PoE Midspan 1-port,
Page 9

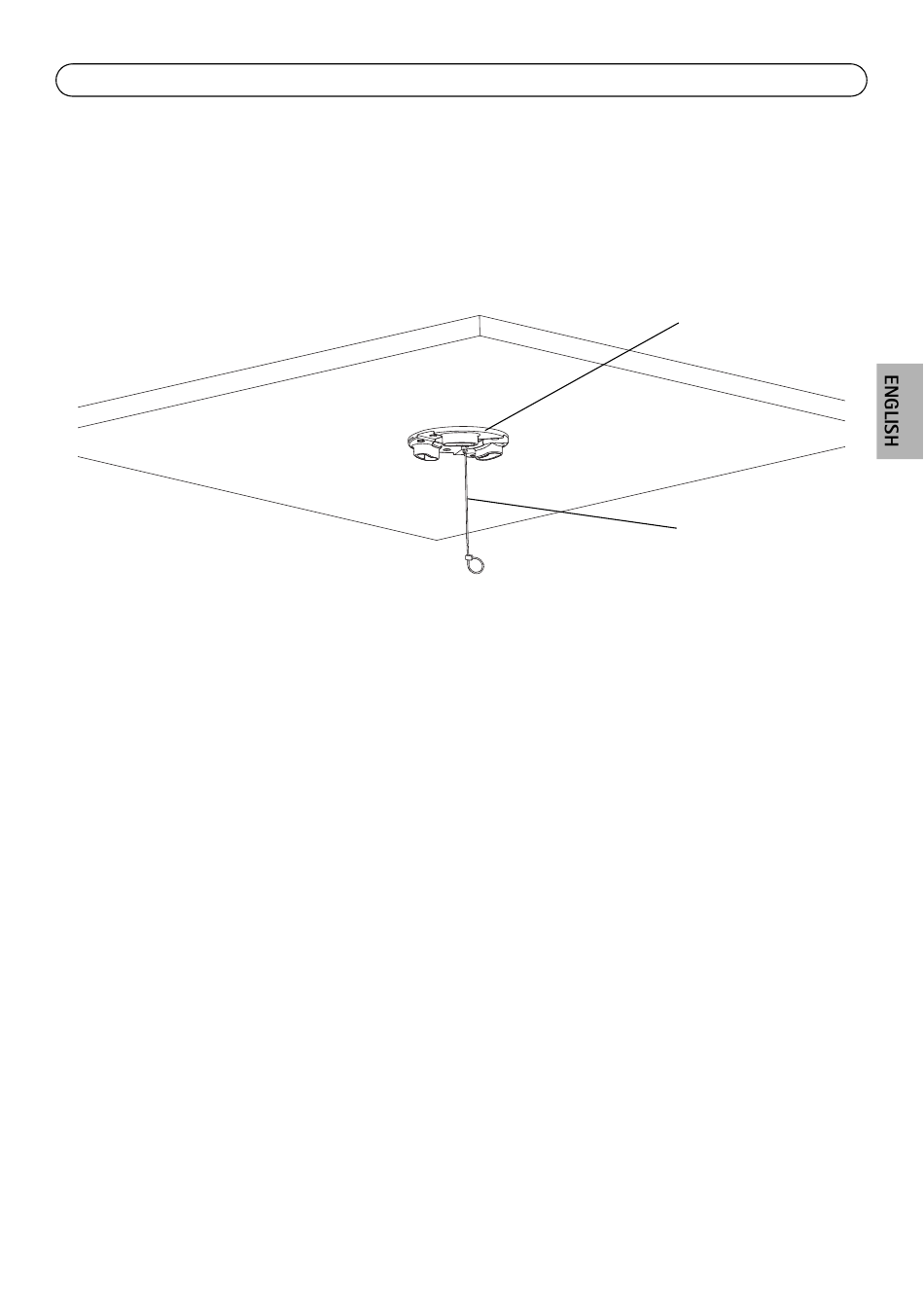

Mounting plate
Safety wire
on page
