Bracket mount (optional accessory)
1. Install the selected bracket according to the
instructions supplied with the bracket. If drilling is
required, make sure to use drill bits, screws and
plugs that are appropriate for the material.
2. Loosen the 3 camera base lid screws and remove
the camera base lid, see illustration on page 7.
3. Route the network cable and the multi-connector
cable, if applicable, through the holes in the
mounting bracket.
4. Hook the camera to the safety wire on the bracket.
5. Connect the network cable and, if applicable, the
multi-connector cable to the network camera.
6. Install AXIS T8123, see
7. Put the camera base lid back in its original position.
8. Slide the unit holders on the network camera into the slots on the bracket and rotate the
camera unit.
9. Secure the network camera to the mounting bracket by fastening the 3 screws (Torx T30).
Install AXIS T8123 High PoE Midspan 1-port,
AXIS Q6032/Q6034/Q6035 Installation Guide

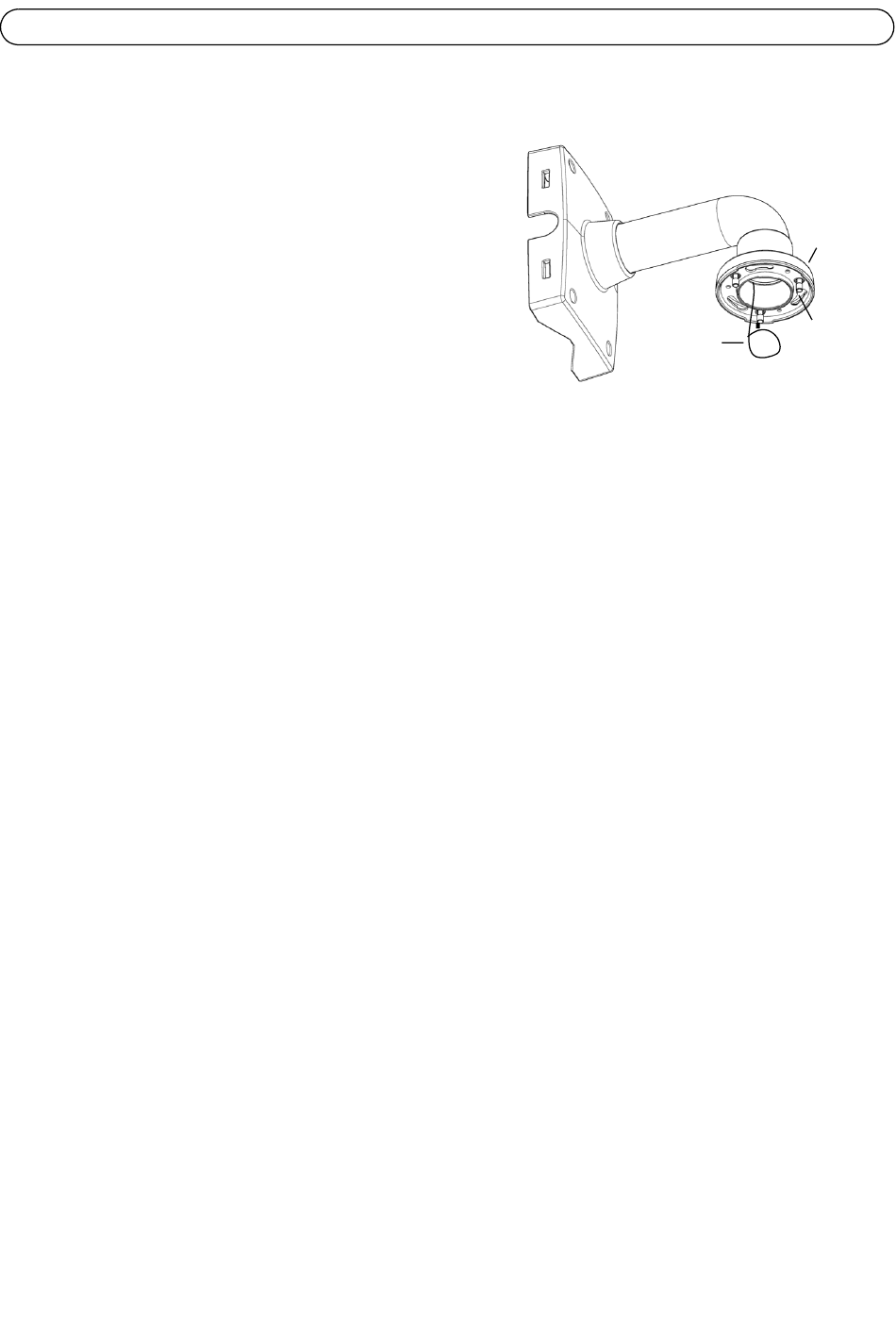

Wall bracket (mounting example)
Torx T30
Screws
Slots for
Safety
wire
unit holders
on page 13.
