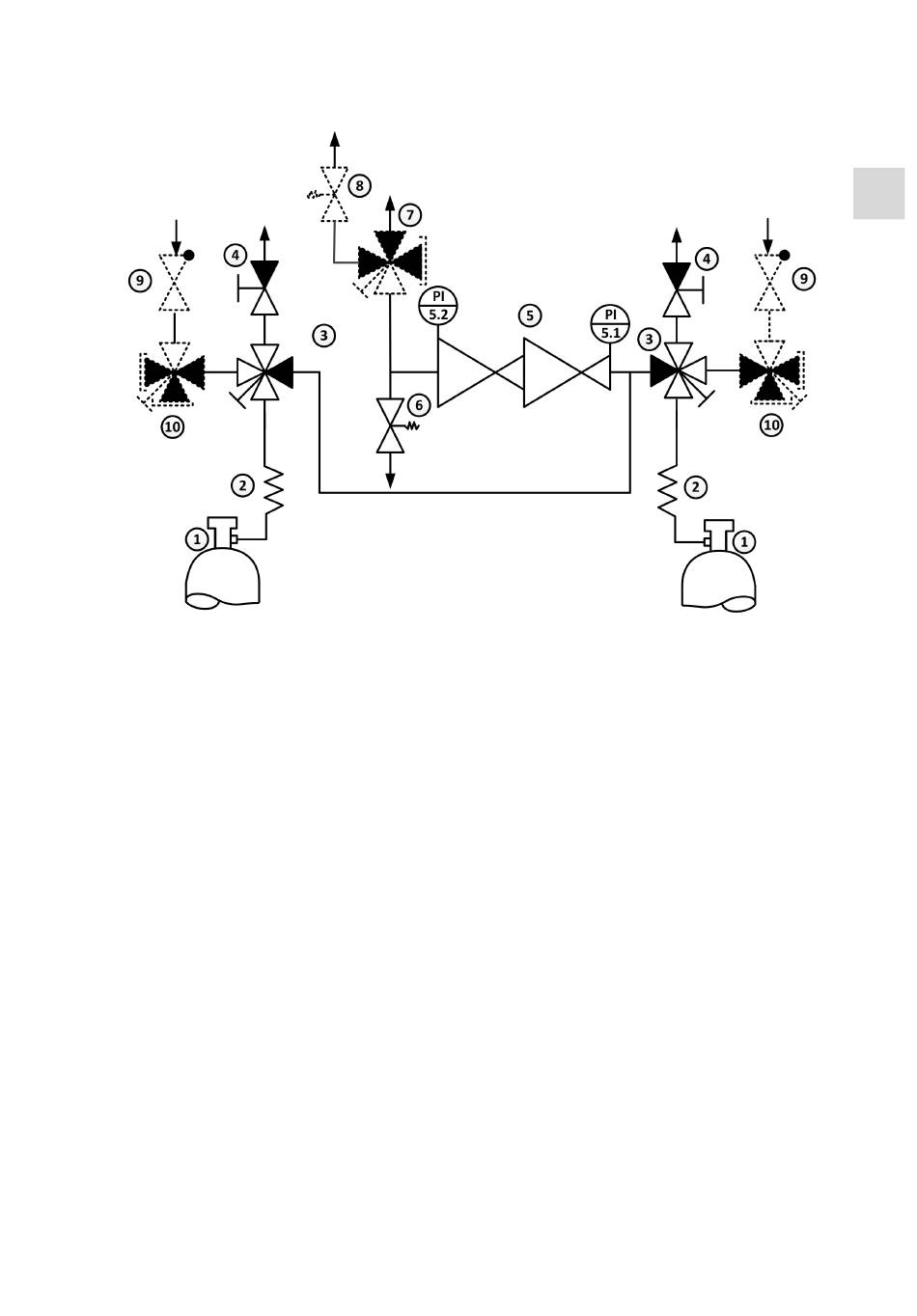

3.5. FLOW SCHEME – MSLH0MDE, MSLHEMDE
EN
1 – GAS CYLINDER
2 – COIL/HOSE
4 – SHUT-OFF VALVE (3XIN, 1XOUT)
5 – PURGE OUTLET VALVE
6 – PRESSURE REGULATOR
7 – RELIEF VALVE
8 – SHUT-OFF VALVE (1XIN, 3XOUT)
9 – SAFETY VALVE
10 – CHECK VALVE
Options are shown as dotted line
17/64
