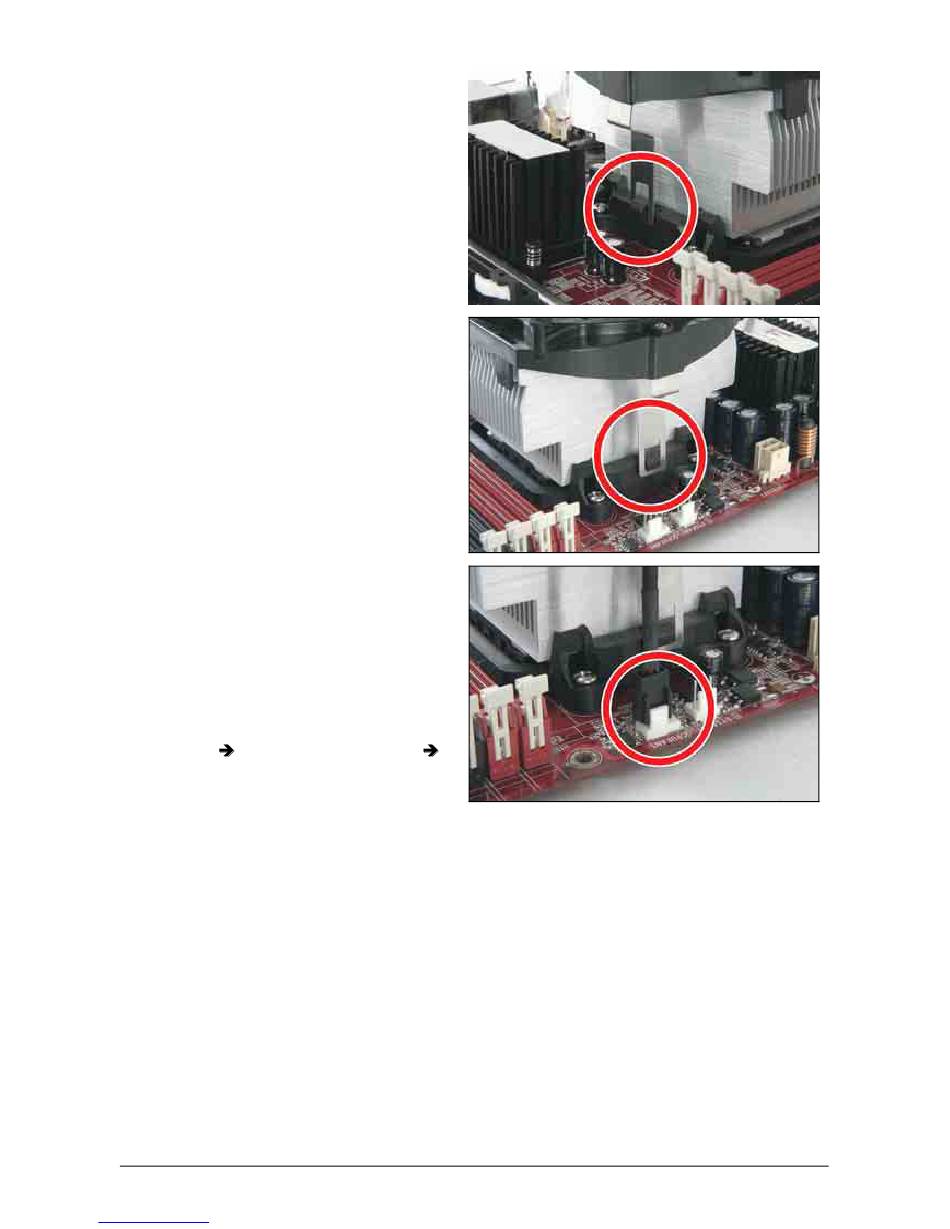

4. Place the heatsink and fan assembly
onto the retention frame. Match the
heatsink
mounting-lug. Hook the spring clip to
the mounting-lug.
5. On the other side, push the retention
clip straight down to lock into the plastic
lug on the retention frame.
6. Connect the CPU cooling fan power
cable to the [CPUFAN1] connector on
this motherboard.
※ Either a
fan connected to the [CPUFAN1]
connector is still capable of having
its fan speed controlled. Please refer
to the BIOS setup route: "PC Health
Status"
"CPU FAN Type" to select the one of
your own.
Also, please watch out for the
orientation when inserting 3-Pin
plug into this 4-Pin fan connector.
※ The motherboard in this illustration is served for DEMO only, may not be the
same type or model as the one described in this user's manual.
※ A higher fan speed will be helpful for better airflow and heat-dissipation.
Nevertheless, stay alert to not touch any heatsink since a high temperature
generated by the working system is still possible.
1-10
Downloaded from
www.Manualslib.com
clip
with
the
3-pin
4-pin
or
CPU cooling
"CPU FANEQ Control"
manuals search engine
socket
A-S78H
