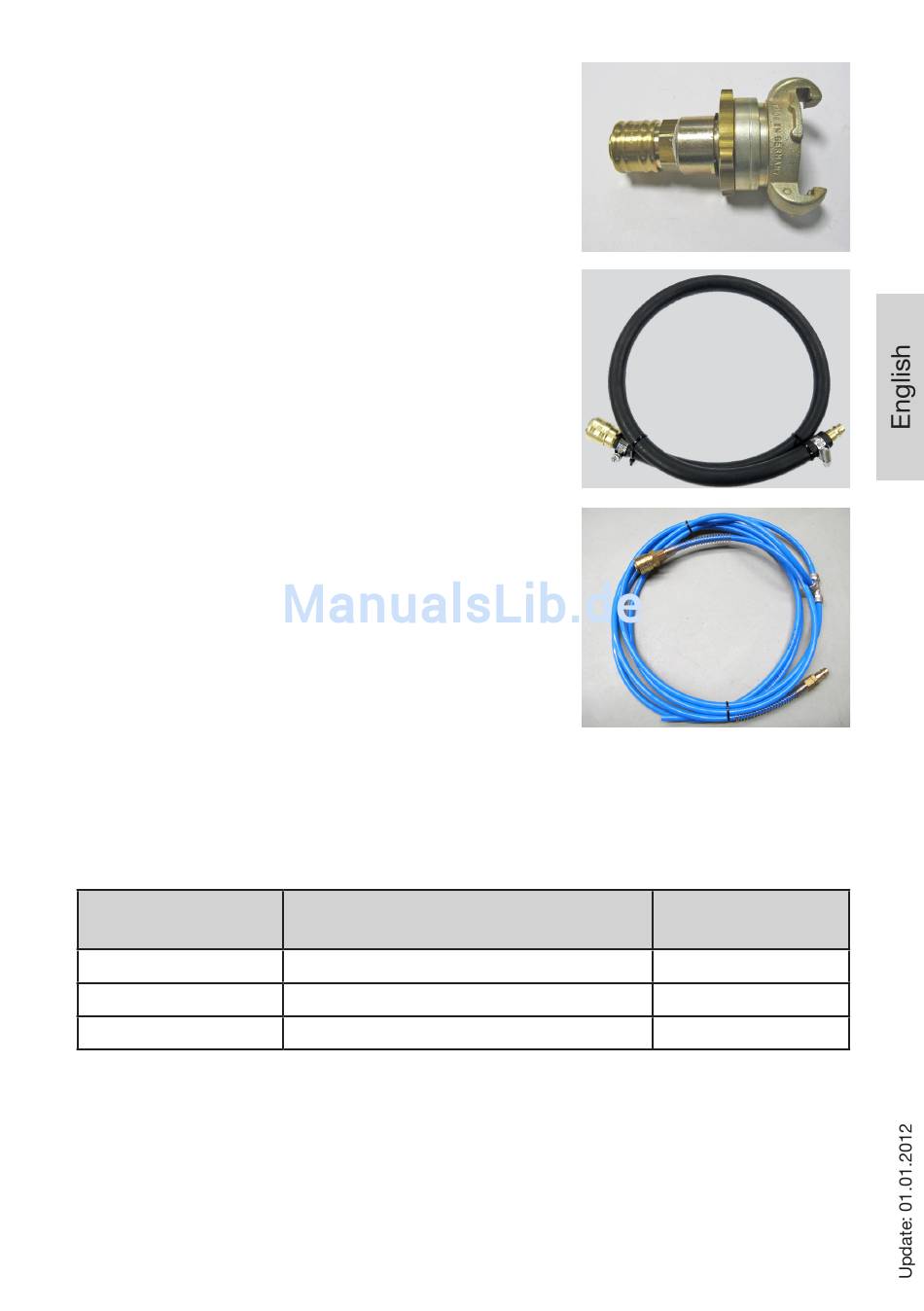

Conversion adapter from plug connector
NW 7.2 to claw coupling (pre-mounted on the
compressor connection hose)
Compressor connection hose (black), approx.
length 0.8m, with plug connector and coupling
NW 7.2
Saddle connection hose (blue), approx.
length 2.5m, with plug connector and
coupling NW 7.2
Operating instructions
Aluminium transport box
For the assembly of the FRIALEN XL spigot saddles SA-XL, nominal width-
related plungers with stop plate and plug connection NW 7.2 are required in
addition. These are not included in the scope of delivery of the VACUSET XL
and must be ordered separately.
Article descrip-
tion
Plunger d 160
Plunger d 225
Plunger d 250
Outlet dimension FRIALEN XL
spigot saddle SA-XL
d 160
d 225
d 250
Order-Ref.
613821
613822
613823
5
