DESCRIPTION OF THE DEVICE

Features

Inexpensive mirror cylinder effect
1 colour-wheel with 7 dichroic colour-filtres and white • 1 Gobo-wheel with 9 gobos, 1 bicolor-gobo and open
• Manual focus • Strobe-effect with adjustable speed (1-5 flashes/sec.) • DMX-control via every standard
DMX-controller • 4 DMX-control-channels required • Sound-controlled via built-in microphone • Microphone-
sensitivity adjustable via rotary-control • Master/Slave-function • 4 high-quality stepping-motors • Automatic
lamp off during blackout or when sound-signal is missing • EFR 15 V/150 W lamp included in the delivery

Overview

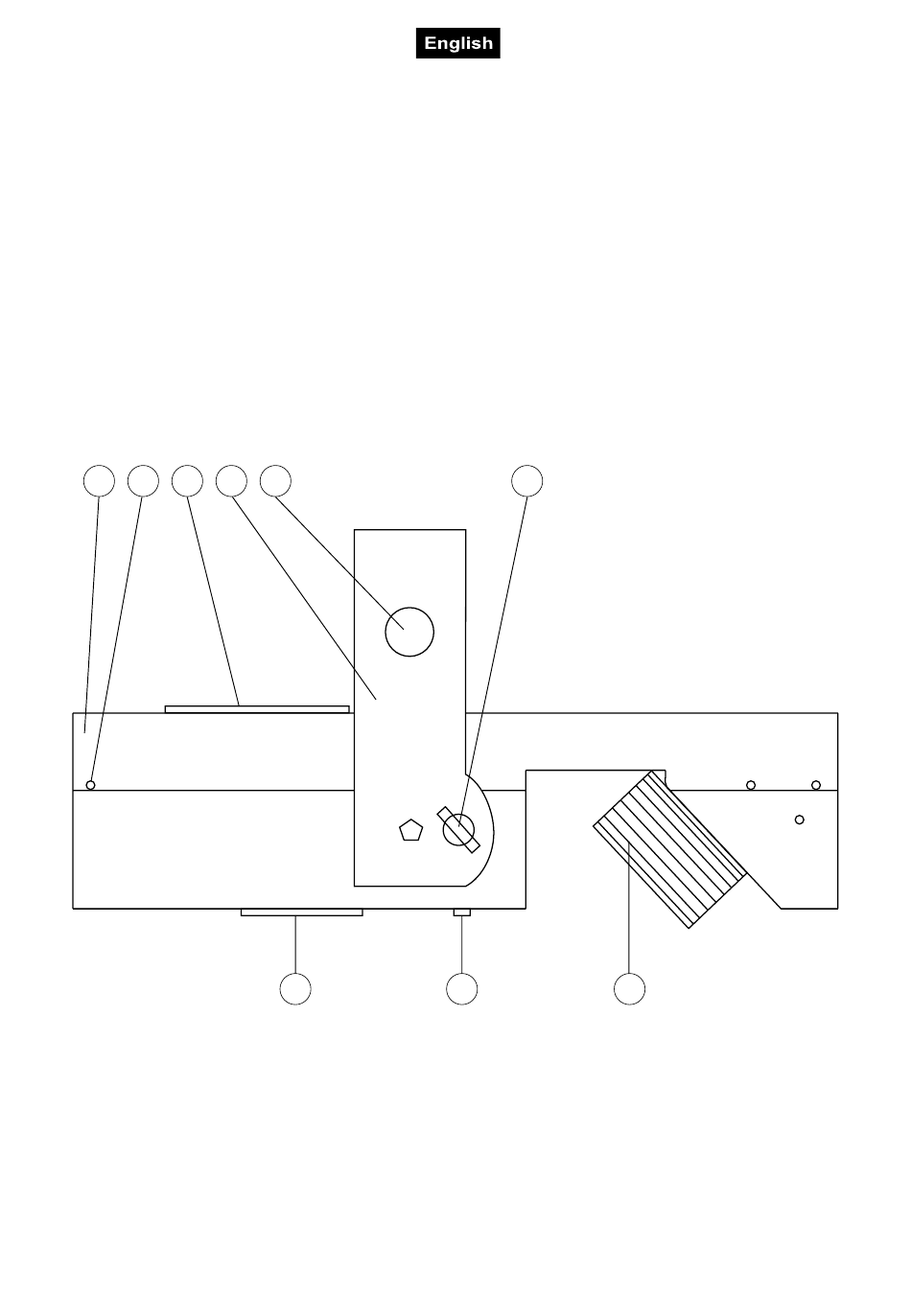

1 2 3 4 5 6
eurolite
®
7 8 9
(1) Housing cover
(2) Housing screws
(3) Ventilation fan
(4) Mounting bracket
(5) Hole for safety-rope
(6) Fixation screw
(7) Service-lid
(8) Focus-screw
(9) Mirror cylindre
