5. [Channel] Rotary channel selector
By turning the knob clockwise you skip to the next channel. By turning it counterclockwise you will
reach the last channel.
6. [EMG] Emergency channel button
By pressing it you will be automatically positioned on CH 9 (emergency channel). The display will
show "EMG". It will not be possible to accidentally change the channel.
7. [SCAN] button
With this control, you can automatically seek for a busy channel.
Turn the Squelch clockwise until the background noise is no longer heard.
Press the ''SCAN'' button: the transceiver will scan automatically all the channels until a carrier is
received.
8. [DW] Dual-Watch Switch
Allows the synchronisation on two different channels at the same time.
Pushing this button (for the first time) will make the current channel to „watch channel". Pushing the
button again will enable the DW. Disable by pushing this button for the third time.
9. [AM/FM] Modulation Button
To select AM mode or FM mode
10. [DIM]
Switch for the adjustment of the display lighting during operation. You have the choice between full
lighting or reduced lighting.
11. [ESP] ESP 2-Noisekiller
The ESP 2 is fulfilling two functions at the same time.
In the first function the ESP 2 reduces the annoying noise and cracking with the receipt of very weak
signals. The second function begins if a stronger signal is received. Here the ESP 2 switches on
automatically an active bandpass filter which suppresses a still existing noise and cracking. Thus
the voice/modulation will be emphasised clearly from the background noises.
2

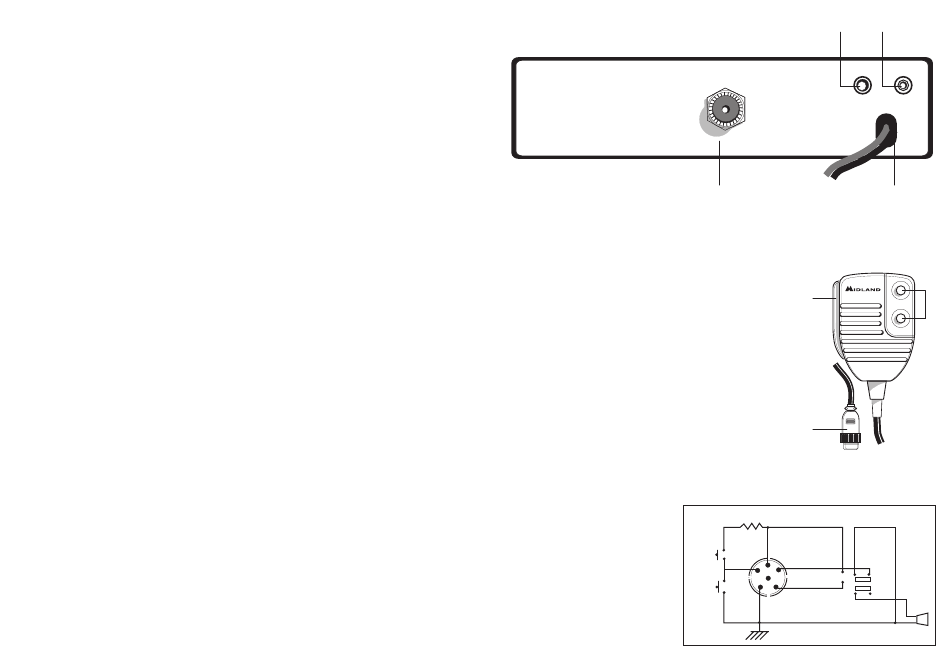

REAR PANEL
12. "EXT" jack
external loudspeaker jack.(the internal loudspeaker is excluded).
13. Power 13.8 V DC
Power supply cable.
14. S-Meter jack
It allows an external "s meter" connection.
15. Antenna connector
(SO239 connector type).
MICROPHONE
1. PTT: transmission button
2. UP/DOWN buttons: manual channels selector.
3. 6 pin
microphone connector
Pin 1
Mike (RF)
Pin 2
RX (Audio)
Pin 3
PTT
Pin 4
Up/Down-Switch
Pin 5
Ground
Pin6
Power line
12
EXP-SP
ANTENNA
15
1
3
22K
3
UP
2
3
2
1
4
TX
3
DOWN
6
5
1
4
5
3
14
S-METER
13
2
UP
DOWN
RX
MIC
