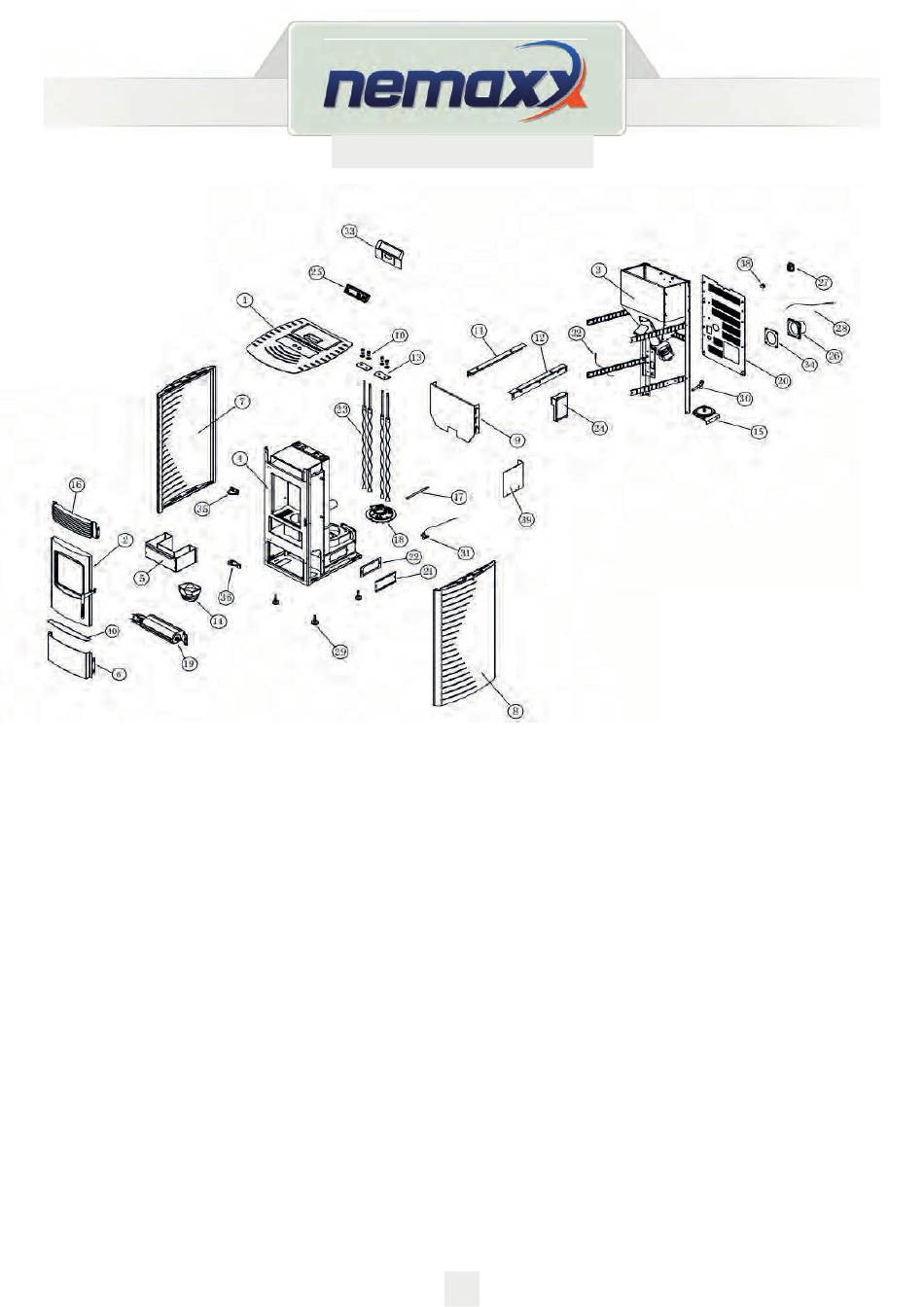

1.
Top cover assembly
2.
Door assembly
3.
Hopper assembly
4.
Chamber weldments
5.
Ash drawer assembly
6.
Front baseplate
7.
Left side panel
8.
Right side panel
9.
Chamber insulation panel
10.
Nuts, M8*24*10
11.
Left shoulder bar
12.
Right shoulder bar
13.
Clean sealing plate
14.
Burning pot, Ø95
15.
Vacuum switch assembly
16.
Front upperplate
17.
Ignition rod,Ø9.5*150
18.
Combustion fan assembly (Smoke exhaust fan)
19.
Blower assembly (Crossflow fan)
EN
5
20. Back panel
21. Galvanized sealing plate
22. Fiberglass sealing rope
23. Clean spiral rod welds
24. Motherboard kit
25. Display panel kit
26. Smoke pipe connection set
27. Power socket
28. Room temperature sensor
29. Rubber feet, M8*60- Ø35*12
30. Silicon pipe, Ø12*2*170
31. Exhaust temperature sensor(red)
32. Hopper temperature sensor(yellow)
33. Display panel tray
34. Silicone gasket for smoke pipe connection sleeve
35. Upper door hinge
36. Lower door hinge
37. Rubber coil, Ø3
38. Motherboard tray
39. Ash baffles
