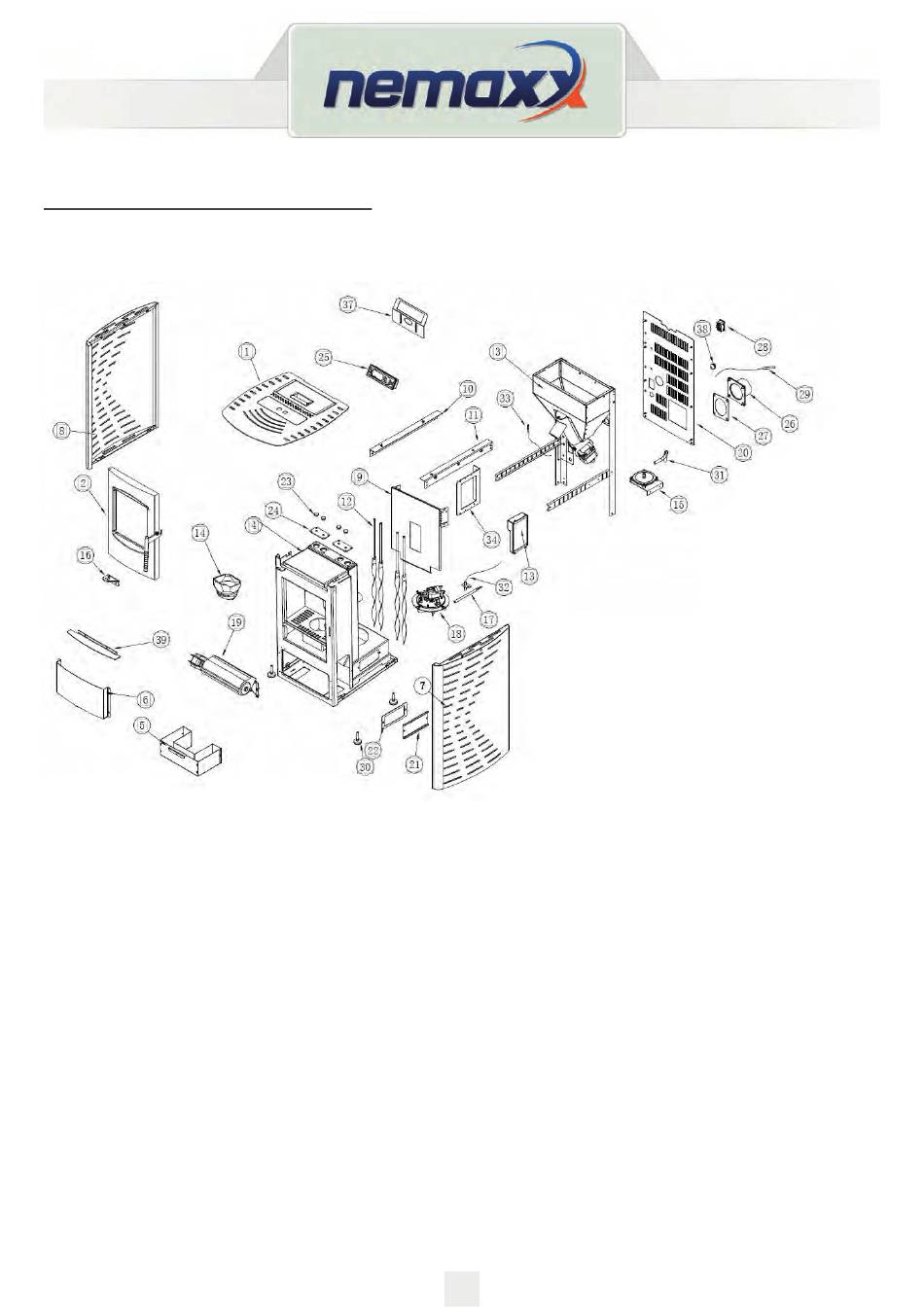

3. STRUCTURE INSTRUCTION
The stove is mainly made up of following items:
1. Top cover assembly
2. Door assembly
3. Hopper assembly
4. Chamber weldments
5. Ash drawer assembly
6. Front baseplate
7. Right side panel
8. Left side panel
9. Chamber insulation panel
10. Left shoulder bar
11. Right shoulder bar
12. Clean spiral rod welds
13. Motherboard kit
14. Burning pot, Ø95
15. Vacuum switch assembly
16. Hinge
17. Ignition rod,Ø9.5*150
18. Combustion fan assembly
(Smoke exhaust fan)
19. Blower assembly (Crossflow fan)
EN
20. Back panel
21. Galvanized sealing plate
22. Fiberglass sealing rope
23. Clean rod connector,Ø20*10-M4
24. Clean sealing plate
25. Display panel kit
26. Smoke pipe connection set
27. Silicone gasket for smoke pipe connection sleeve
28. Power socket
29. Room temperature sensor
30. Rubber feet, M8*60- Ø35*12
31. Silicon pipe, Ø12*2*190
32. Exhaust temperature sensor(red)
33. Hopper temperature sensor(yellow)
34. Motherboard tray
37.
Display panel tray
38.
Rubber coil, Ø3
39.
Ash baffles
