• There must be easy access for maintenance work on the device.
• Place it on a stable, leveled and solid surface (e.g., concrete base).
• If necessary, use the stand to lift the pump up to the level of the piping fitted. (FIGURE 2).
• Fasten the pump to the ground using the anchoring stud so that it is suitably fitted in place.
(FIGURE 3).

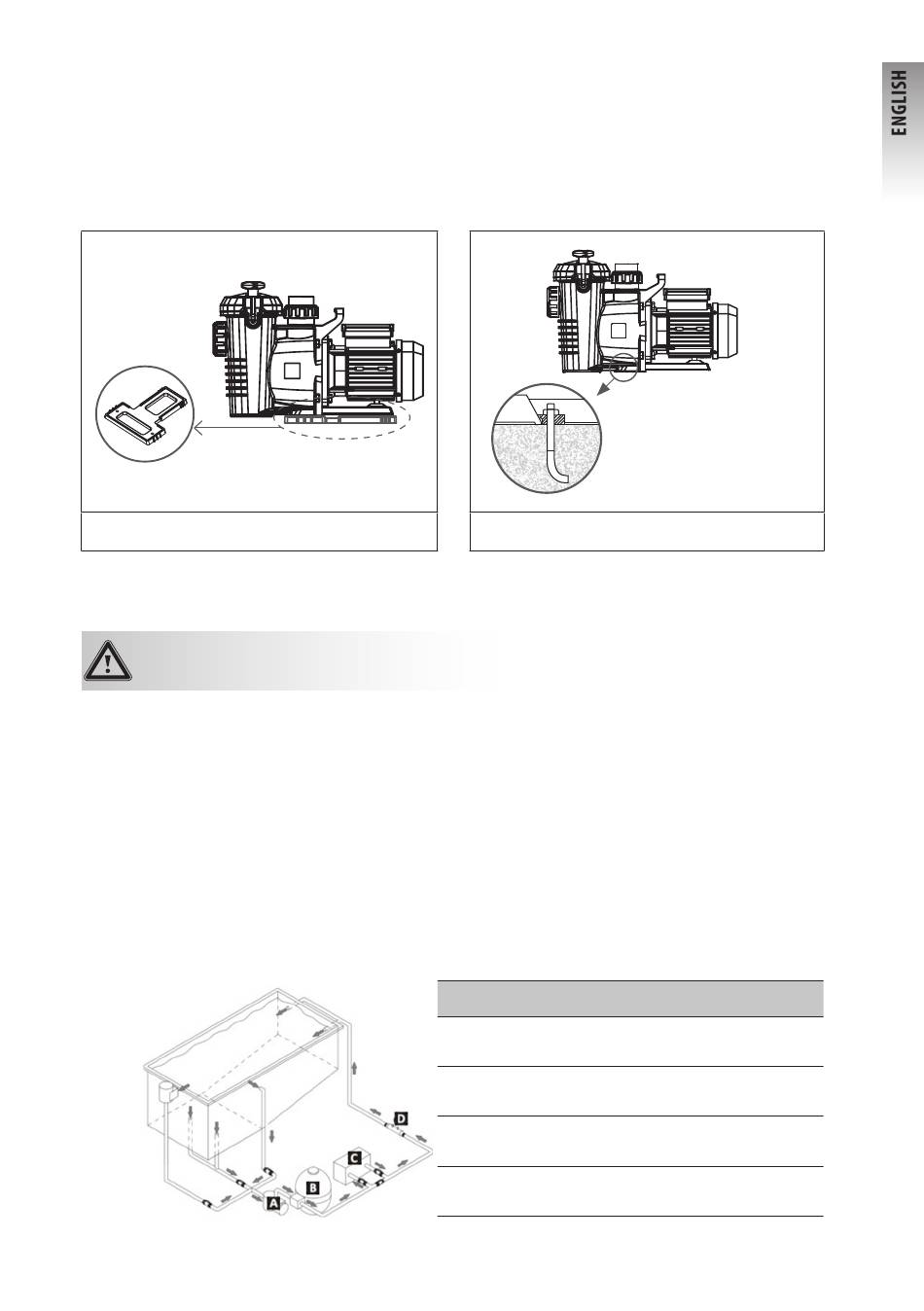

FIGURE 2 - PUMP STAND

3.2 HYDRAULIC CONNECTIONS

• Observe the direction of the hydraulic connections.
• Select the pipe size according to the size of the pool in line with the hydraulic standards in
place in the country of installation.
• For hydraulic connections, use the standard connections required.
• Fit a check valve if the filter is installed above the water level.
• Fit isolation valves (suction and discharge) if the filter is installed below the water level.
• To avoid problems with priming, install the suction pipe so that there are no high points
where air can build up.
• Check that the hydraulic connections are securely tightened and that there are no leaks.
• The piping should be well supported to avoid any risk of breakage due to the weight of the water.
Installation and general maintenance manual
A Pump
B Filter
C Heating system
D Water treatment system
- POOL PUMPS
Anchoring points
(on each side of the pump)
FIGURE 3 - ANCHORING
HYDRAULIC CONNECTIONS
