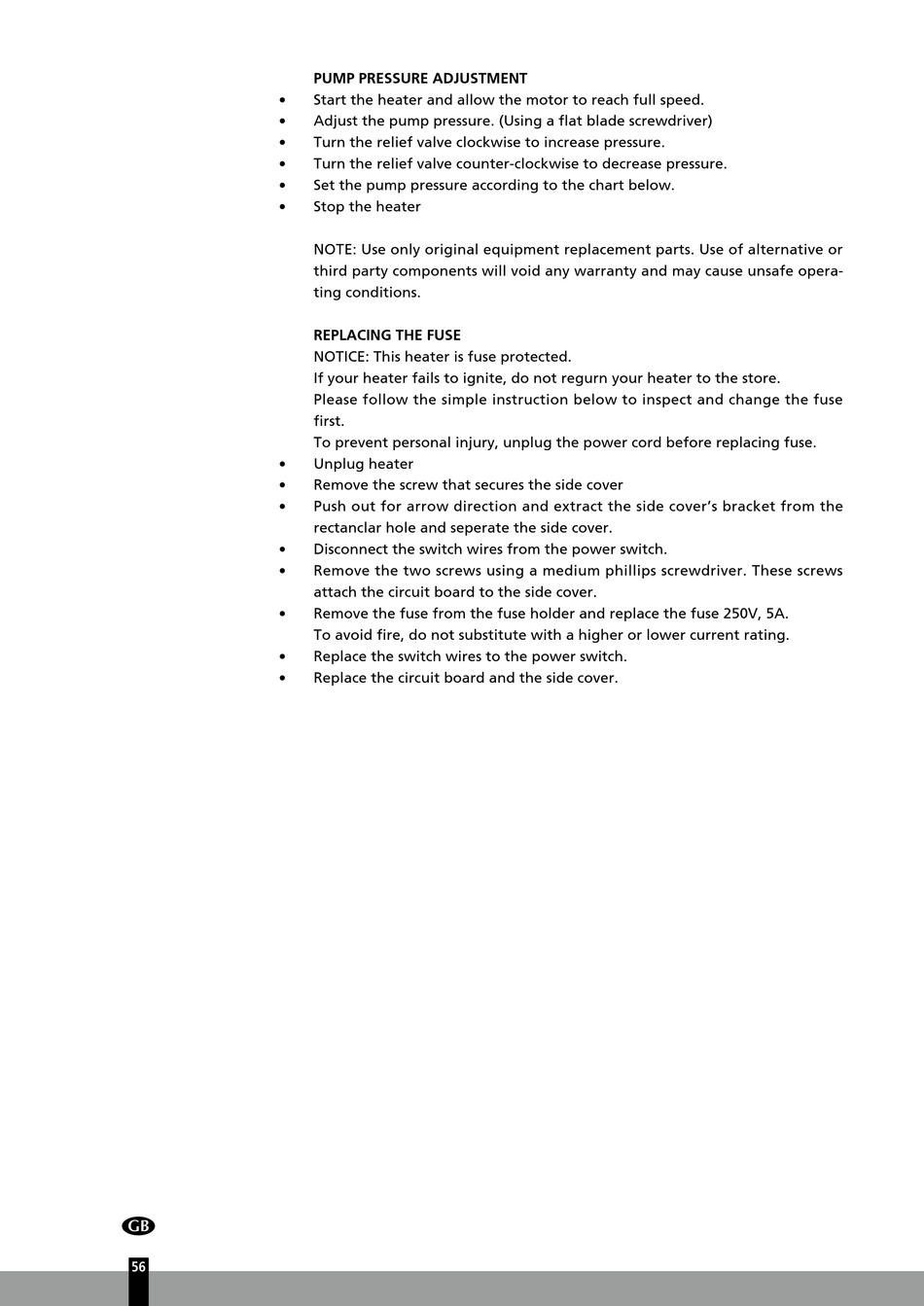

PUMP PRESSURE ADJUSTMENT

Start the heater and allow the motor to reach full speed.
Adjust the pump pressure. (Using a flat blade screwdriver)
Turn the relief valve clockwise to increase pressure.
Turn the relief valve counter-clockwise to decrease pressure.
Set the pump pressure according to the chart below.
Stop the heater
NOTE: Use only original equipment replacement parts. Use of alternative or
third party components will void any warranty and may cause unsafe opera-
ting conditions.

REPLACING THE FUSE

NOTICE: This heater is fuse protected.
If your heater fails to ignite, do not regurn your heater to the store.
Please follow the simple instruction below to inspect and change the fuse
first.
To prevent personal injury, unplug the power cord before replacing fuse.
Unplug heater
Remove the screw that secures the side cover
Push out for arrow direction and extract the side cover's bracket from the
rectanclar hole and seperate the side cover.
Disconnect the switch wires from the power switch.
Remove the two screws using a medium phillips screwdriver. These screws
attach the circuit board to the side cover.
Remove the fuse from the fuse holder and replace the fuse 250V, 5A.
To avoid fire, do not substitute with a higher or lower current rating.
Replace the switch wires to the power switch.
Replace the circuit board and the side cover.
