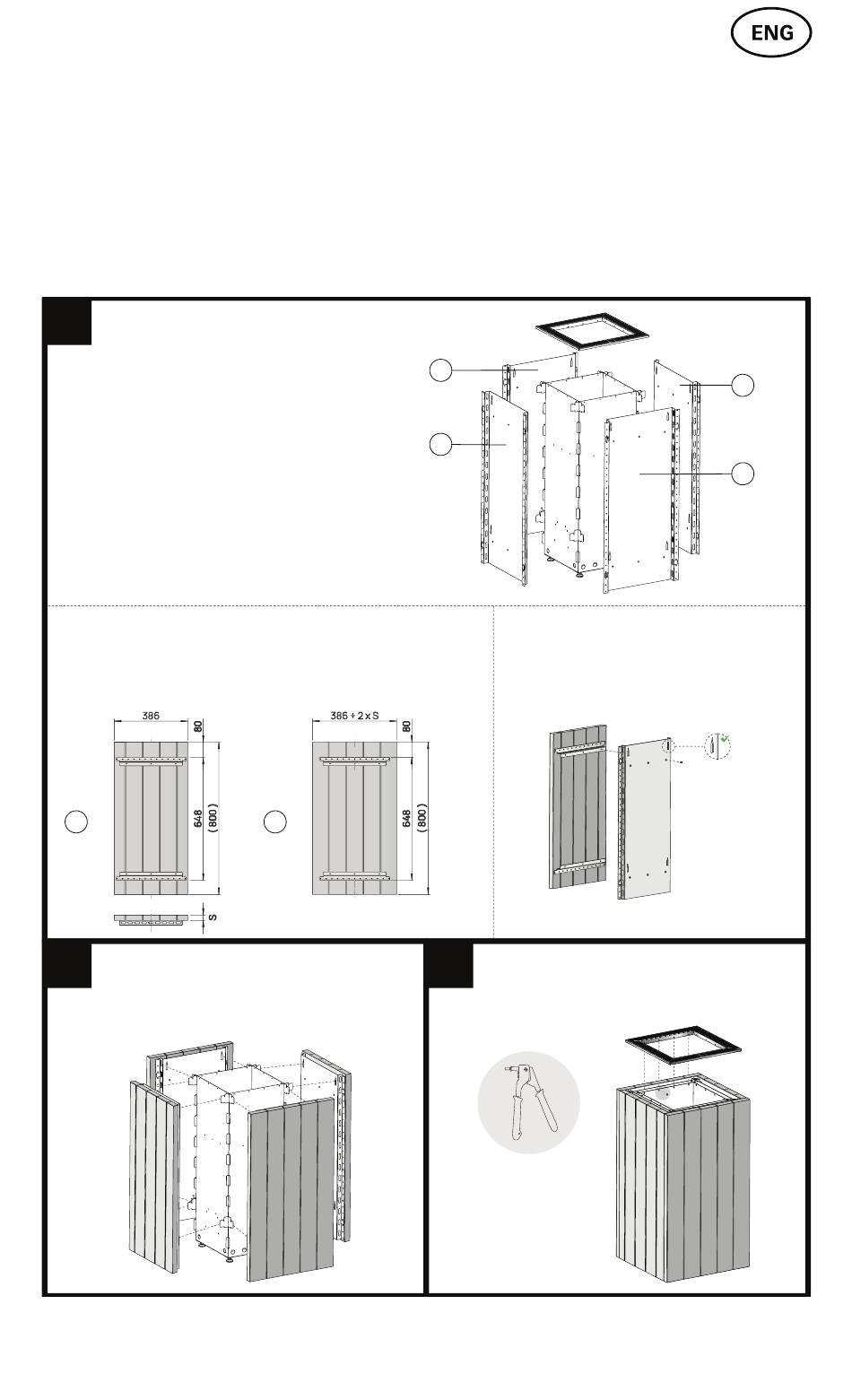

Vertical fi nishing installation
1
Prepare the shields (4 pcs)
The instructions below are recommended and are
intended for attaching material from vertical
slats to the CORE electric heater.
NB! Consult a specialist when choosing the
right fasteners and tools.
NB! Make sure that the material you want to
finish with the heater is suitable for the
intended use in the sauna. If necessary,
consult an expert.
1
Preparing the shields
Select the appropriate screws to secure the finish to the
mounting brackets (available as an accessory). The maximum
diameter of the screw is 4.2 mm. If necessary, consult an expert.
386
A
2
Attach the prefabricated shields
to the heater.
Make sure that there is a minimum air gap of 25 mm
under the heater.
386 + 2 x S
B
x 2
B
A
2
Attaching the finish to the shield
Attach the base plates to the shields with
M5x8 screws (24 screws included).
x 2
3
Place the cover strips on the heater
and fasten them with rivets.
The riveting tool is not included.
A
B
Openings pointing
upwards
x 4
