APPENDIX 1. Finishing installation

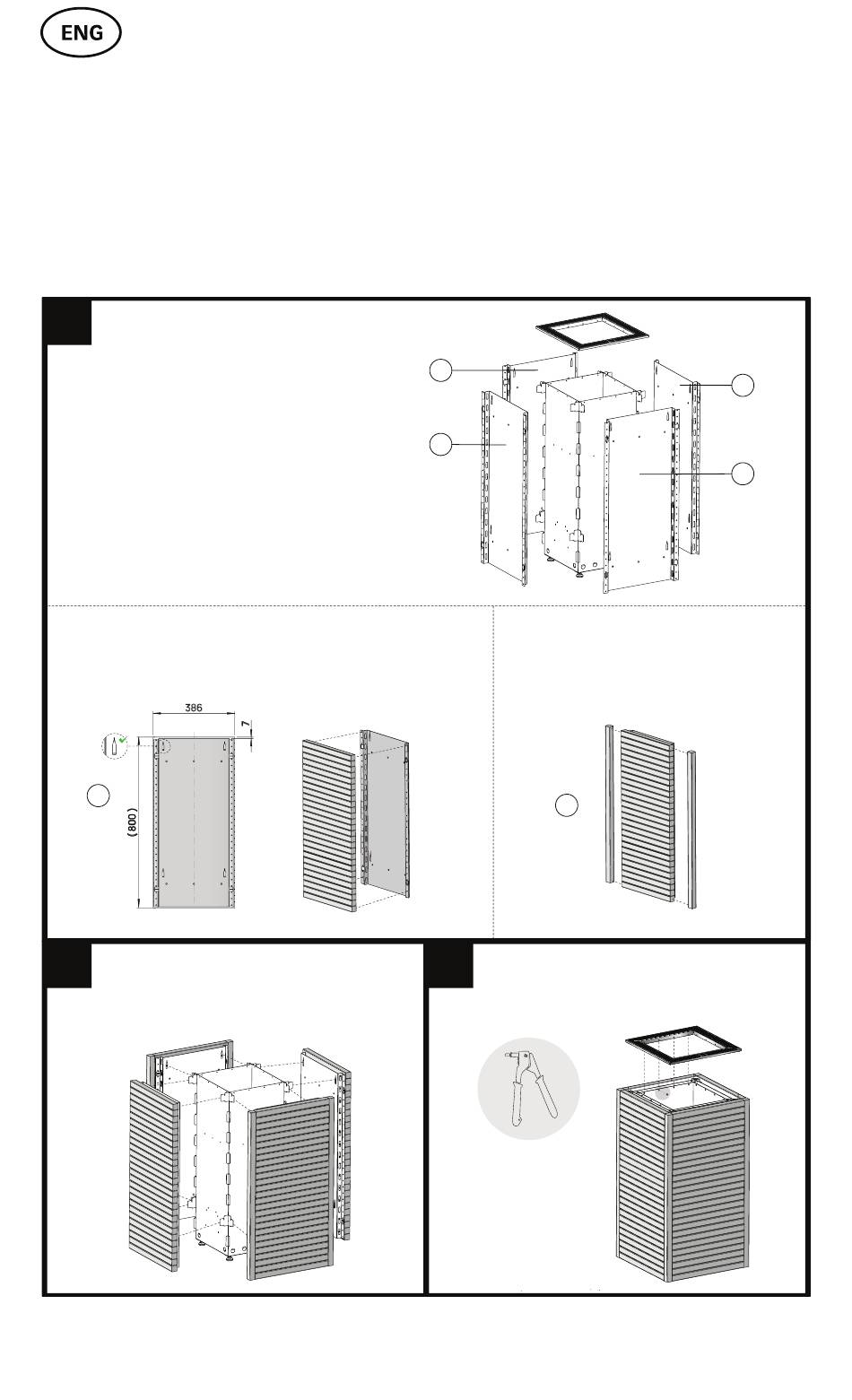

Horizontal fi nishing and tile installation
1
Prepare the shields (4 pcs)
The instructions below are recommended and are
intended for attaching timber or slabs from
horizontal slats to the CORE electric heater.
NB! Consult a specialist when choosing the
right fasteners and tools.
NB! Make sure that the material you want to
finish with the heater is suitable for the
intended use in the sauna. If necessary,
consult an expert.
1
Attaching the finish to the shield
Choose the right screws to secure the finish. The maximum
diameter of the screw is 4.2 mm. If necessary, consult an
expert.
386
Openings pointing
upwards
A
2
Attach the prefabricated shields
to the heater
Make sure that there is a minimum air gap of
25 mm under the heater
12
B
A
2
2x
x 4
3
Place the cover strips on the heater
and fasten them with rivets.
The riveting tool is not included.
Corner shields
At this stage, we recommend attaching
the corner moldings to the two shield
moldings.
B
2x
A
B
x 2
