ASSEMBLY
In order to familiarise yourself with the parts of the device, we advise you to study the overview picture
and the parts list carefully before you start assembly. Place all the parts on the floor and remove all
packaging materials.

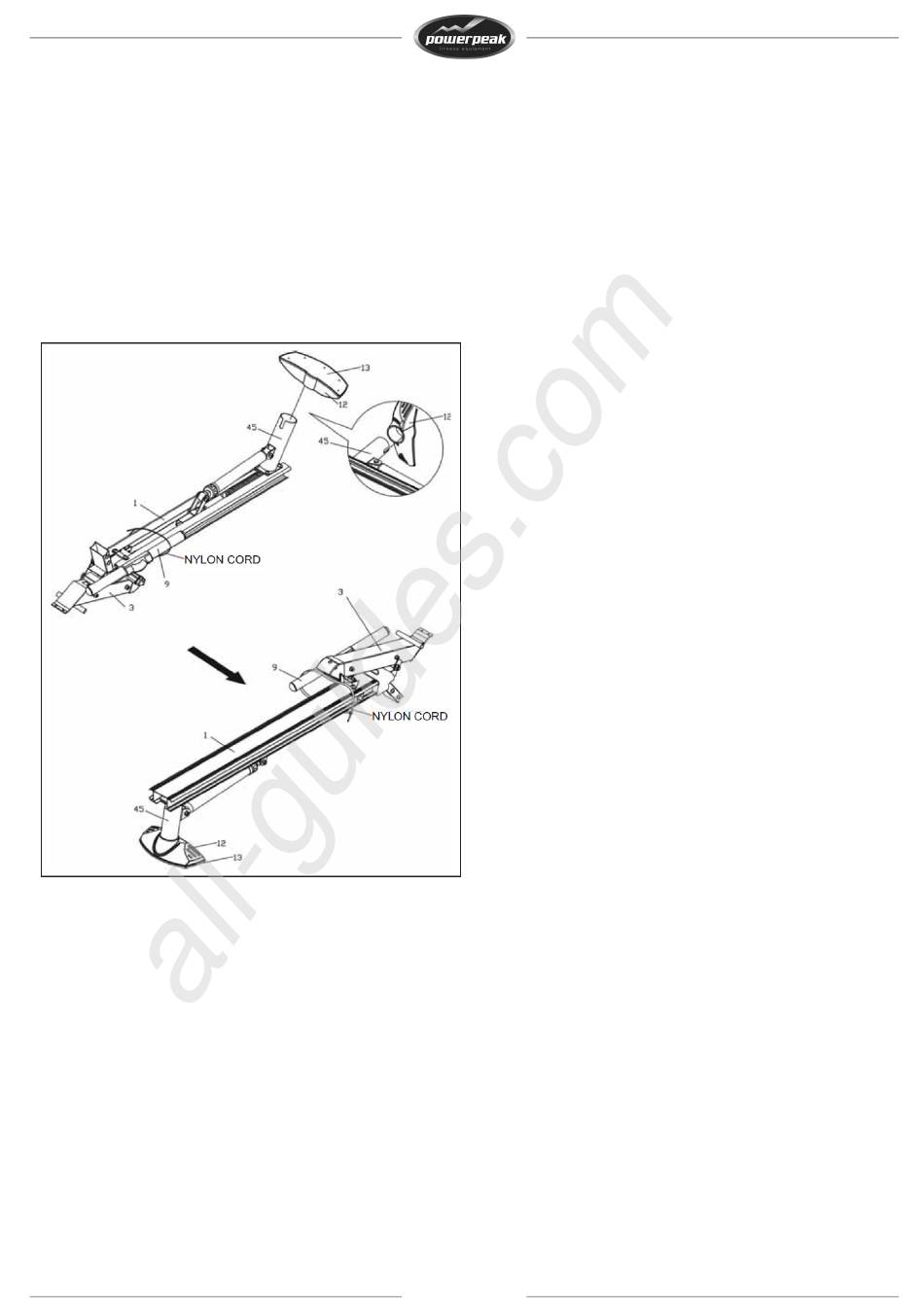

Step 1
Place the main frame on the floor as shown in the illustration. Make sure the key rib in the stabilizer cap
(12) aligns with the slot in the rear support (45), then press the stabilizer cap (12) onto the rear support
(45). Turn the main frame to the normal upright position and make sure the stabilizer pad (13) is
secured to the stabilizer cap (12).
