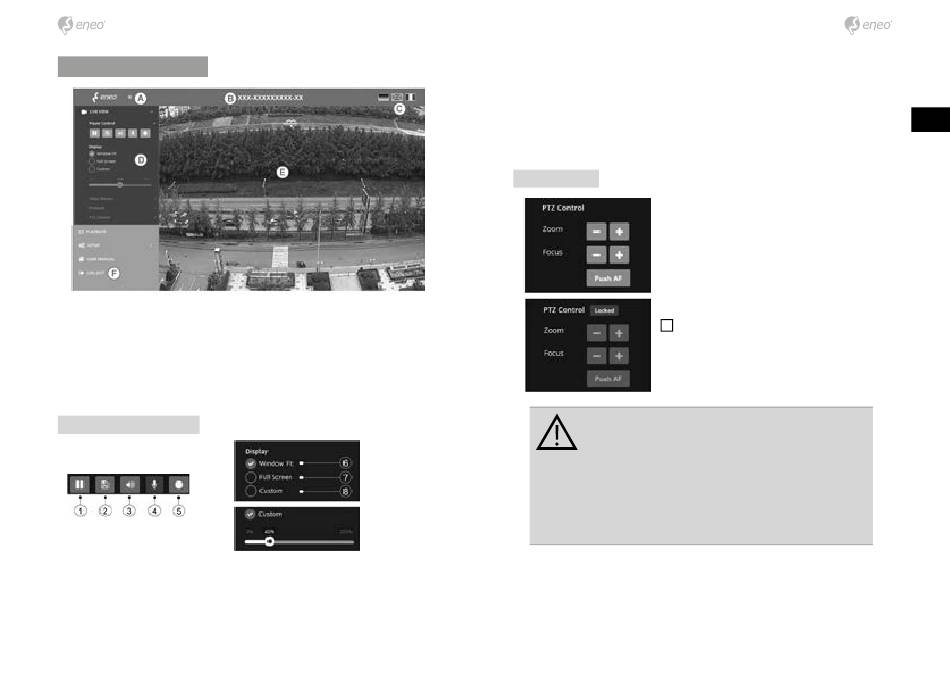

Web viewer description

(A) Menu button : Click the button to show or hide the setup menu bar.
(B) Model name : Show a camera model name connected.
(C) Select Language : Set the web viewer language English, Deutsch or French.
(D) Main setup menu bar : Set the camera or network functions.
(E) Camera monitoring window: Display the currently connected camera view or
function.
(F) Log out and exit the web viewer
Player control & Display
(1) Pause: Pauses the live view.
(2) Snapshot: Captures the image in .jpg format with the current stream resolution.
(3) Speaker: Enables audio to be output to the audio out port.
(4) Microphone: Enable audio to be input from the audio input port.
14
All manuals and user guides at all-guides.com
(5) Record: Records the live video in H.264 format to the equipped storage memory
(6) Window Fit: Display live view to fit the window size.
(7) Full Screen: Resizes the live view display to fit to the monitor resolution. ESC key
(8) Custom: Selects the live view display scale, 0%~200%, by the control bar. 100% is

PTZ Control

like SD, SDHC or SDXC from the video stream selected in the RECORD menu.
returns to the previous view.
the original size.
Used to adjust zoom/focus manually or one-push
focus automatically.
• Zoom: Controls the lens optical zoom in/out for
WIDE & TELE.
• Focus: Adjusts the lens focus manually for NEAR &
FAR.
• Push AF: Gets the lens to focus at the push of a
button.
i Note:
• ZOOM, FOCUS & PUSH AF are disabled when PTZ
control is locked.
• PTZ control can be unlocked at Setup>Video&Im-
age>Image>AF>Lens Locking to OFF or TIMER.
CAUTION:
• Set LENS LOCKING at Setup>Video&Image>Im-
age>AF>Lens Locking to ON or TIMER after completing
lens setting to prevent unwanted lens operation.
• Do not adjust zoom/focus in low light conditions or night
mode. It might cause erroneous focusing.
• For V/F versions, Zoom/Focus operation is strongly rec-
ommended for installation purpose only. Frequent zoom/
focus adjustments can reduce the life span of the lens..
