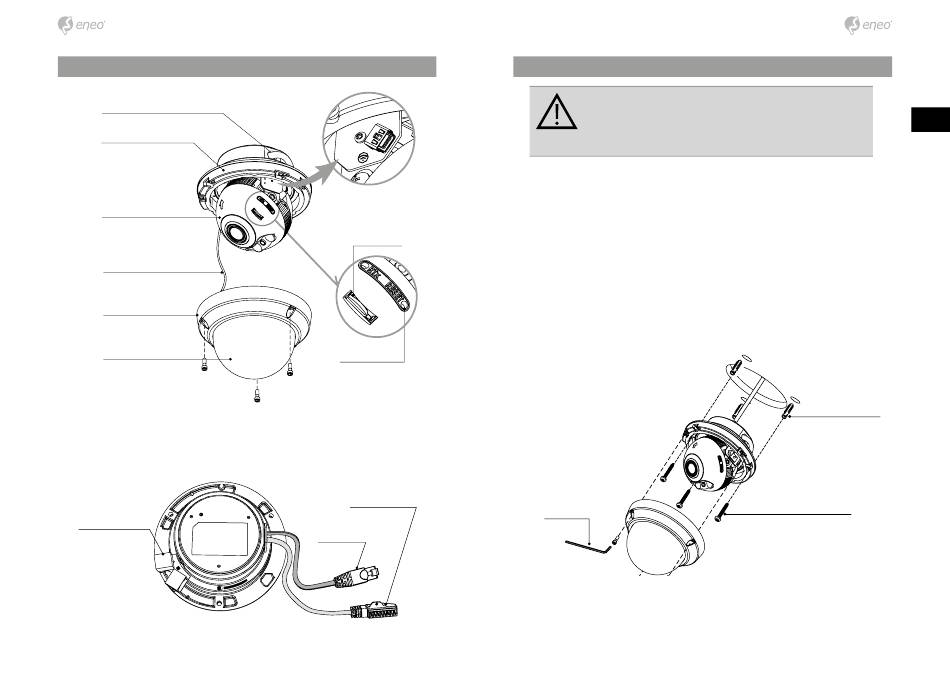

Part names

Power cable
Flush mount
3-Axis gimbal
Safty wire
Dome cover
Bubble dome
Coupler board
6
All manuals and user guides at all-guides.com
Wi-Fi connector port
Micro SD Card slot
Reset button
Power supply connector
Ethernet connector

Installation instructions

CAUTION: The camera's base should be attached to a structural
object, such as concrete, hard wood, wall stud or ceiling rafter
that supports the weight of the camera. If necessary use appro-
priate mounting material (e.g. anchors) instead of the material
enclosed with the camera.
1. Locate the mounting template at the installation position and drill the ceiling or
wall.
2. Open the dome cover by loosening screws (4x12mm). Use the torque wrench
supplied.
• Place the dome base unit on pre-drilled position and fix it through using mounting
screws (4x30mm).
• Route the Ethernet & Power cable to the connecting place.
3. Connect the dome cable with the power source cable.
4. Set the camera's viewing angle.
5. If necessary, connect the Wi-Fi dongle to Wi-Fi connector port of the camera then
adjust the zoom/focus setting by web menu.
6. Remove the Wi-Fi dongle after completing the settings.
7. Put the dome cover to the dome base unit and tighten the assembly screws.
Torque Wrench
EN
Plastic Anchor (6x30mm)
Mounting Screw (4x30mm)
7
