Optional mounting accessories
For information on optional mounting accessories please visit the eneo website at www.
eneo-security.com.
CAUTION: In the case of installation with Flush/ Surface/ Tilted
mount, IP protection rating is not guaranteed.
If power/video connectors are exposed to water or rain, separate
protection shield is essential.

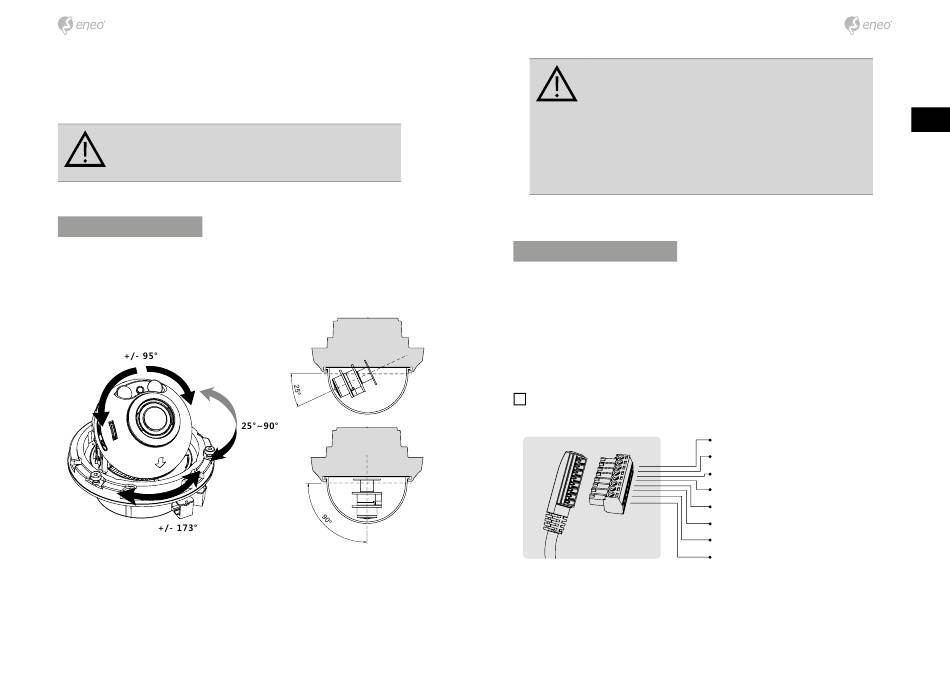

Pan & Tilt adjustments
1. Pan limit: Pan is limited to +/- 173°. Do NOT force to rotate the gimbal over the
limit to prevent from the internal damage.
2. Tilt limit: Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when
the inclination of camera module is 0°, that is, the image is aligned horizontally.
3. Rotation limit (Horizontal image alignment): Inclination limited to +/- 95° max.
8
All manuals and user guides at all-guides.com

Power supply connections

Make sure the power is removed before the installation. Camera can work with either
24VAC or 12VDC, dual voltage power and PoE (IEEE Std. 802.3af ). Primary and secondary
grounds are completely isolated to avoid the possible ground loop problems.
1. Plug the network cable into RJ-45 Ethernet Port. If PoE is the unique power, there
2. When DC12V or AC24V Local power is necessary, connect the low voltage (DC12V
i When PoE and local dual power are connected at the same time, local power has
priority.
CAUTION:
Extreme care should be taken NOT to scratch the bubble dome
surface while the camera installing or adjusting.
Care should be taken the cable is NOT to be damaged, kinked or
exposed in the hazardous area.
Tighten enough the dome cover fixing screws so that there
should be NO gap between Lens hood and clear bubble to avoid
the light inflow from IR LEDs.
will be no need to connect Power terminal.
or AC24V) first, then plug the AC adapter to AC outlets to avoid an improper reset
from power jitter and a damage from the surge voltage when no load.
AC24V/DC12V (Red wire)
AC24V/GND (Black wire)
Alarm-IN (Green wire)
Alarm-OUT (Blue wire)
GND (Gray wire)
Audio-IN (Brown wire)
GND (Gray wire)
Audio-OUT (Orange wire)
EN
