Gens Ace Imars III Pro Bedienungsanleitung Seite 20

3.2 Working time setting
Remark: After entering the working time mode, The charger will automatically shut off when
the selected time has elapsed. The charger will display
"CHARGE DONE! Timeout Cut-Off.
3.3Check software version
Press the Enter"
Back/Stop
3.4 USB display mode selection
Note:In the USB menu Use "None" mode, UART/SWD mode is only for product development;
Press Enter/Start
button
Press Enter/Start
button
Press Enter/Start
button
Gens Ace ImarsIII
Press Enter/Start
button
Press Enter/Start
button
Press Enter/Start
button
Press Enter/Start
button
Press the Enter"
Enter/Start"
20

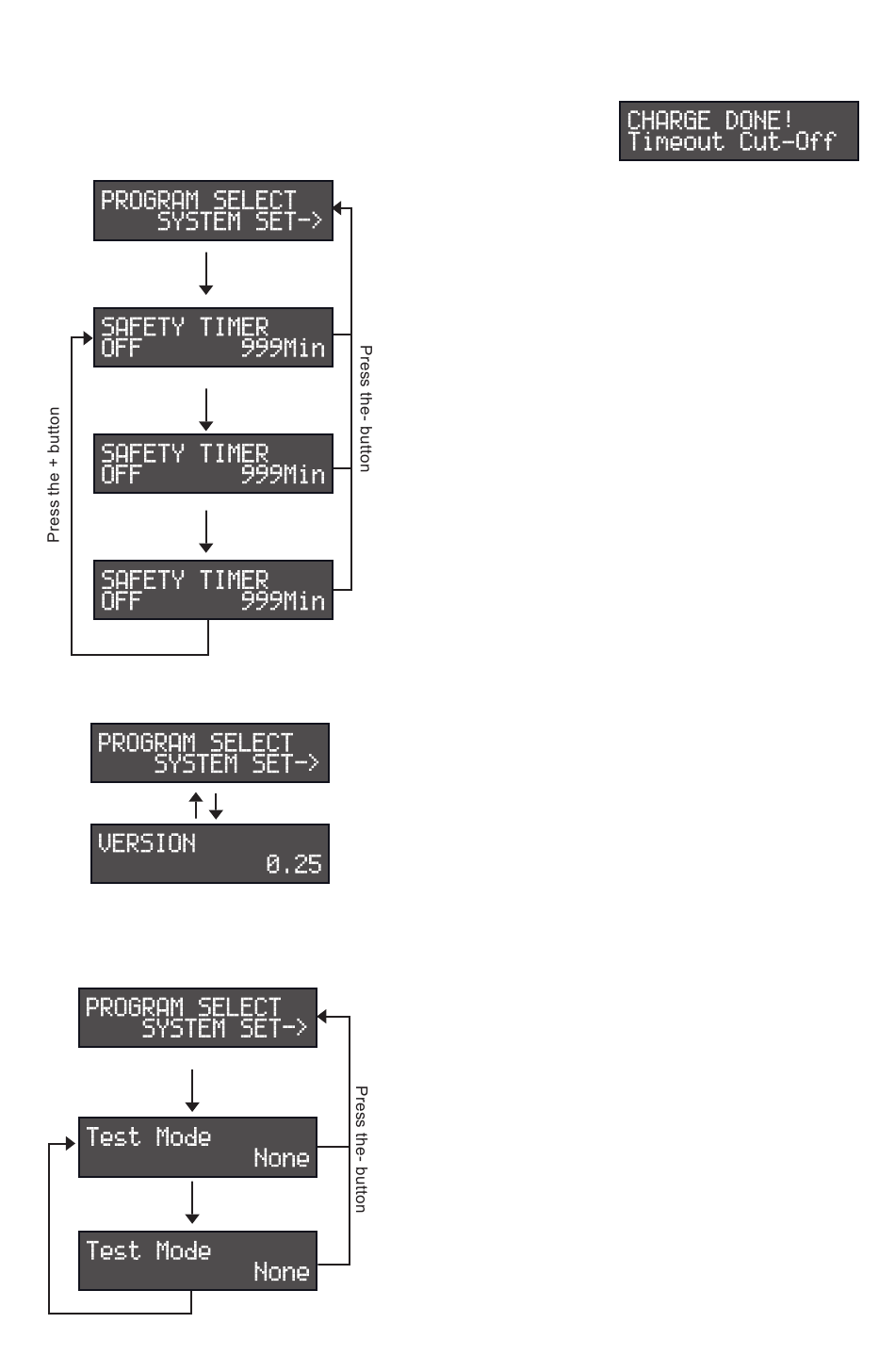

From the main charge menu press the "+/-" button
to switch to the " PROGRAM SELECT SYSTEM
SET" menu;
Press the "Enter/Start" button to enter the system
setting interface, press the "+/-" button to switch to
the "SAFETY TIMER" position.
Press the "Enter/Start" button, the cursor on the left
side of the interface will flash, press the "+/-" button
to modify the current status;
(OFF: Turn off the timing function, ON: Turn on the
timing function)
Press the "Enter/Start" button, the cursor on the
right side of the interface will flash, and press the "+/
-" button to modify the time.
(Time modification range: "1~999Min")
Press the "Enter/Start" button, the set up is
completed
From the main charge menu press the +/- button to
switch to the "PROGRAM SELECT SYSTEM SET"
position
Click the Enter/Start button to enter the system
setting display. Click the +/- button to switch to the
"VERSION" position. You can view the version
information of the current product. Click Back/Stop
to return to the main charge menu.
From the main charge menu press the +/- button to
switch to the "PROGRAM SELECT SYSTEM SET"
position
Click the Enter/Start button to enter the system
setting display, click the +/- button to switch to the
"Test Mode" position;
Click the Enter/Start button, the mode cursor on the
right side of the display flashes, click the +/- button
to switch the USB display function;
- None: USB normal output 5V/2.4A (users use
normally, set to None);
- UART/ SWD: software upgrade function;
Click the Enter/Start button.the set up is completed
