Press Enter/Start
button
2. LI BATT METER Volt information reading from the battery
NOTE: 2~6S LiPo/LiFe/LiHV battery (battery interface and balance port): all functions can be used after
connection;
1S LiPo/LiFe/LiHV battery (battery interface): only displays MAIN voltage after connection;
1~18S NIMH battery (battery interface): only displays MAIN voltage after connection
Gens Ace ImarsIII
Press the- button
Press the- button
Press the- button
Press the- button
Press the- button
Press+ button
Press- butto
18

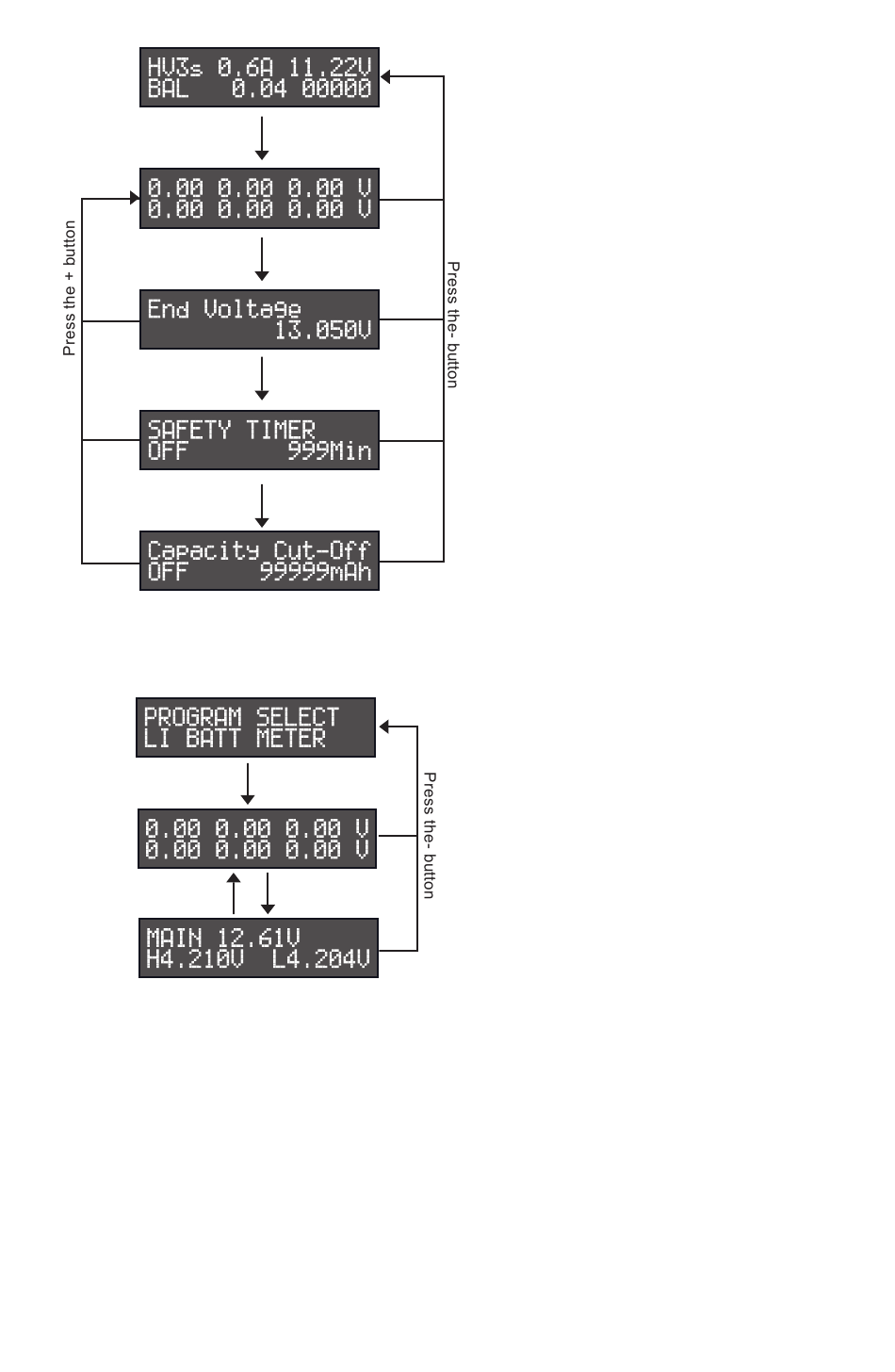

When working in the balance charge/cell
balancing/storage/discharge mode, press the
"+" button to check the voltage of each cell;
Press the "-" button from the cell voltage
display to check the End Voltage display.
Press the "-" button on the End Voltage display
to check the Safety Timer Cutoff.
Press the "-" button from the Safety Timer
Cutoff menu to check the Capacity Cutoff in
mAh.
Press the "+" button on the cutoff capacity
display to return to the single cell voltage
display;.
From the main charge menu press the "+/-"
button to switch to the "PROGRAM SELECT
BATT METER";
Press the "Enter/Start" button to enter the
single cell voltage display.
Press the "-" button to view the battery total
voltage and the single cell maximum/minimum
voltage interface;
(MAIN: total battery voltage, H: highest single
cell voltage, L: lowest single cell voltage)
