1.1 Set up battery parameters and working mode
Note: Please ensure that the charger operating parameters match the actual battery
parameters.
1.2 Turn work mode on and off
The 4 operating modes of the charger (CHARGE, CellBAL, STORAGE, DISCHG) are
similar. Take the discharge mode of the LiHV battery as an example to explain the operation:

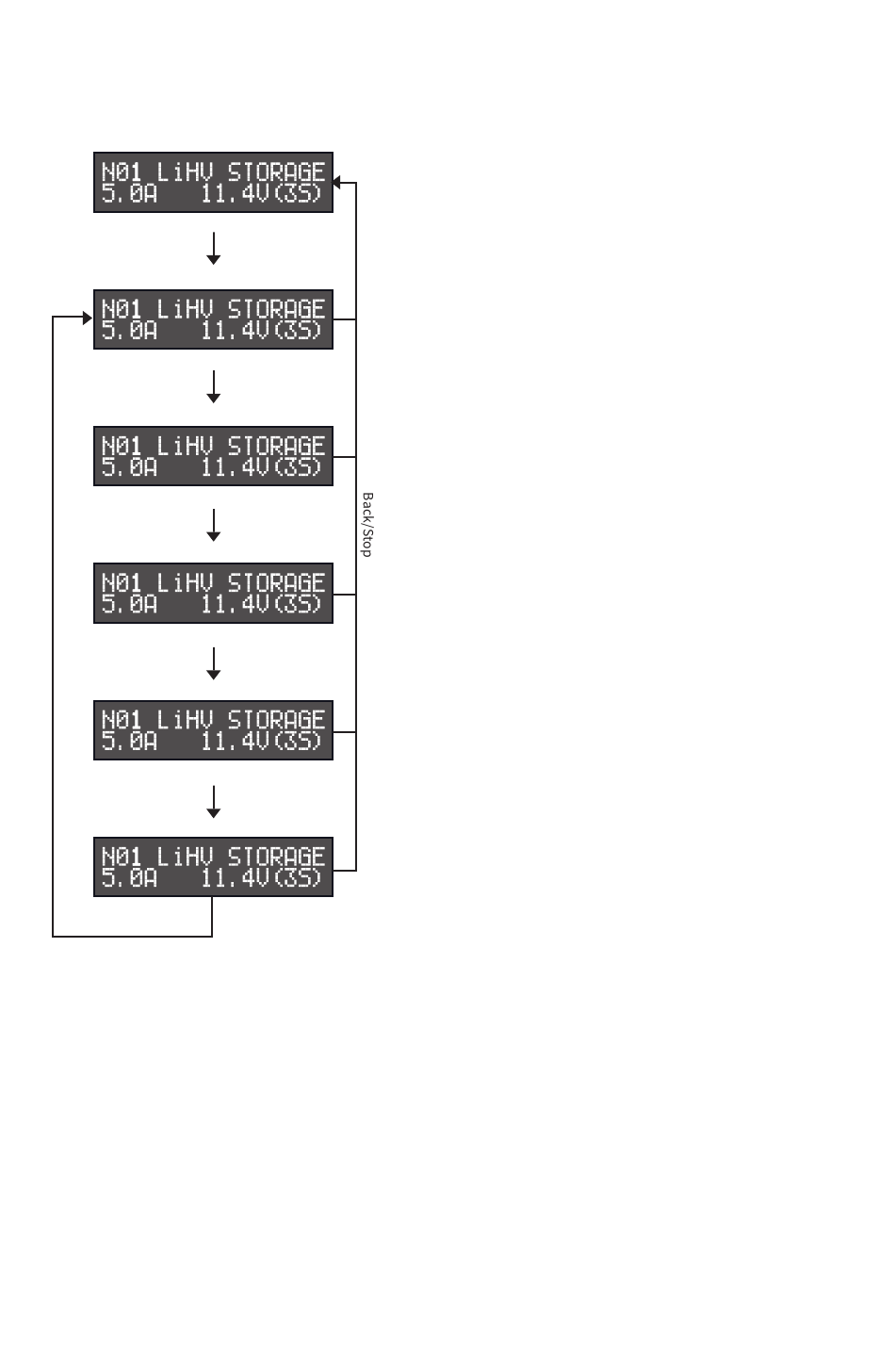

Turn on the discharge
Gens Ace ImarsIII
Press Enter/Start
button
Press Enter/Start
button
Press Enter/Start
button
Press Enter/Start
button
Press Enter/Start
button
Press Enter/Start
button
16
Enter the charge function menu, press the +/- button to
select memory number.
Press the Enter/Start button, the memory icon will flash,
press the +/ - button to select the desired memory number.
( Memory slots 01~12:, Each memory slot can store
parameters for one battery)
Press the Enter/Start button again, the battery chemistry icon
will flash, press the +/ - button to select the desired battery
chemistry;
(The charger supports 4 battery chemistiress: LiPo, LiHV,
LiFe, NiMh)
Press the Enter/Start button again, the working mode icon
flashes, press the +/- button to select the working mode;
There are 4 working modes:
CHARGE=BALANCE CHARGE
balancing
STORAGE= Storage
Discharge
Note: NiMh batteries only support CHARGE and
DISCHARGE modes.
Press the Enter/Start button again, the amperage selection
flashes, press the +/- button to adjust the amperage value.
(The amperage adjustable range: 0.1A~10A. Note:
DISCHARGE mode has no amperage settings)
Press the Enter/Start button again, the battery cell count will
flash, press the +/ - button to adjust the battery cell count to
match your battery;
(-Balance Charge mode: LiHV/ LiFe/ LiPo battery: 1~6S,
NiMH battery: 3~18S;
- Cell Balancing/storage mode: LiHV/ LiFe/ LiPo battery:
1~6S;
- Discharge mode: LiHV/ LiFe/ LiPo battery: 1~6S, NiMH
battery: 1~10S;)
Press the Enter/Start button, the set up is completed
CellBAL = Cell
DISCHG =
