Exsys EX-1315IS Anleitung

EX- EX EX - - 1315IS 1315IS 1315IS

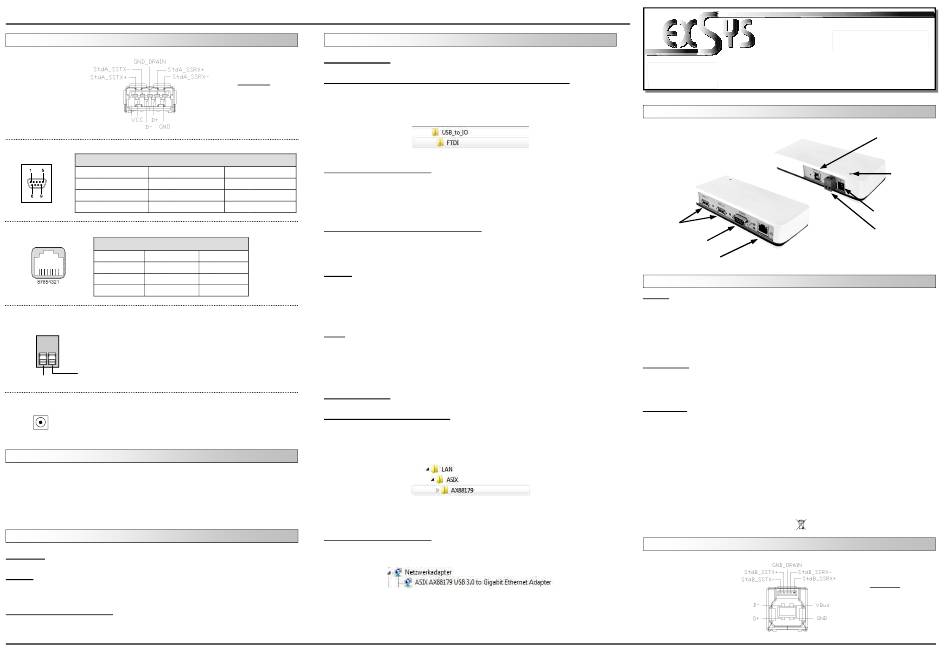

CONNECTORS
USB 3.0 A-Port:
RS-232 Connector:
Serial 9 Pin D-SUB Connector
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
RJ45 Connector:
RJ45 Connector
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
+7V ~ 24V T-Block:
ATTENTION!!!
Never connect power to GND it will destroy your Hardware!!!
GND (Ground)
+7V ~ 24V
12 Volt Connector:
ATTENTION!!!
Use only with included power supply!!!
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1315IS. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-1315IS USB to the USB A-Port at the your PC.
2. When you are ready you can start your PC and continue with the point Driver Installation.
DRIVER INSTALLATION
USB 3.0
All OS
After the hardware installation, the OS will recognize the device automatically and install the
drivers.
CHECK INSTALLED DRIVER
Open as sample the >Device manager< . Now you should see at „USB Devices" the following
new entry: <Generic USB Hub>.
5
English English English EX EX EX- - - 1315IS 1315IS 1315IS
DRIVER INSTALLATION
Serial RS-232
Windows 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx
Attention!
Windows will recognize a new „FT232R USB UART" and open the hardware assistant. Please
Never plug in with
choose manual installation and put the driver CD into your CD-ROM drive. Do not start the
force or in wrong
automatically search for the driver. Please select the correctly driver in the FTDI folder for your
direction.
operating system (see picture).
CHECK INSTALLED DRIVER
Signal Pin Signal
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
DTR 7 RTS
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one more
8 CTS new „USB Serial Port (COM2)" entry and also you will find under „Universeller Serieller Bus
Controller" one new „USB Serial Converter". If you see this or similar entries the module is
DSR 9 RI
installed correctly.
CHANGE PORT NUMBER (NOT WIN98 & ME)
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can choose between COM3 up to
COM256.
Pin Signal
7 BI_DD+
LINUX
8 BI_DD-
There are drivers
"D:\USB_to_IO\FTDI\Linux x86_64" on the driver CD. They are supported by the most ver-
sions of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual for stan-
dard I/O ports from your Linux version!
MAC
There are
"D:\USB_to_IO\FTDI\MAC OSX or Mac_OS_9_8" on the driver CD. They are supported by
the most versions of MAC OS. Because each individual version of MAC OS is different, sadly
we cant provide a installation instruction. Please refer to the installation manual for standard I/O
ports from your MAC OS version!
Ethernet LAN
Windows XP/ Vista/ 7/ 8.x/ 10
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver should not be installed automatically, please insert the Driver CD into your
CD-Rom drive (e.g. Drive D:) and open the folder for your operating system which is in the
folder „AX88179" (see picture).
Now start the „setup" file which is in the „AX88179" folder. Follow the installation instructions
and complete the installation.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ethernet Adapter" the following new
entry:
If you see this or a similar information the device is installed correctly.
available for Linux. The drivers are located
drivers available for MAC. The drivers are located
6
English English English
Anleitung
Anleitung
Vers. 1.0 / 30.09.15
AUFBAU
2 x USB 3.0 A-Buchse
9 Pin Seriell RS-232 Stecker
RJ45 Anschluss mit Status LED´s
BESCHREIBUNG & TECHNISCHE DATEN
in the folder
USB 3.0
Die EX-1315IS ist ein USB 3.0 HUB für bis zu 2 Endgeräte. Die EX-1315IS ist mit 2 USB 3.0
Ports für Endgeräte und 1 USB 3.0 Port für den Anschluss an den PC ausgestattet. Er unter-
stützt alle USB Anschlüsse von 1.1 bis 3.1. Über die externe Stromversorgung per Netzteil
können an jedem Port 900mA zur Verfügung gestellt werden. Die EX-1315IS gewährleistet so
eine sichere Datenübertragung und exzellente Performance von bis zu 5000Mbit pro Sekunde!
in the folder
Er unterstützt den self powered und bus powered Modus.
Seriell RS-232
Die EX-1315 ist ein Modul zur Umsetzung von USB 3.0 auf eine RS-232 Schnittstelle (2.5KV
Surge Protection und 15KV Optical Isolation) mit FIFO 16C550 Port für den Anschluss von
High Speed Seriellen RS-232 Peripherie Geräten (z.B. Modem, Plotter usw.).
Ethernet LAN
Die EX-1315IS ist mit einem RJ45 Port ausgestattet. Die EX-1315IS ermöglicht Ihnen auf
einfachste Weise Ihren Desktop PC oder Ihr Notebook in ein 10/100/1000Mbps Netzwerk
einzubinden oder ein Endgerät anzuschließen. Die EX-1315IS gewährleistet eine sichere
Datenübertragung und exzellente Performance von bis zu 5Gbit pro Sekunde auf der USB
Schnittstelle! Der RJ45 Anschluss wird durch einen ASIX Chipset unterstützt.
Kompatibilität: USB 1.1, 2.0, 3.0 & 3.1 / TCP/IP 10/100/1000
Betriebssysteme: WIN 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux/ MAC
Anschlüsse: 1x USB 3.0 B-Buchse, 2x USB 3.0 A-Buchse, 1x 9 Pin D-SUB Stecker,
1x RJ45 Ethernet Anschluss, 1x T-Block 7-48V, 1x 12V/3A Buchse
Lieferumfang: EX-1315IS, Treiber CD, Anleitung, USB Kabel, Netzteil 12V/3A,
DIN-RAIL Kit
Zertifikate: CE / FCC / RoHS / WEEE
ANSCHLÜSSE
USB 3.0 B-Buchse:
EX - 1315IS
EX - 1315IS
USB 3.0 B-Buchse
Betriebs LED
12V/3A DC Buchse
Terminal Block +7V~+48V
DE97424562
Achtung!
Stecker niemals
umgekehrt oder mit
Gewalt einstecken.
