7.10
Mounting reference plates
on the clamps
The reference bubble must al-
ways be at the top on the side of
the clamp lever. This position de-
termines the assignment of the
clamps to the wheels: left or right
side of the vehicle.
Clamping clip:
Support clip:

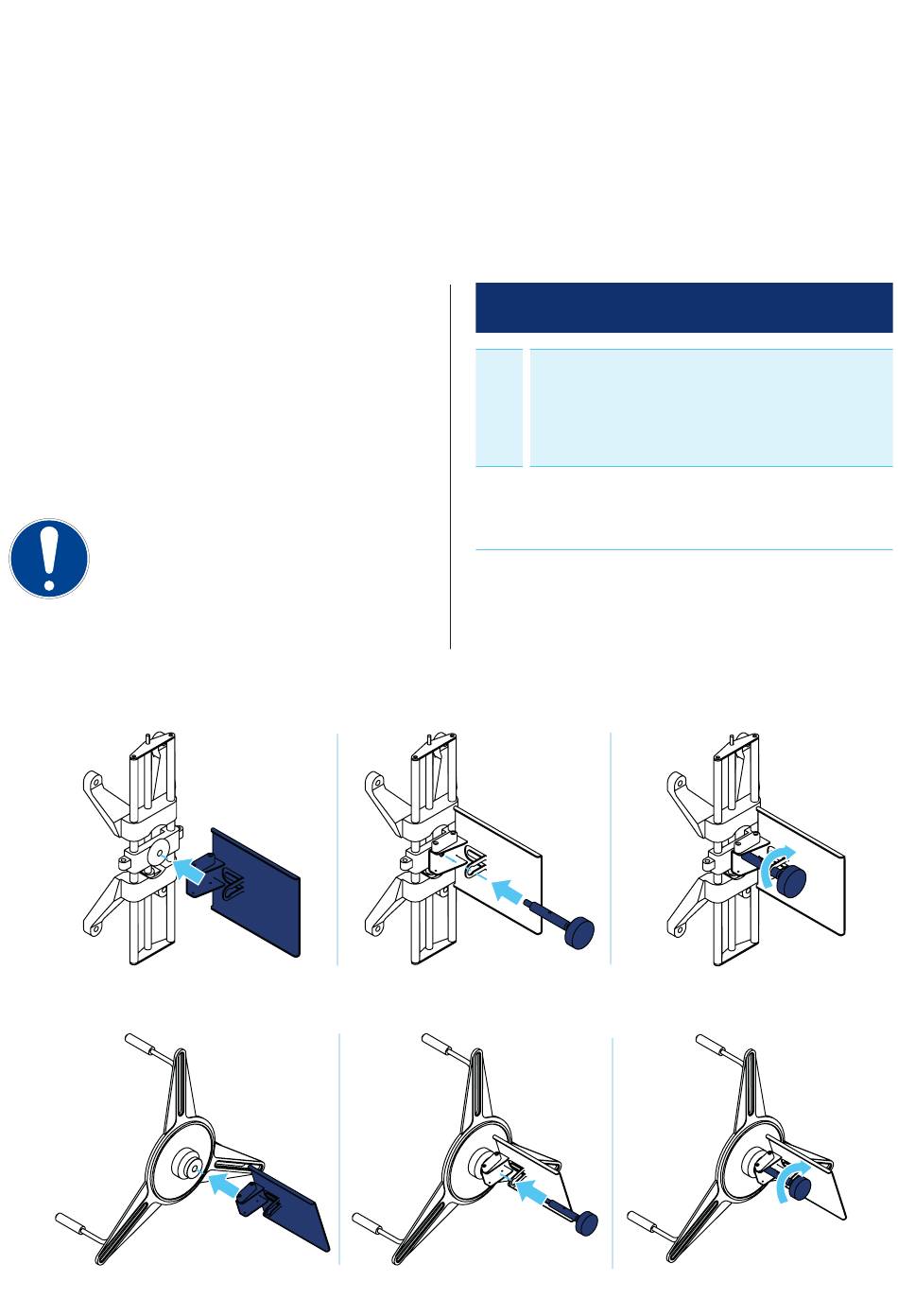

Mounting reference plates on the clamps

1 Insert the reference target fixing pin
into the through hole and screw it to
the clamps
2 Place the clamps (ready to use) on the
supports for their parking position
31
