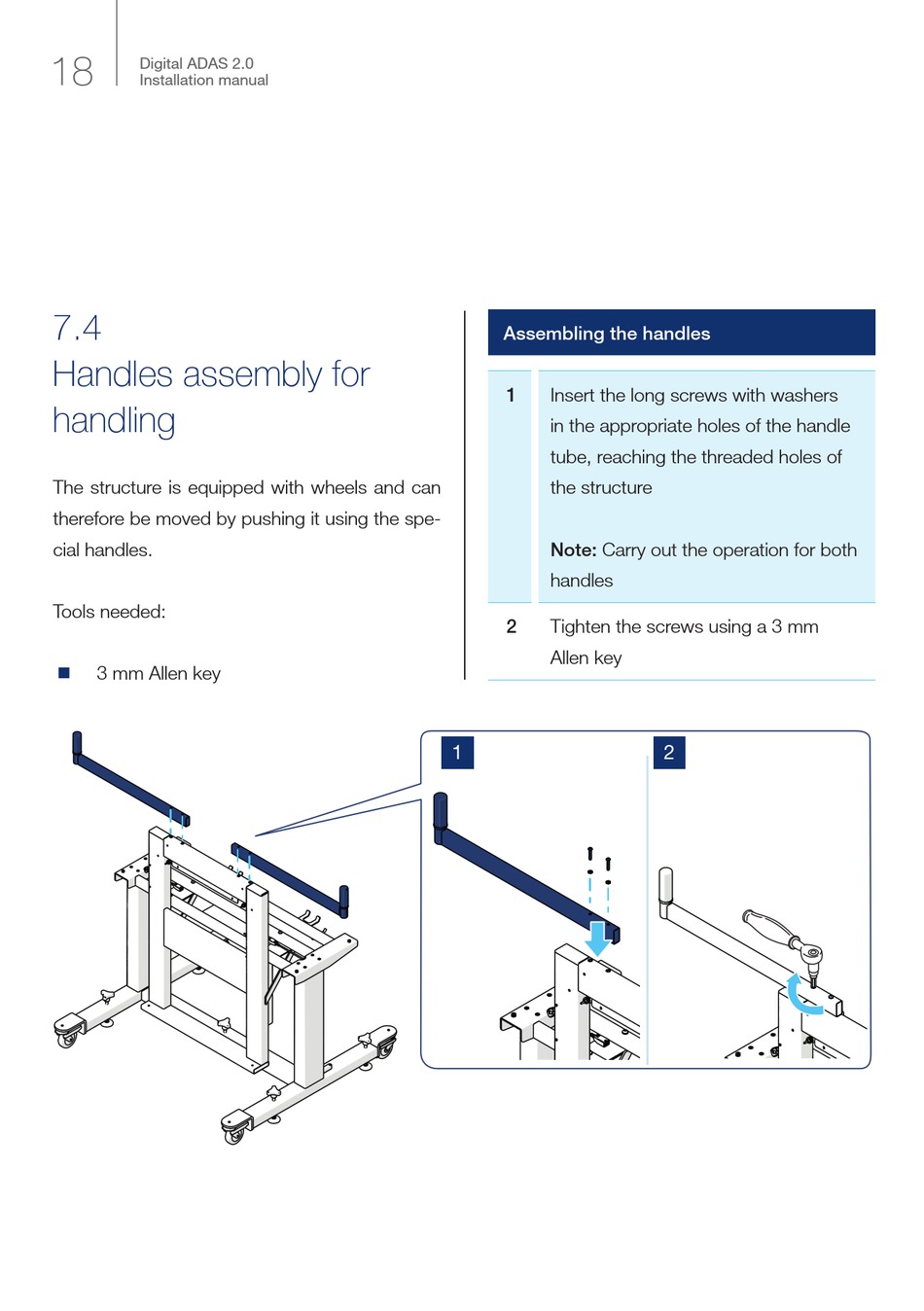

Digital ADAS 2.0
Installation manual
7.4
Handles assembly for
handling
The structure is equipped with wheels and can
therefore be moved by pushing it using the spe-
cial handles.
Tools needed:
3 mm Allen key
n
Assembling the handles
1 Insert the long screws with washers
in the appropriate holes of the handle
tube, reaching the threaded holes of
the structure
Note: Carry out the operation for both
handles
2 Tighten the screws using a 3 mm
Allen key
1 2
