7.3

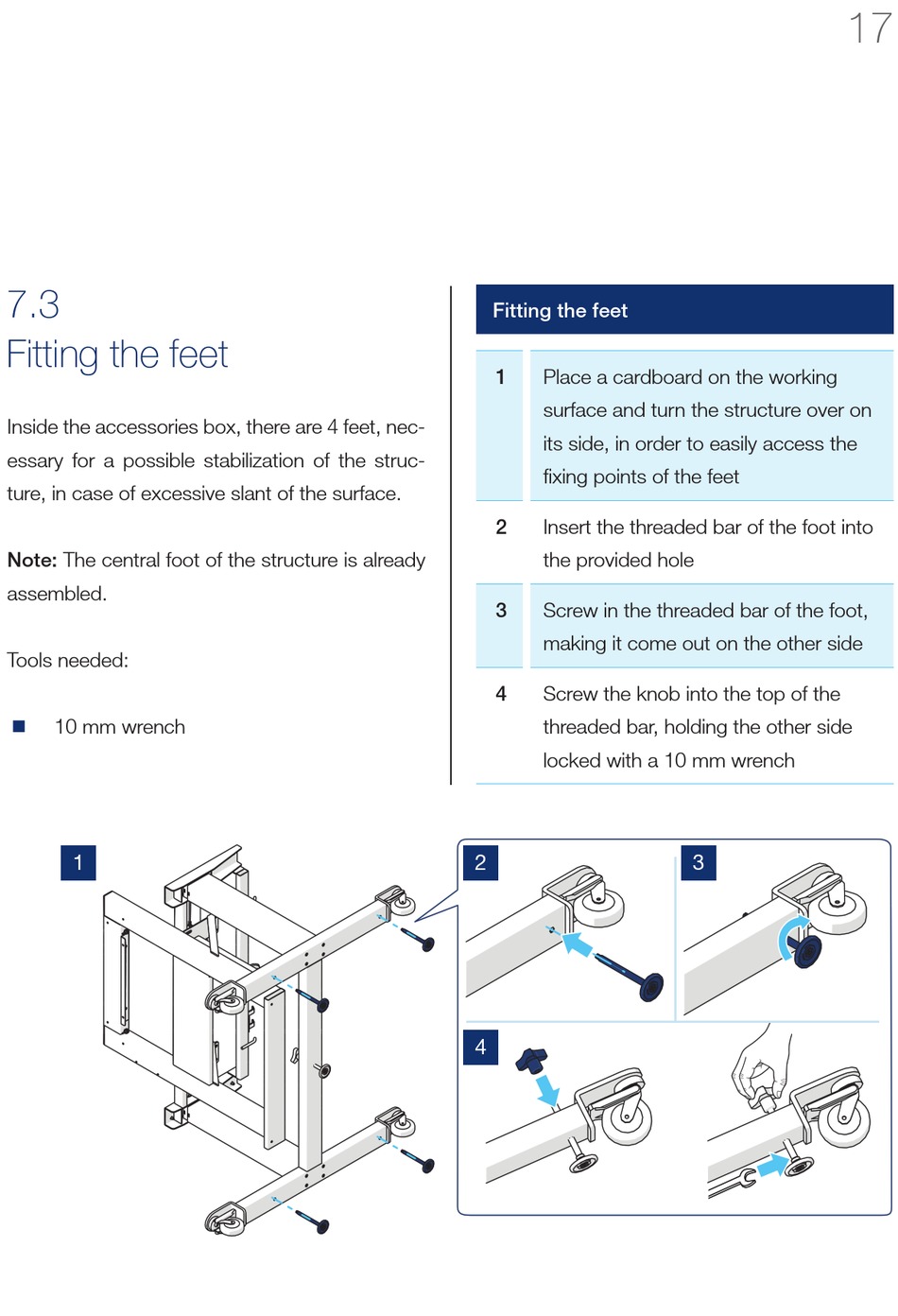

Fitting the feet

Inside the accessories box, there are 4 feet, nec-
essary for a possible stabilization of the struc-
ture, in case of excessive slant of the surface.
Note: The central foot of the structure is already
assembled.
Tools needed:
10 mm wrench
n
1
Fitting the feet
1 Place a cardboard on the working
surface and turn the structure over on
its side, in order to easily access the
fixing points of the feet
2 Insert the threaded bar of the foot into
the provided hole
Screw in the threaded bar of the foot,
3
making it come out on the other side
Screw the knob into the top of the
4
threaded bar, holding the other side
locked with a 10 mm wrench
2
4
17
3
