GB
5

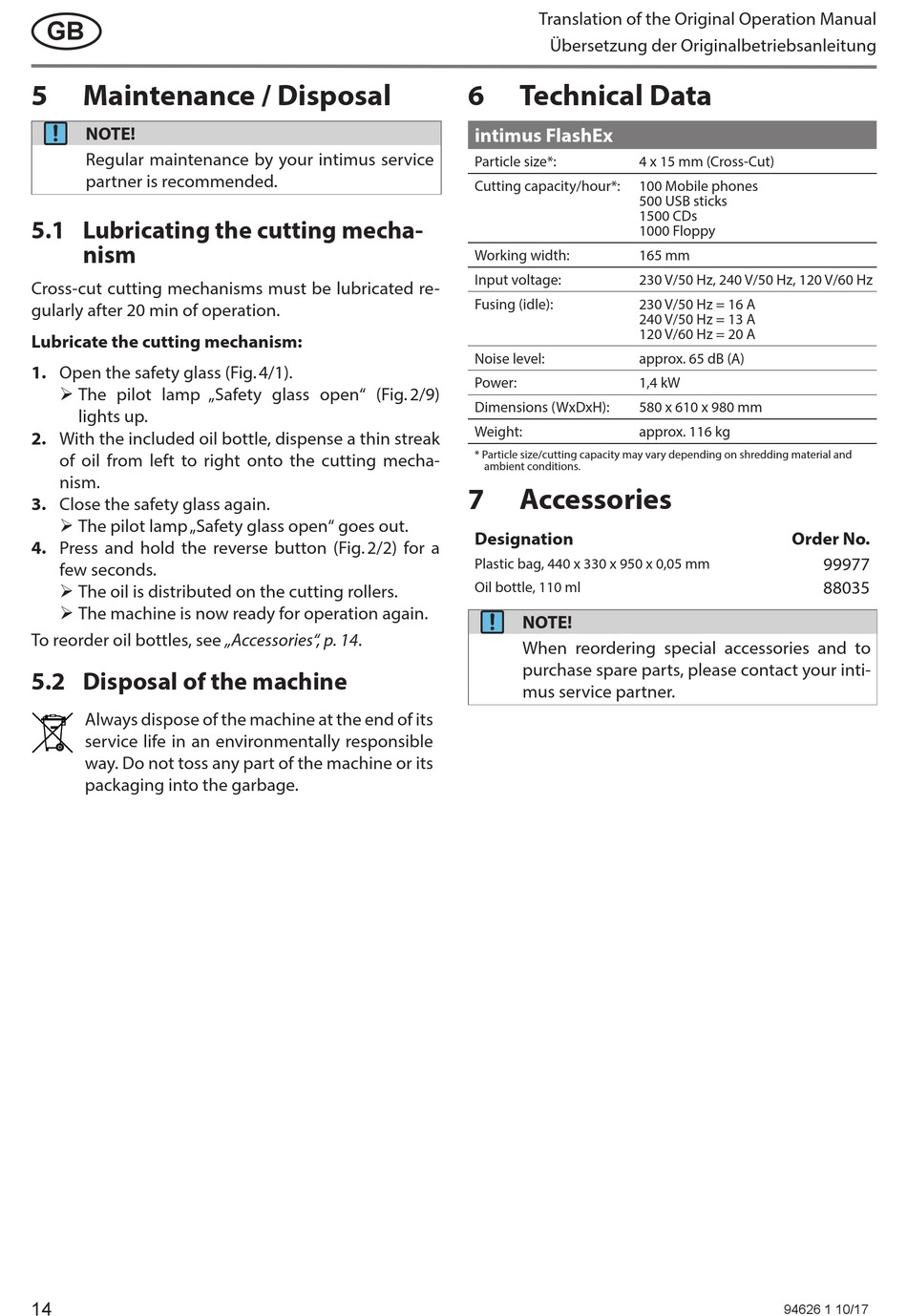

Maintenance / Disposal
NOTE!
Regular maintenance by your intimus service
partner is recommended.
5 .1 Lubricating the cutting mecha-
nism
Cross-cut cutting mechanisms must be lubricated re-
gularly after 20 min of operation.
Lubricate the cutting mechanism:
1 . Open the safety glass (Fig. 4/1).
¾ The pilot lamp „Safety glass open" (Fig. 2/9)
lights up.
2 . With the included oil bottle, dispense a thin streak
of oil from left to right onto the cutting mecha-
nism.
3 . Close the safety glass again.
¾ The pilot lamp „Safety glass open" goes out.
4 . Press and hold the reverse button (Fig. 2/2) for a
few seconds.
¾ The oil is distributed on the cutting rollers.
¾ The machine is now ready for operation again.
To reorder oil bottles, see „Accessories", p. 14.
5 .2 Disposal of the machine
Always dispose of the machine at the end of its
service life in an environmentally responsible
way. Do not toss any part of the machine or its
packaging into the garbage.
14
Translation of the Original Operation Manual
Übersetzung der Originalbetriebsanleitung
6
Technical Data
intimus FlashEx
Particle size*:
4 x 15 mm (Cross-Cut)
Cutting capacity/hour*:
100 Mobile phones
500 USB sticks
1500 CDs
1000 Floppy
Working width:
165 mm
Input voltage:
230 V/50 Hz, 240 V/50 Hz, 120 V/60 Hz
Fusing (idle):
230 V/50 Hz = 16 A
240 V/50 Hz = 13 A
120 V/60 Hz = 20 A
Noise level:
approx. 65 dB (A)
Power:
1,4 kW
Dimensions (WxDxH):
580 x 610 x 980 mm
Weight:
approx. 116 kg
* Particle size/cutting capacity may vary depending on shredding material and
ambient conditions.
7
Accessories
Designation
Plastic bag, 440 x 330 x 950 x 0,05 mm
Oil bottle, 110 ml
NOTE!
When reordering special accessories and to
purchase spare parts, please contact your inti-
mus service partner.
Order No .
99977
88035
94626 1 10/17
