Instruction manual SDK 85 CKR
__________________________________________________________________________
4. Description of the hydraulic cutting tool

4.1. Description of components

The hydraulic cutting tool SDK85CKR consists of the following components:

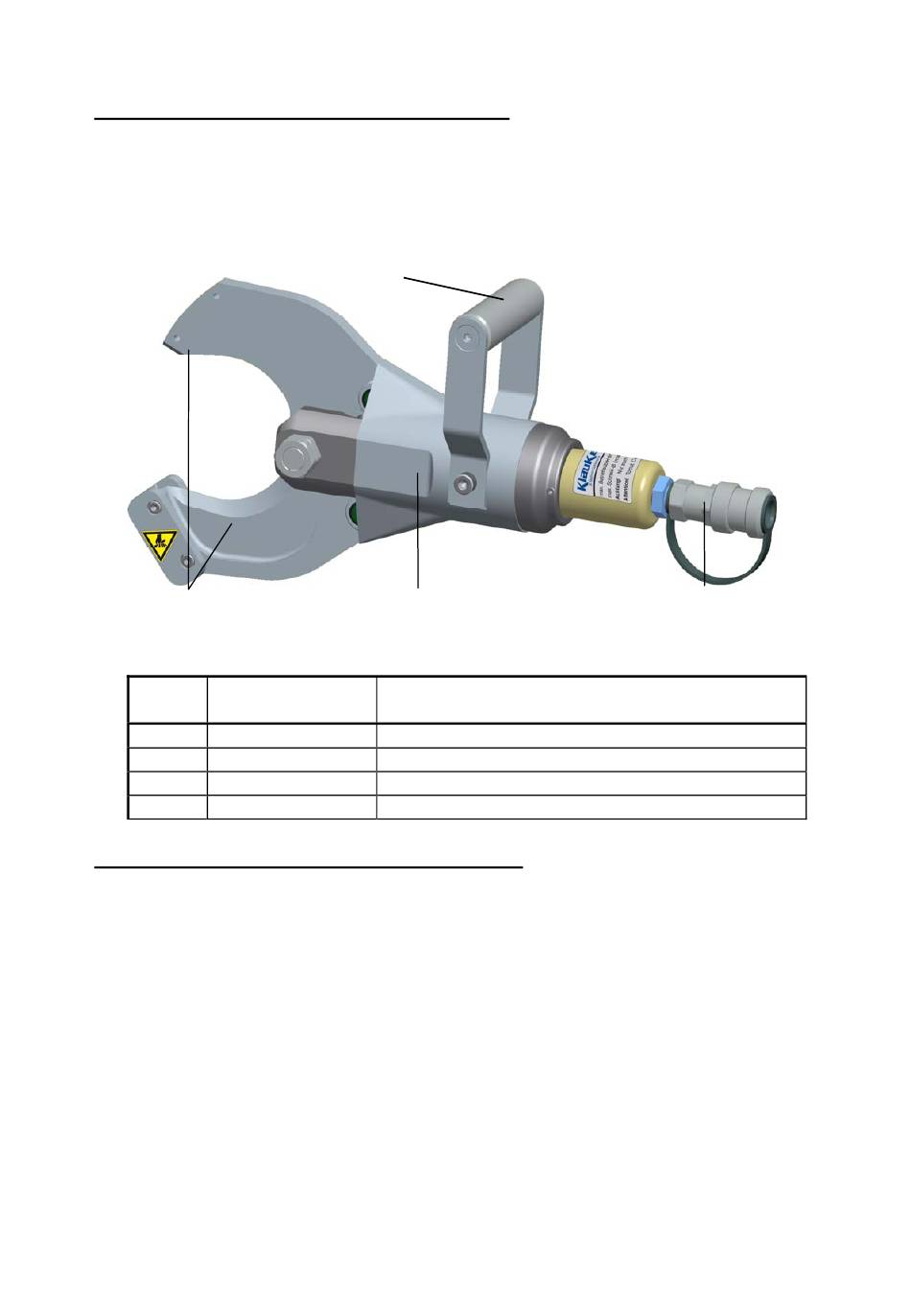

picture 1
cutting blades
Pos.-No. 1
Table 1
Pos.-
Description
No.
1
Blades
2
Cutting head
3
Handle
4
Coupling

5. Remarks in respect to the determined use

The pump must be positioned on an even surface with a max. angle of 15°.
In combination with a 2 m high pressure hose it is not possible to work in a cable trench.
For this application you need at least a 3m pressure hose.

5.1. Operation of the unit

1.) Roll out the hose completely.
2.) Connect the cutting head (Pos.-No. 2) to the high pressure hose.
3.) Bring the cutting head into a proper cutting position. The blades should cut the cable
in a vertical position to avoid undesired shearing forces.
4.) Actuate the pump until the blades completely overlap and the cable is completely cut.
All manuals and user guides at all-guides.com
carrying handle
Pos.-Nr. 3
cutting head
Pos.-No. 2
Function
two sickle-shaped blades to cut the cables/conductors
Body of the working unit
Carrying grips to move and position the unit
Leakage-free hydraulic coupling
page 8
coupling
Pos.-No. 4
