Transport and storage
Mounting / installation
Connection cross-section
solid
finely stranded
Note
Tightening torque
7
Transport and storage
Transport and storage are only permitted in the original packaging.
The devices must be stored in a dry place and vibration-free.
8
Installation

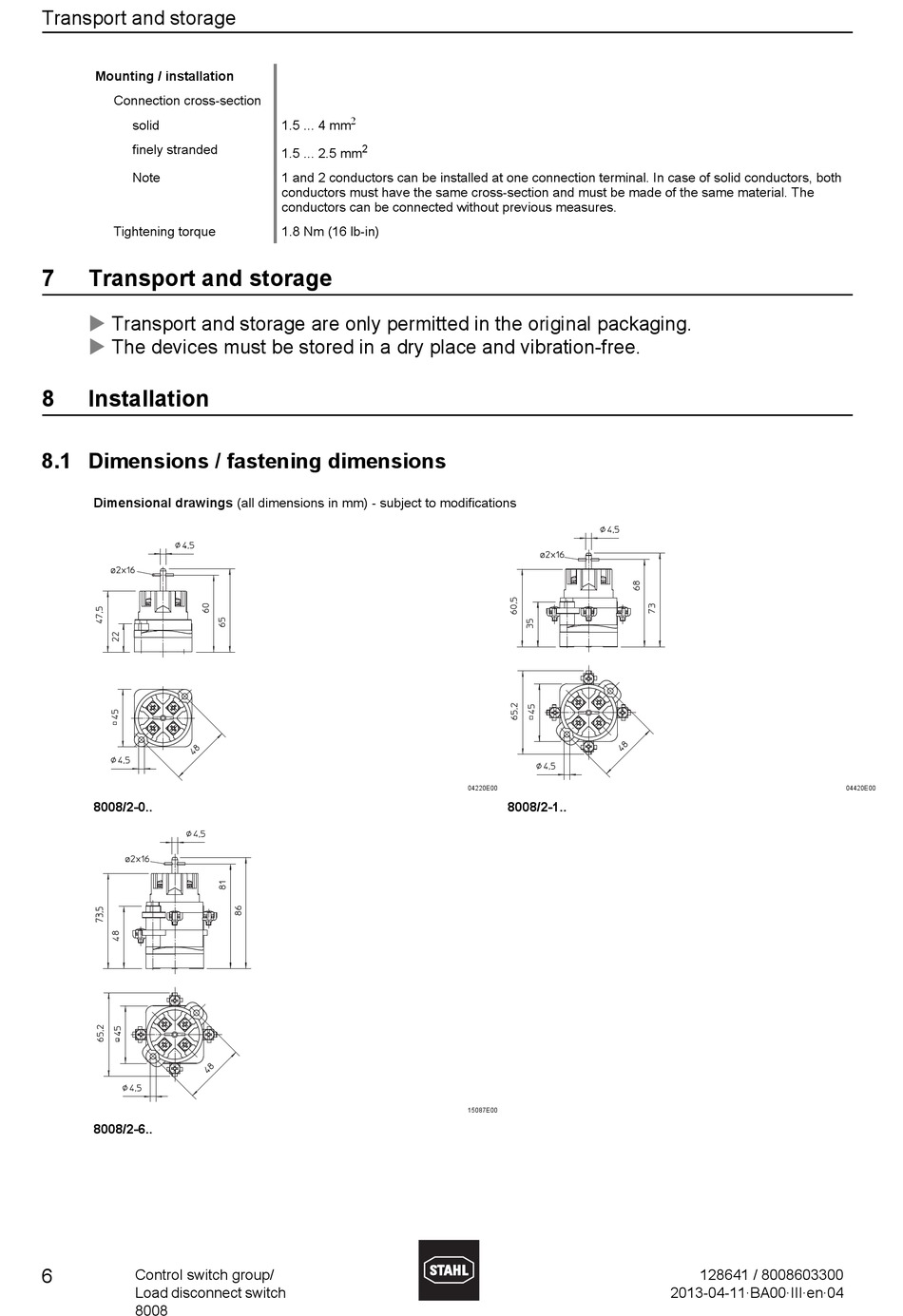

8.1 Dimensions / fastening dimensions
Dimensional drawings (all dimensions in mm) - subject to modifications
8008/2-0..
8008/2-6..
6
Control switch group/
Load disconnect switch
8008
1.5 ... 4 mm
2
1.5 ... 2.5 mm
1 and 2 conductors can be installed at one connection terminal. In case of solid conductors, both
conductors must have the same cross-section and must be made of the same material. The
conductors can be connected without previous measures.
1.8 Nm (16 lb-in)
04220E00
8008/2-1..
15087E00
128641 / 8008603300
2013-04-11·BA00·III·en·04
04420E00
