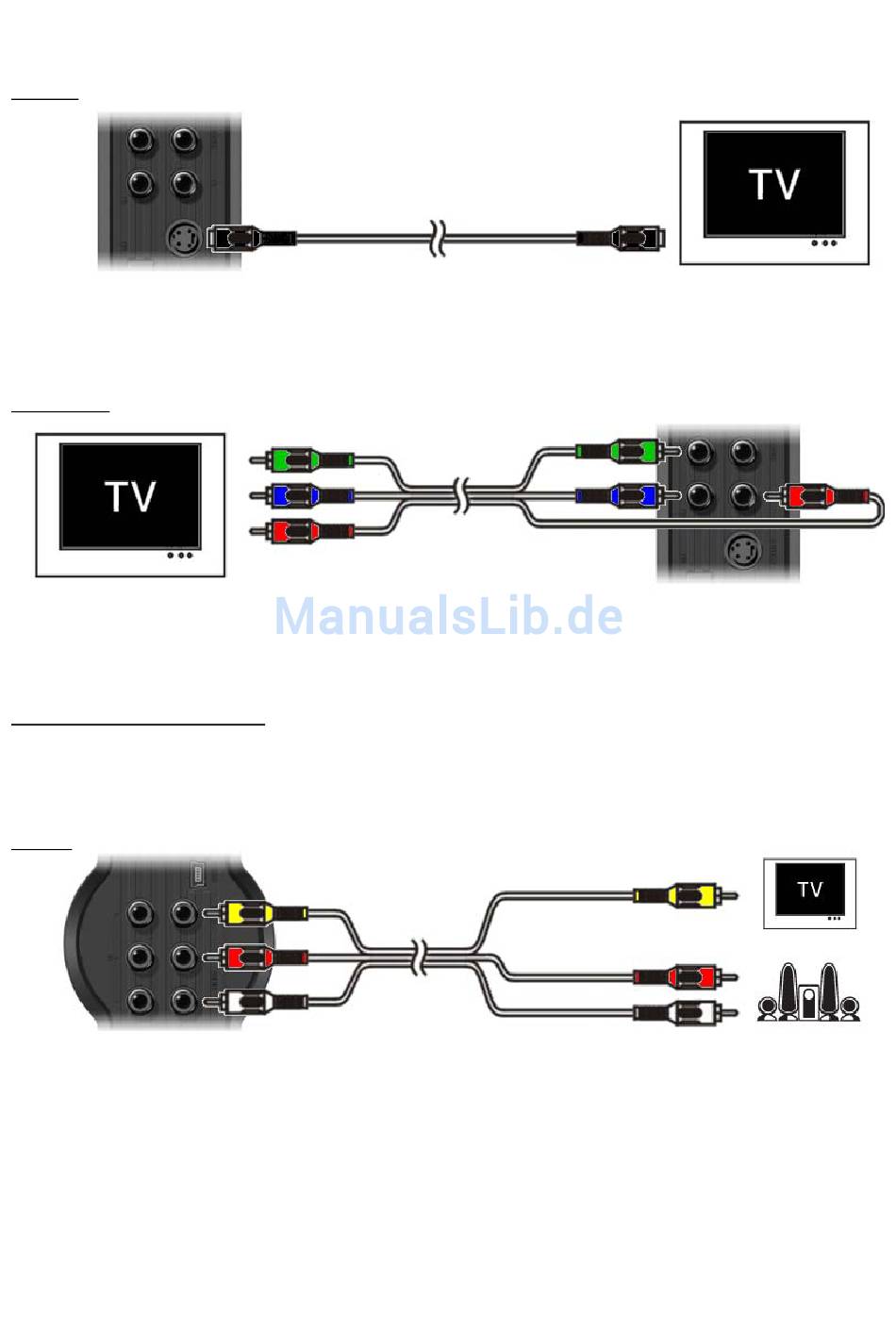

S-Video:
•
Connect the S-Video cable to the S-Video jack of the unit.
•
Connect the other end of the S-Video cable to the S-Video Input on your TV.
Component:
•
Connect the Component Cable (Red, Green, and Blue) to the Component Jacks on the unit.
•
Connect the other end of the Component cable to the Component Jacks on your TV.
Connecting the Audio Cable(s)
You can connect the unit to your TV and/or your home cinema system in 2 different ways:
- Analog, through the RCA Audio Jacks of the A/V Output
- Digital, Through the Coaxial Digital SPDIF Output
Analog:
•
Connect the Audio Jacks (Red, White) of the Composite cable to the RCA Audio Jacks of the A/V Output.
•
Connect the other end of the Composite cable to the RCA Audio Jacks of your TV or Receiver.
