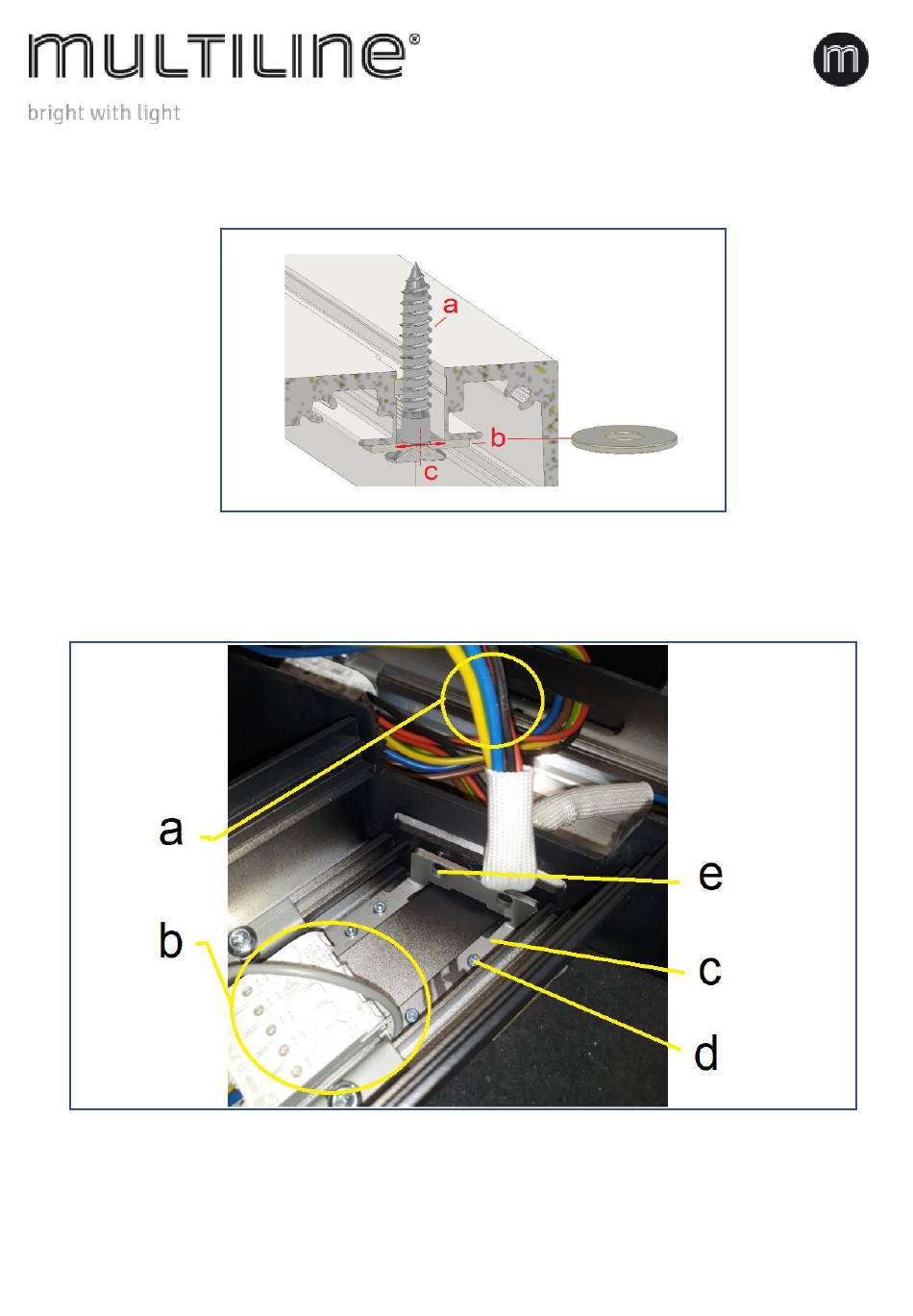

Preferably use chipboard screws (a) and plugs, in combination with a 15 mm body washer (b) with a 5.3 mm hole.
This way, a countersunk screw has less influence on the position of the profile, but this profile can be moved a few
mm to the left or right (c). This allows the profiles to be screwed in one line. Not applicable for pendant mounting.
8.
The LED boards can be reconnected and clicked into the profile. The connection between the profiles is made with
the bracket (c), which is held in place by screws (d). Mount the profile with this bracket and with bolts (e) in the
recess in the other profile and use a flexible or angled screw bit holder. Pull both profiles together. Insert the wiring,
which has been made in excess (a), through the opening and then connect it to the terminals (b) of the next profile.
Find the color code and function of the wires on the wiring diagram.
9.
Finally, place the diffusers back in the profiles and make sure that they fit well in the intersections. The diffusers can
expand a little bit due to heat.
