GB : Mounting instruction for installation of profiles at an angle

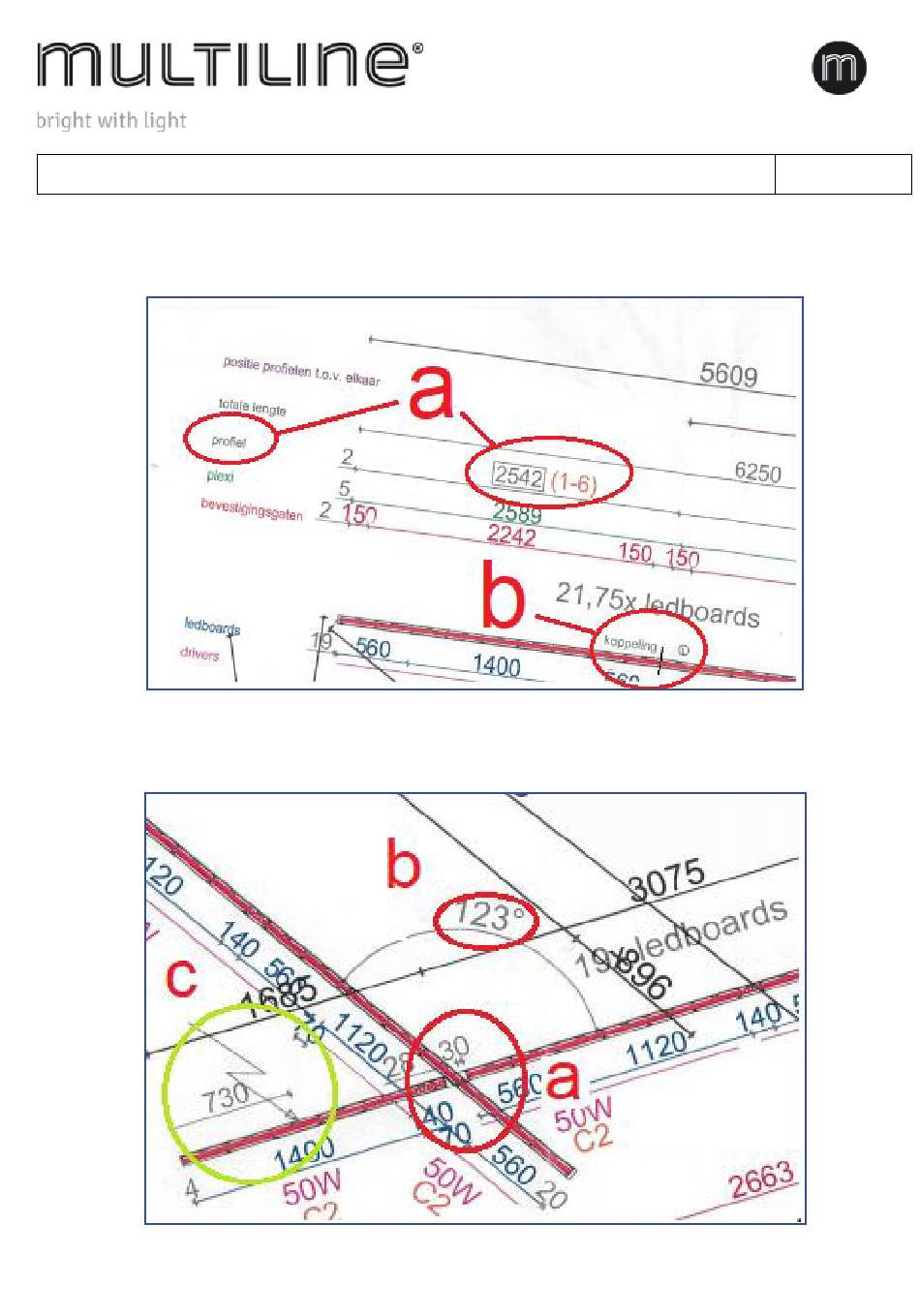

1.
Make sure that all profiles are included in the package. Each profile has its own number (a) and can be found on the
plan along with its specific length (in the box). Multiple identical configurations, such as in this example (6 pieces),
are indicated with (1–6). Multiple profiles in one line are indicated by "coupling" (b).
2.
The intersections (a), where the profiles meet at a specific angle, are indicated by the degrees of the angle (b). The
recesses in the main profiles are based on that angle. The entrance of the power supply (c) is indicated by a lightning
symbol. The diffuser (plexi) of one profile will continue in this intersection until it meets the diffuser of the other
profile, in order to avoid an opening.
2
48.01115000-0000
