5.

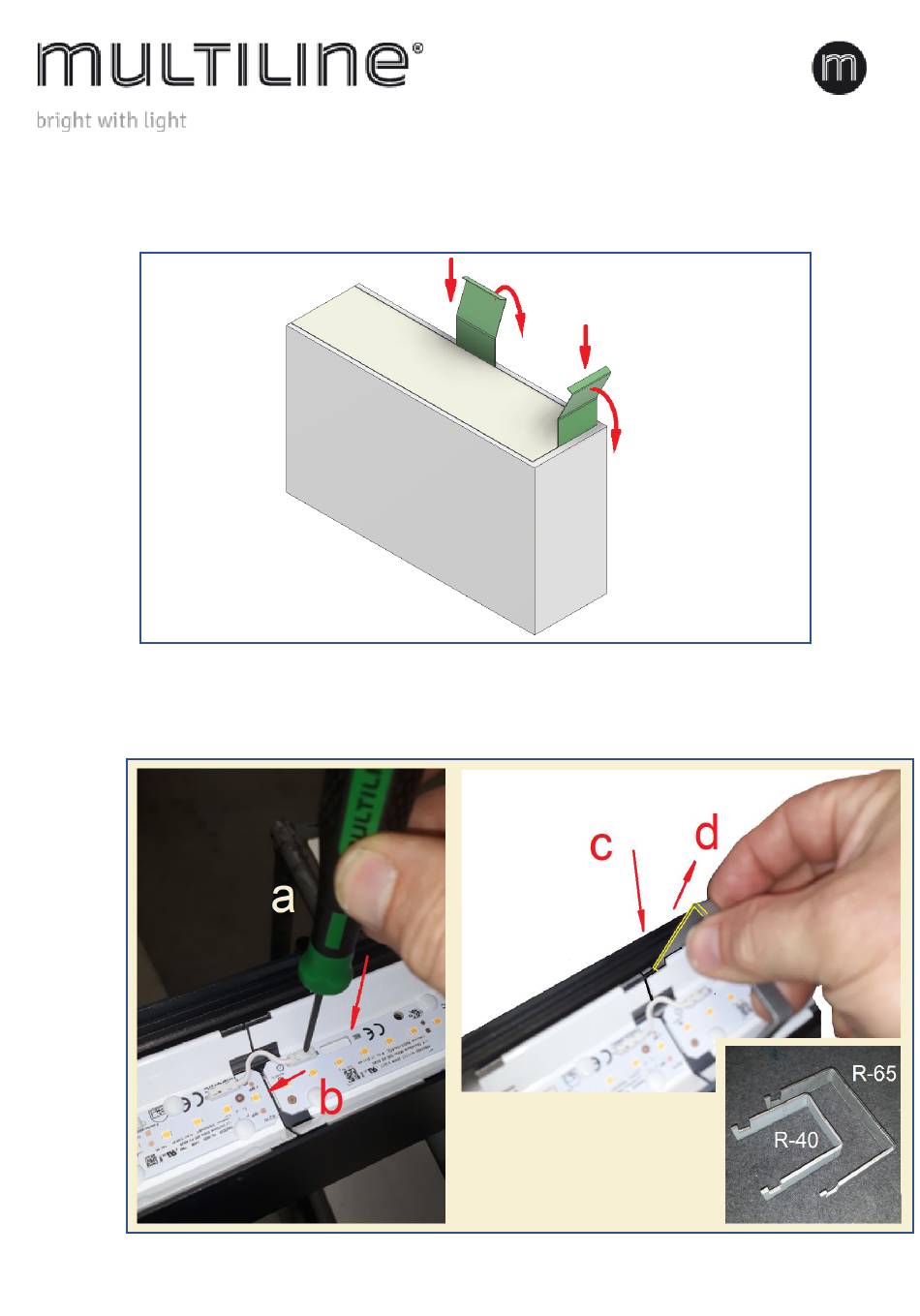

Start mounting the profile from the side where the power supply is located. Turn the profiles with the diffusers
(plexi) upwards. Remove the diffuser with the green tool. Place the tool between the diffuser and the profile and
press it lightly in between. Next, move the tool outwards and remove the diffuser. For pendant mounting, only the
sides of the intersections have to be opened.
6.
Then, if necessary, disconnect the LED modules with a release tool (a) and slide the wiring out of the clamp (b). Next,
insert the bracket (c) into the recess at the end of the LED module and take it out (d) by pulling it diagonally upwards.
This way you can reach the mounting holes.
4
