3.

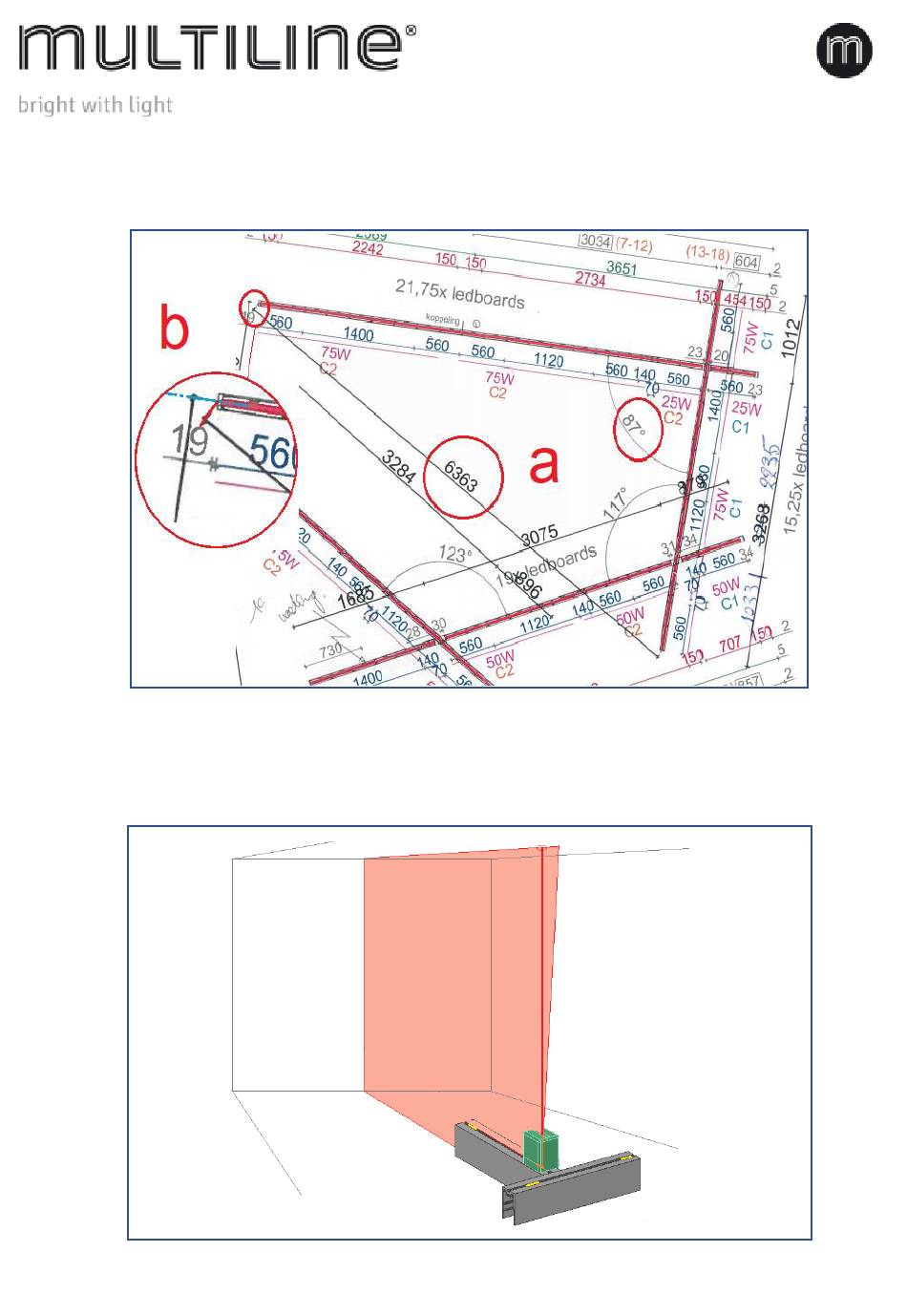

Place the profiles out on the floor in preparation of the installation, with the mounting side up. Please note that the
drawing is made from a top view. Additional dimensions (a) are visible on the drawing in order to verify the
configuration. The dimension (b) is measured from the center of the profiles.
4.
Place a laser with the spot function on the mounting hole located on the the mounting side of the profile, and bring
these holes one by one over to the ceiling. Check the location of the holes on the ceiling, by setting the laser to line
function, to verify if all points are in line. This ensures a smooth installation. Use the same method for pendant
mounting.
3
