Block Diagram PUC2 Mic LEA

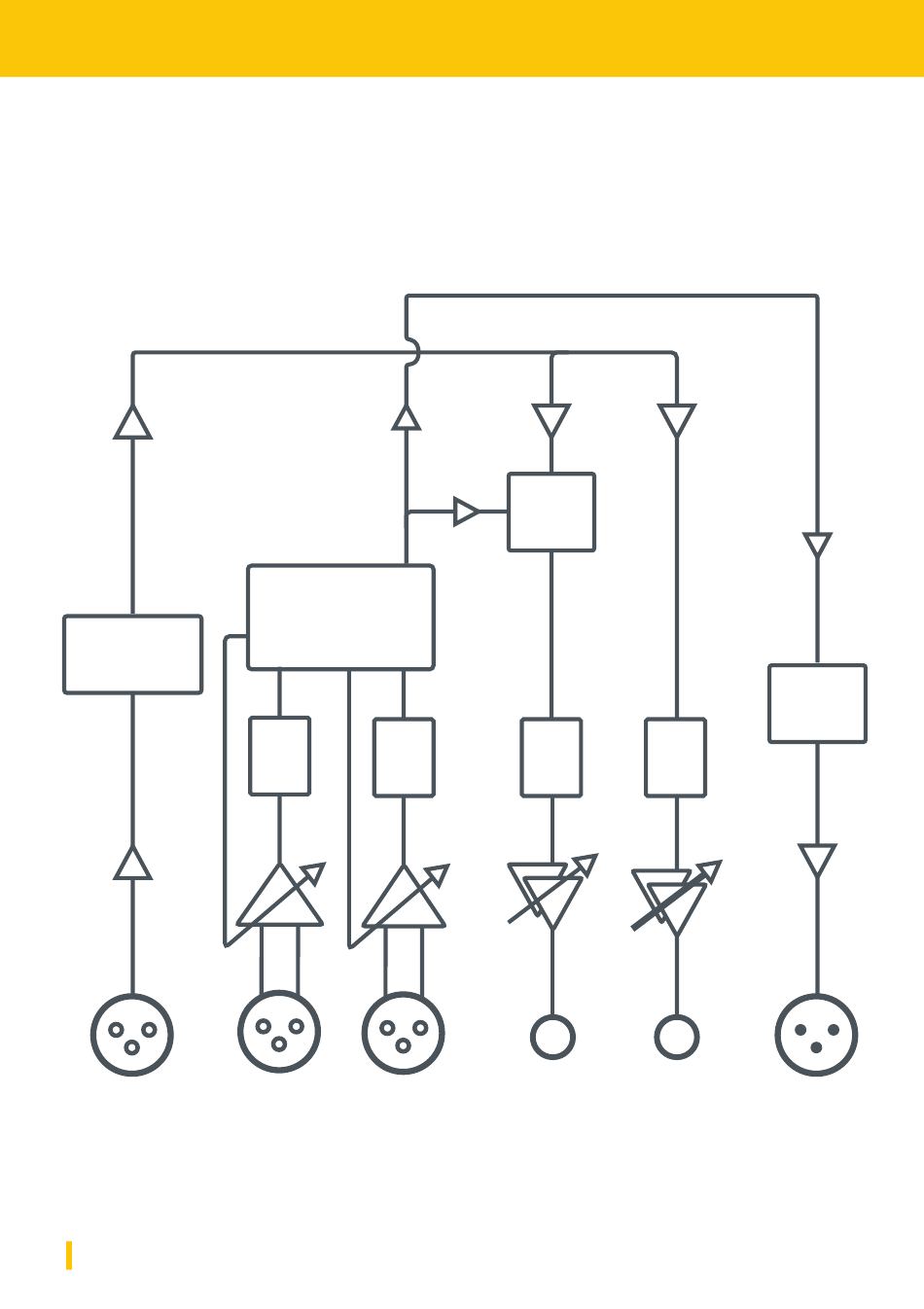

This block diagram of PUC2 Mic LEA gives a detailed overview of PUC2 Mic
LEA's internals in standalone (non USB) mode.
*Please note that Digital In and Digital Out switched places.
AES3
Input
Decoder
AES3
Digital In
30
LEA Engine
LEA Engine
Level Enhanced
Level Energy
Arbitration
Automation
A/D
A/D
Conv
Conv
1 2
Mic Inputs
monitor
mix
DAC DAC
H/P Out Speaker Out
Analog Outputs
AES3
Output
Decoder
AES3/SPDIF
Digital Out
