Block Diagram PUC2 Mic LEA

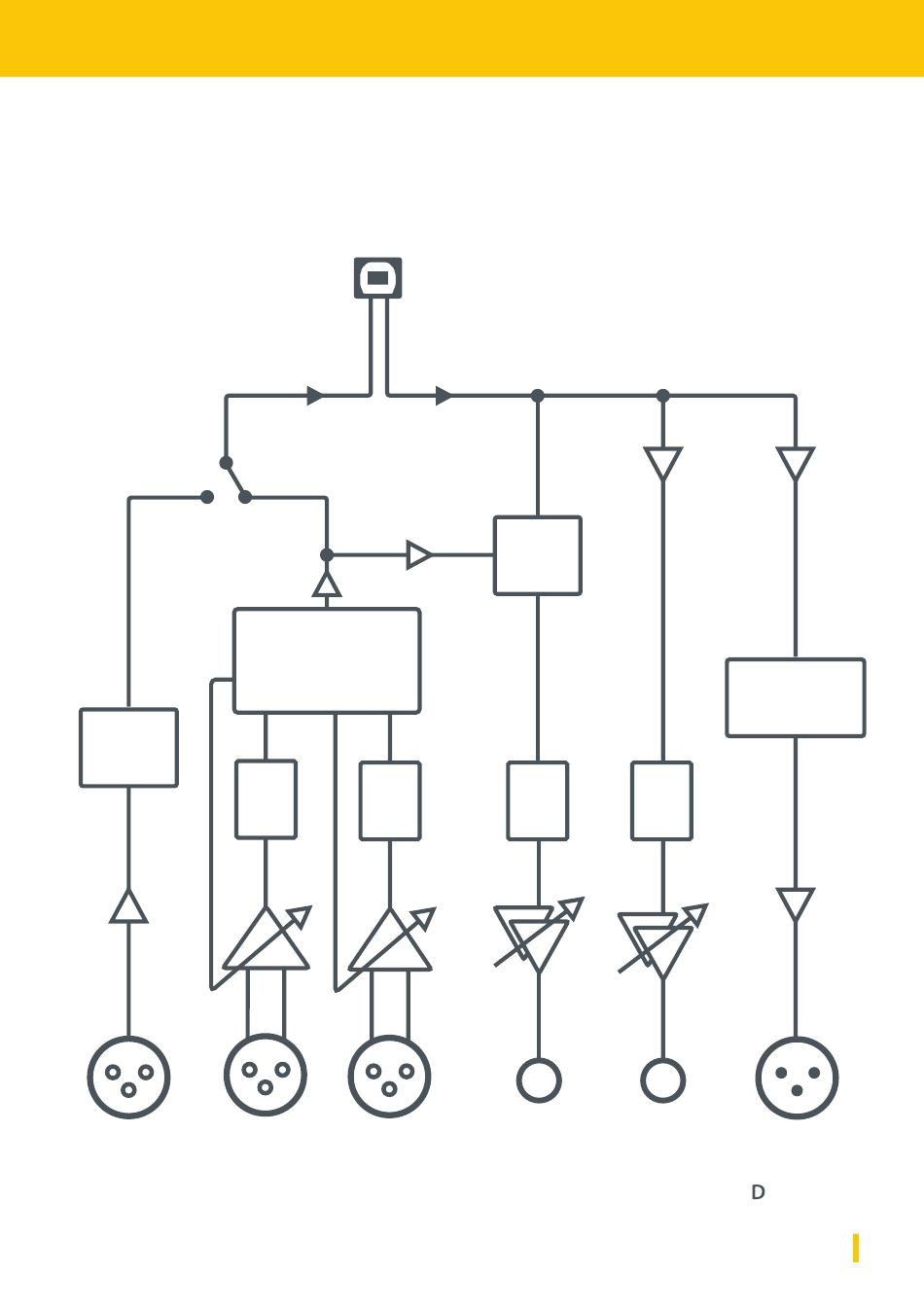

This PUC2 Mic LEA block diagram gives a detailed overview of
PUC2 Mic LEA's internals in PC/USB Mode.
Auto
AES3
Input
Decoder
AES3/SPDIF
Digital In
USB
LEA Engine
LEA Engine
Level Energy
Level Enhanced
Arbitration
Automation
A/D
A/D
Conv
Conv
2
1
Mic Inputs
monitor
mix
DAC DAC
H/P Out Speaker Out
Analog OutputsD
AES3
Output
Decoder
AES3
igital Out
