PUC2 Line

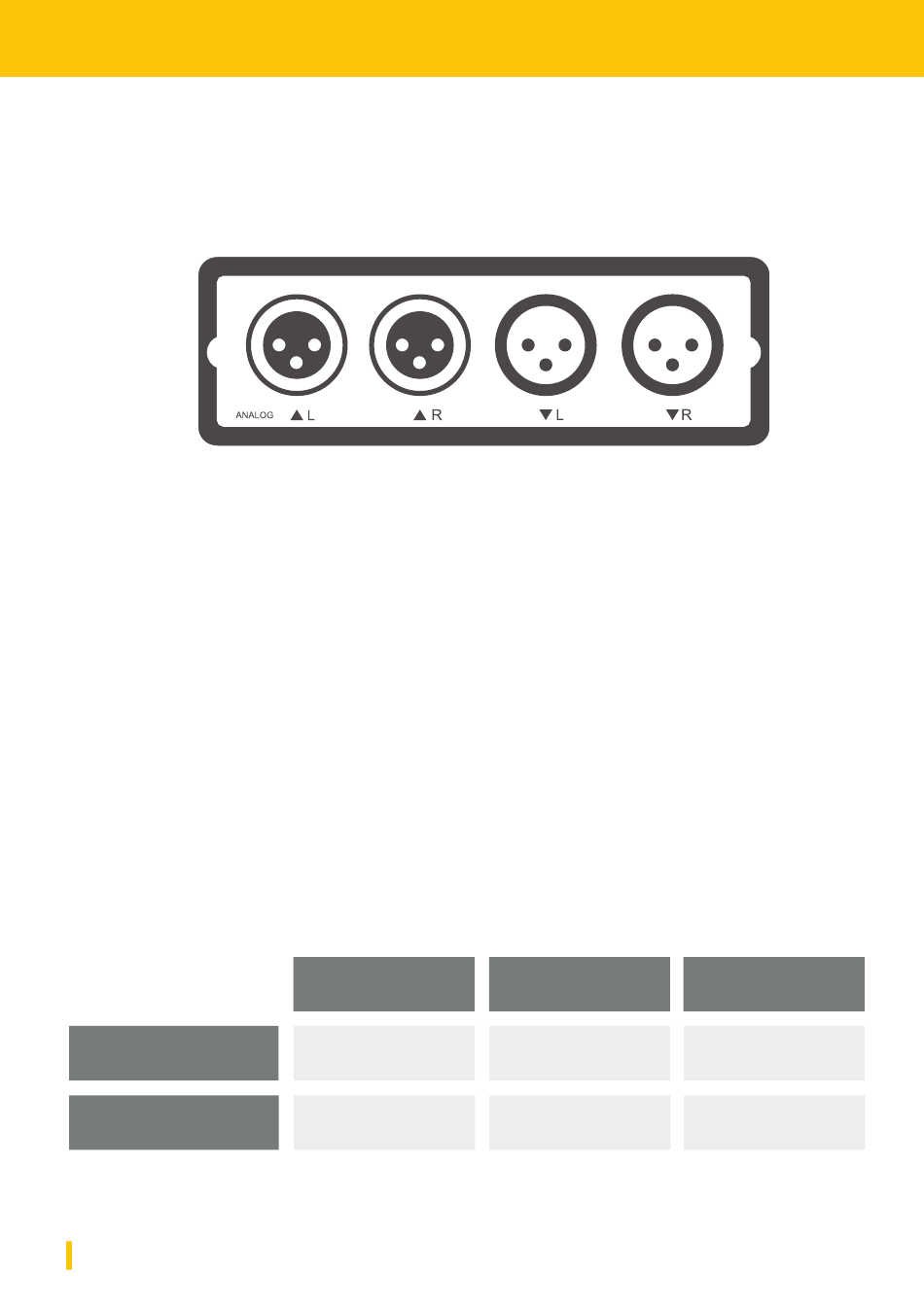

PUC2 Line Rear Panel
Analog
The balanced analog line
inputs are located on the
rear panel of PUC2 Line.
When an AES-3 signal is
present on the front
panel, the analog input
will be muted.
*Due to different standards of reference levels, PUC2 Line
comes either leveled for international or for German standards.
German Reference Levels
Int'l ReferenceLevel
22
Input*
Input + Output @FS
+ 15 dBU
+ 18 dBU
Analog Output*
The balanced analog line
output operates in parallel
to the AES-3 output and
is always on. Make sure
that the correct levels are
selected for the digital
headroom. See page 11.
Headroom
- 9 dB FS
- 14 dB FS
Rated Input + Output
+ 6 dBU
+ 4 dBU
