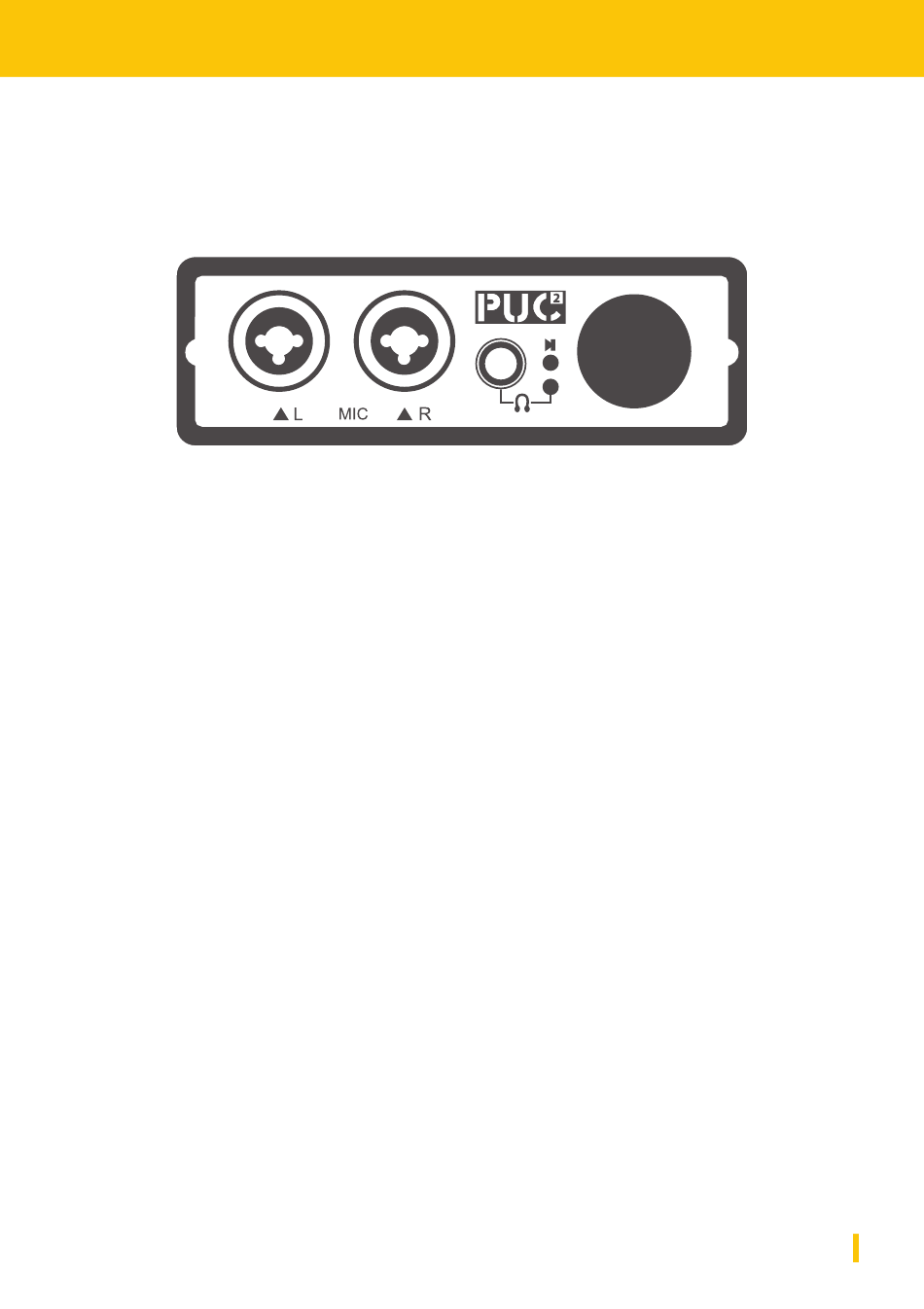

PUC2 MIC LEA Rear Panel
The combo jacks for the analog inputs allow the optional
feeding of microphone or line level sources. They are both
balanced.
Mic Input (XLR)
Microphones will
connect to the
XLR variant.
The microphone
input will be
muted when an
AES-3 signal is
present on the
front panel
connector!
Volume Control
The control acts on either the headphone or the monitor
output. Switching is done by pressing the knob, the two
LEDs next to it indicate which output is being controlled.
Line Input (jack)
Line level signals
will connect to
the combo jack
via a 1/4" jack
plug variant. The
input is balanced
and allows levels
of up to +18dBu.

PUC2 Mic LEA

Headphone Out
The headphone
output is on a 1/4"
jack connector.
The high-quality
A/B amplifier also
allows to use high
impedance of
headphones.
