THE FRAME HOLDERS

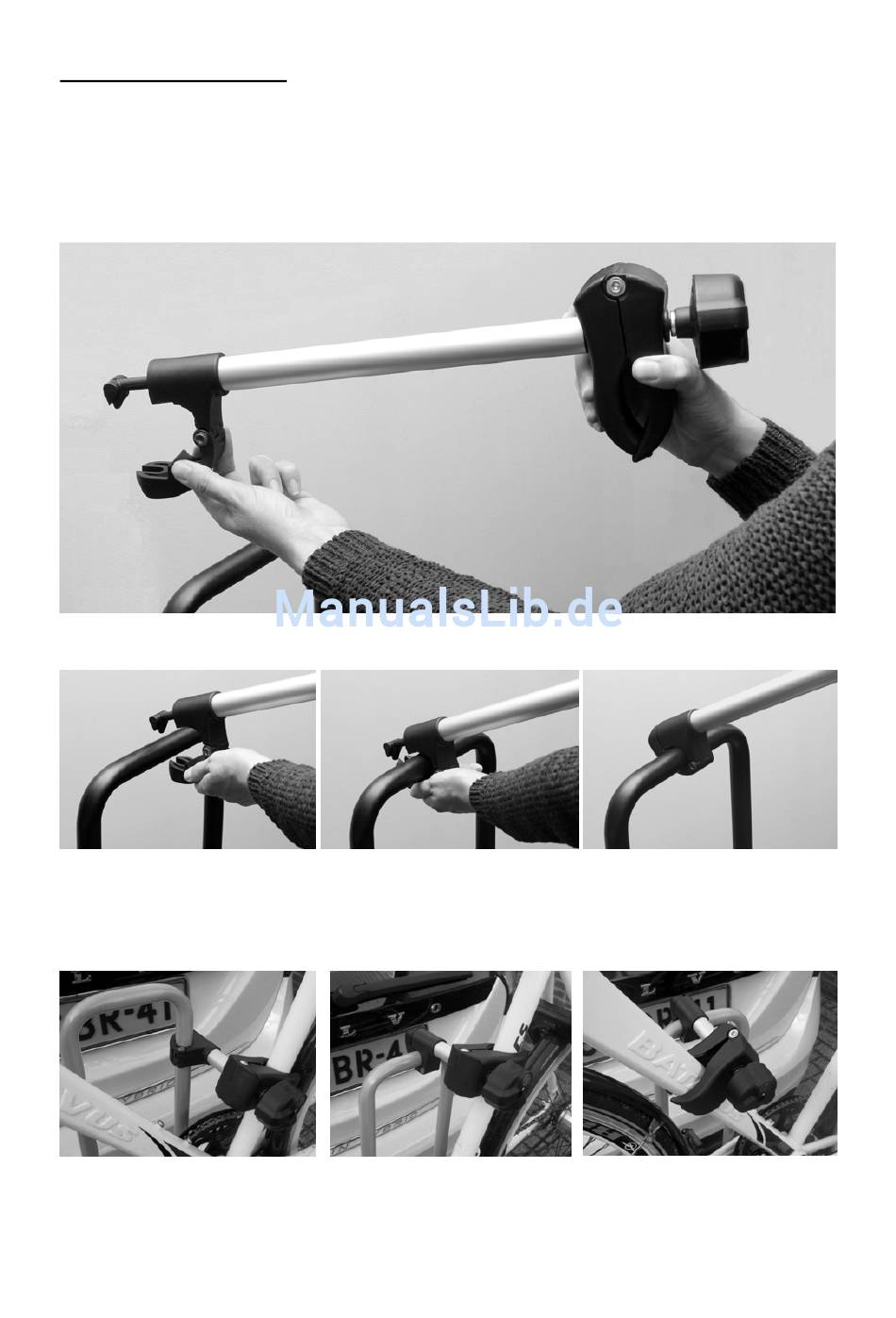

The frame holders supplied are easy to separate from the U-tube of the bicycle
carrier and therefore easy to position:
Turn the locking knob (1) quite a bit loose.
Squeeze by hand the two plastic clips to each other (2).
The U-tube clamp is now open (3).
1
2
3
Attaching the frame holder to the U-tube:
The frame holders are flexible to place on the U-tube, and are also flexible to
place on your bike. Try the first time which position in your situation works best
(and most stable affirmative is). It is important to place the frame holder as high
as possible, giving maximum stability.
