G
®
PREMASGARD
The pressure sensor PREMASGARD
media. Not suitable for ammonia and freon!
The pressure sensor PREMASGARD
The pressure measuring cell is welded to the pressure sensors without a gasket.
The pressure measuring transducer converts the measurand into a standard signal of 0 - 10 V or 4...20 mA. Process connection is G ½ ".
This pressure transmitter is used in hydraulics, pneumatics, process technology, in mechanical and plant engineering.

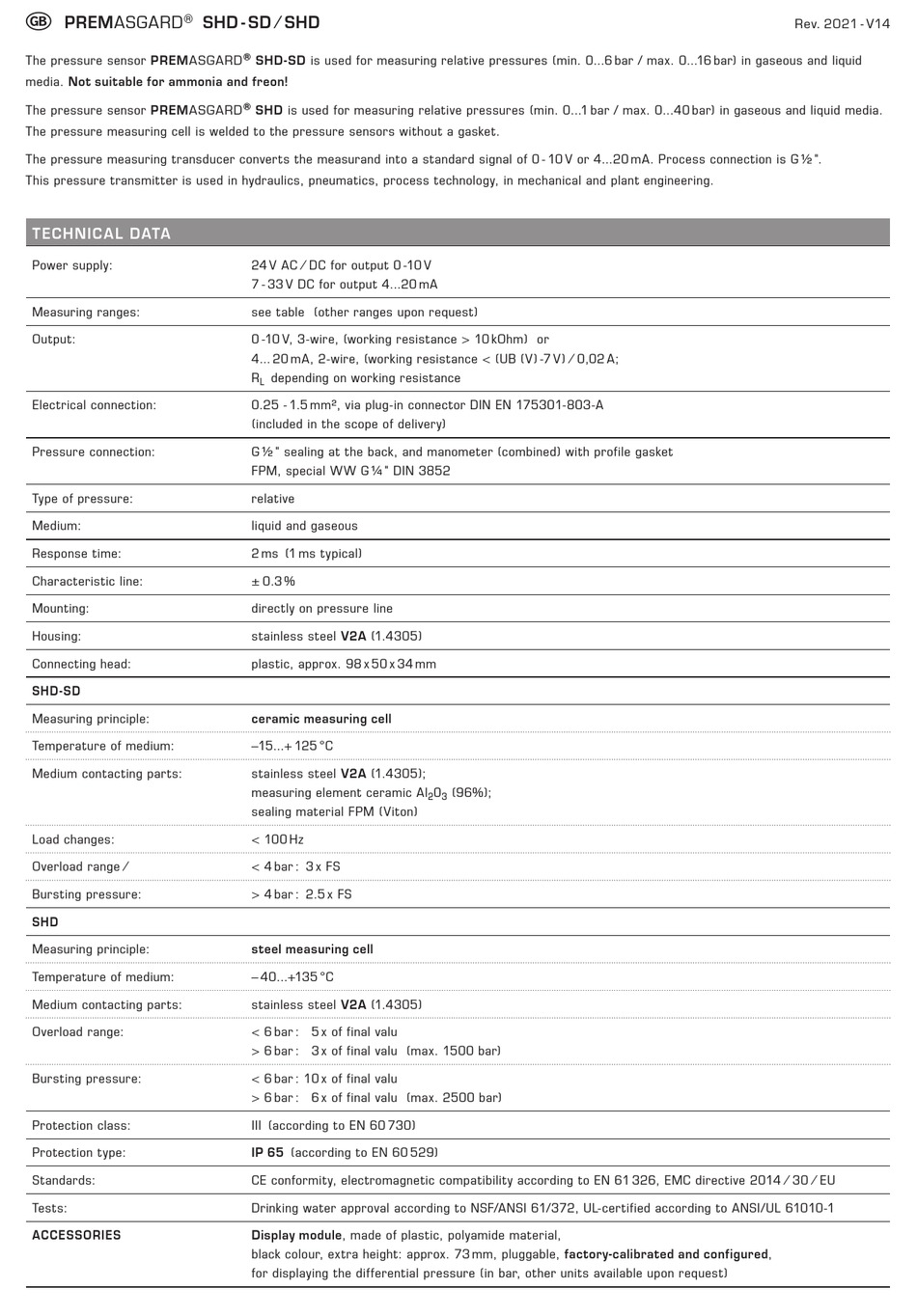

TECHNICAL DATA

Power supply:
Measuring ranges:
Output:
Electrical connection:
Pressure connection:
Type of pressure:
Medium:
Response time:
Characteristic line:
Mounting:
Housing:
Connecting head:
SHD-SD
Measuring principle:
Temperature of medium:
Medium contacting parts:
Load changes:
Overload range ⁄
Bursting pressure:
SHD
Measuring principle:
Temperature of medium:
Medium contacting parts:
Overload range:
Bursting pressure:
Protection class:
Protection type:
Standards:
Tests:
ACCESSORIES
SHD - SD ⁄ SHD
® SHD-SD is used for measuring relative pressures (min. 0...6 bar / max. 0...16 bar) in gaseous and liquid
® SHD is used for measuring relative pressures (min. 0...1 bar / max. 0...40 bar) in gaseous and liquid media.
24 V AC ⁄ DC for output 0 -10 V
7 - 33 V DC for output 4...20 mA
see table (other ranges upon request)
0 -10 V, 3-wire, (working resistance > 10 kOhm) or
4... 20 mA, 2-wire, (working resistance < (UB (V) -7 V) ⁄ 0,02 A;
R depending on working resistance
L
0.25 - 1.5 mm², via plug-in connector DIN EN 175301-803-A
(included in the scope of delivery)
G ½ " sealing at the back, and manometer (combined) with profile gasket
FPM, special WW G ¼ " DIN 3852
relative
liquid and gaseous
2 ms (1 ms typical)
± 0.3 %
directly on pressure line
stainless steel V2A (1.4305)
plastic, approx. 98 x 50 x 34 mm
ceramic measuring cell
–15...+ 125 °C
stainless steel V2A (1.4305);
measuring element ceramic Al
sealing material FPM (Viton)
< 100 Hz
< 4 bar : 3 x FS
> 4 bar : 2.5 x FS
steel measuring cell
– 40...+135 °C
stainless steel V2A (1.4305)
< 6 bar : 5 x of final valu
> 6 bar : 3 x of final valu (max. 1500 bar)
< 6 bar : 10 x of final valu
> 6 bar : 6 x of final valu (max. 2500 bar)
III (according to EN 60 730)
IP 65 (according to EN 60 529)
CE conformity, electromagnetic compatibility according to EN 61 326, EMC directive 2014 ⁄ 30 ⁄ EU
Drinking water approval according to NSF/ANSI 61/372, UL-certified according to ANSI/UL 61010-1
Display module, made of plastic, polyamide material,
black colour, extra height: approx. 73 mm, pluggable, factory-calibrated and configured,
for displaying the differential pressure (in bar, other units available upon request)
0 (96%);
2 3
Rev. 2021 - V14
