Assembly
Unpacking the Unit
Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are
found, or parts are missing, contact your dealer immediately.
Locate the hardware package. The hardware is separated into steps. Remove the tools first. Remove the
hardware for each step as needed to avoid confusion.

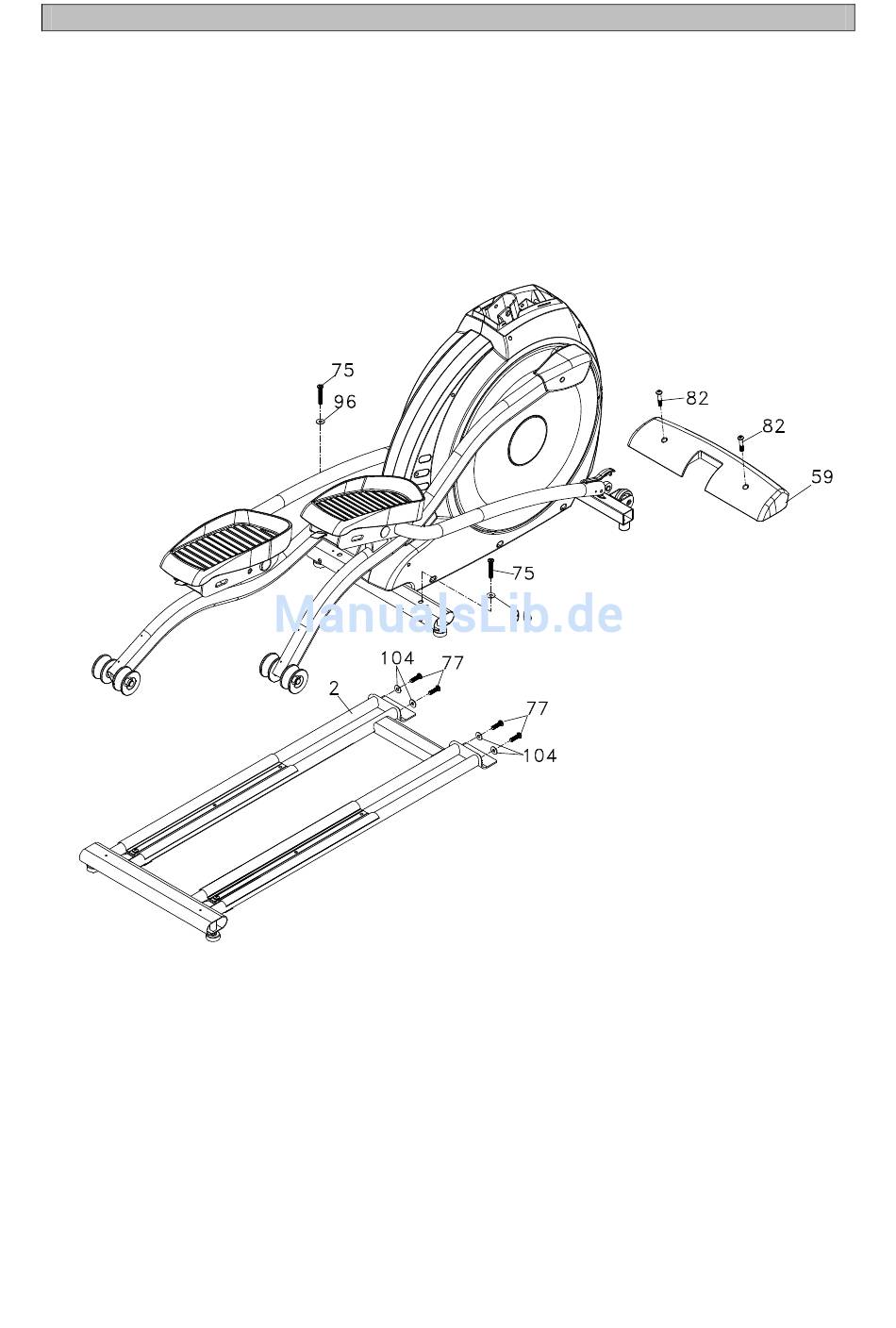

Step 1
REAR RAIL ASSEMBLY
1. Put the 2pcs of 3/8"×19×1.5T Flat Washers (96) on the 2pcs of 3/8"×2-1/4" Hex Head Bolts (75) and
hand-tighten them, through the Top of the Rear Stabilizer Tube (Main Frame), into the Rear Assembly
(2) by using the 13/14 m/m Wrench (124).
2. Put the 4pcs of 3/8"×23×2T Curved Washers (104) on the 4pcs of 3/8"×3-3/4" Hex Head Bolts (77) and
hand-tighten them through the Front of the Rear Stabilizer Tube (Main Frame), into the
(2) by using 13/14 m/m Wrench (124).
3. Then install Front Stabilizer Cover (59) with 2pcs of M5×15 m/m Phillips Head Screws (82) by using the
Phillips head screw driver (126).
8
Rail Assembly
